Description

Price

-

Transmission Ass'y (Fast Ratio)

619230078

$2,149.99

1

Countershaft Ass'y | Gear Box 1.98

619230009

$621.51

2

Oil seal

619230010

Unavailable

3

Main Shaft Ass'y | Gear Box 1.98

619230053

$507.66

4

Reverse Shaft Ass'y (Fast Ratio) | Gear Box 1.98

619230071

$586.89

5

Fork, Forwards

619230055

$140.74

6

Fork, reverse

619230015

Unavailable

7

Shaft

619230016

Unavailable

8

Spring

619230017

$14.34

9

Shifting Drum

619230056

$210.74

10

Oil seal This part replaces 619230052.

619230019

Unavailable

11

Bushing

619230020

$9.37

12

Locking lever

619230021

$57.66

13

Middle gear

619230022

$219.20

14

Lower gear

619230023

$406.89

15

Magnetic Cap

504152821

Unavailable

16

Gearbox Cover Rh This part replaces 504153194.

504153477

Unavailable

17

Inside Cover

504153243

Unavailable

18

Oil Plug

619230027

$40.74

19

O-Ring

619230028

$4.28

20

Screw

619230029

Unavailable

21

Washer

619230030

$7.82

22

Oil seal

619230031

$19.20

23

SCREW M6 X 20 - Call your local BRP dealership

619230033

Unavailable

24

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Allen Screw M8 x 10

619230037

$5.89

27

Allen Screw M10 x 16

619230038

$3.92

28

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

29

Seal Ring

619230047

$3.92

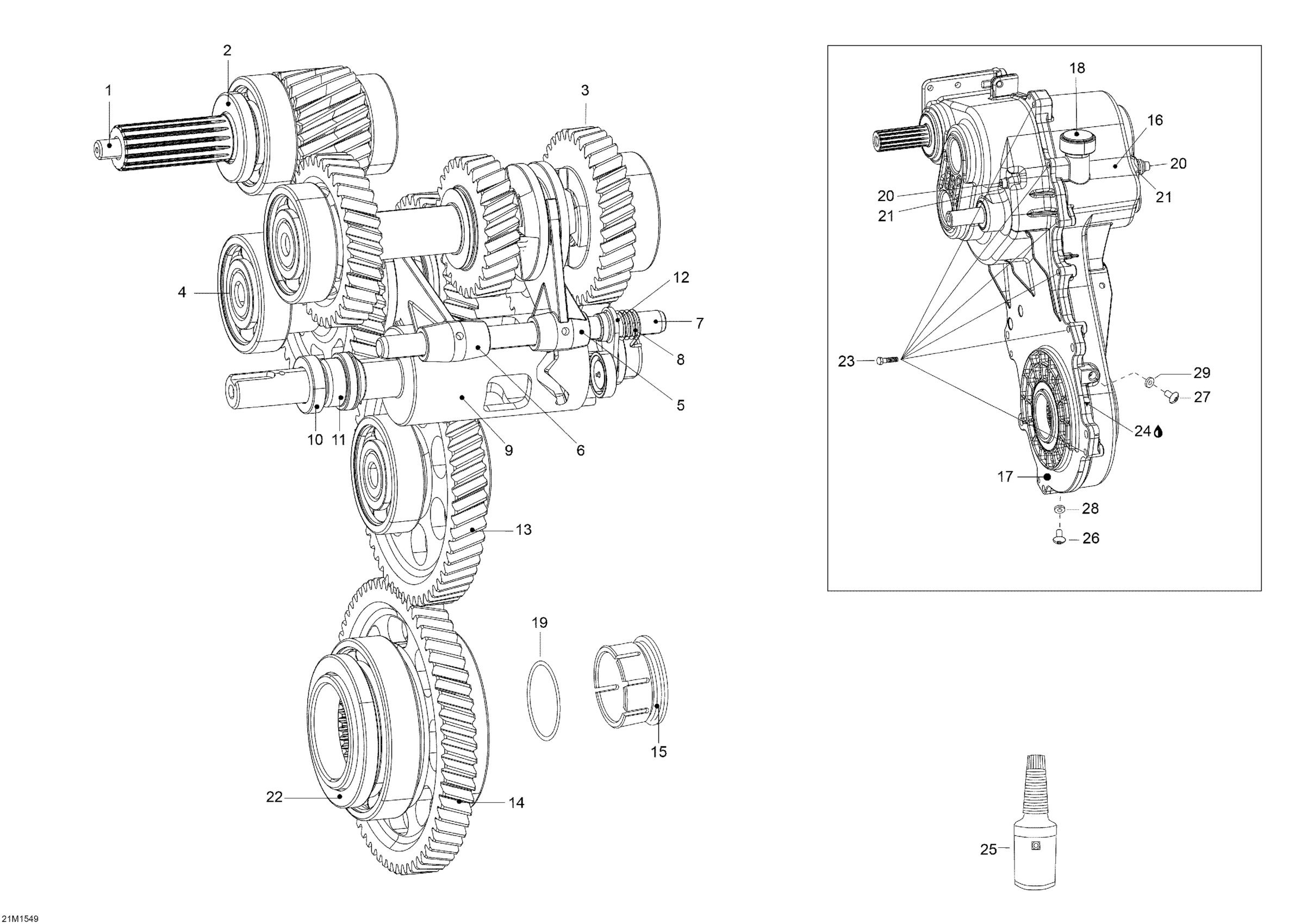

Ski-Doo Skandic SWT 600 E-TEC, 2015 Transmission _21M1549 Diagram

Oil seal

Fork, reverse

Shaft

Oil seal This part replaces 619230052.

Magnetic Cap

Gearbox Cover Rh This part replaces 504153194.

Inside Cover

Screw

SCREW M6 X 20 - Call your local BRP dealership

Sealing Compound Loctite 5366 310Ml

Not Available As Spare Part - Friction Washer

Gasket-ring - Call your local BRP dealership
