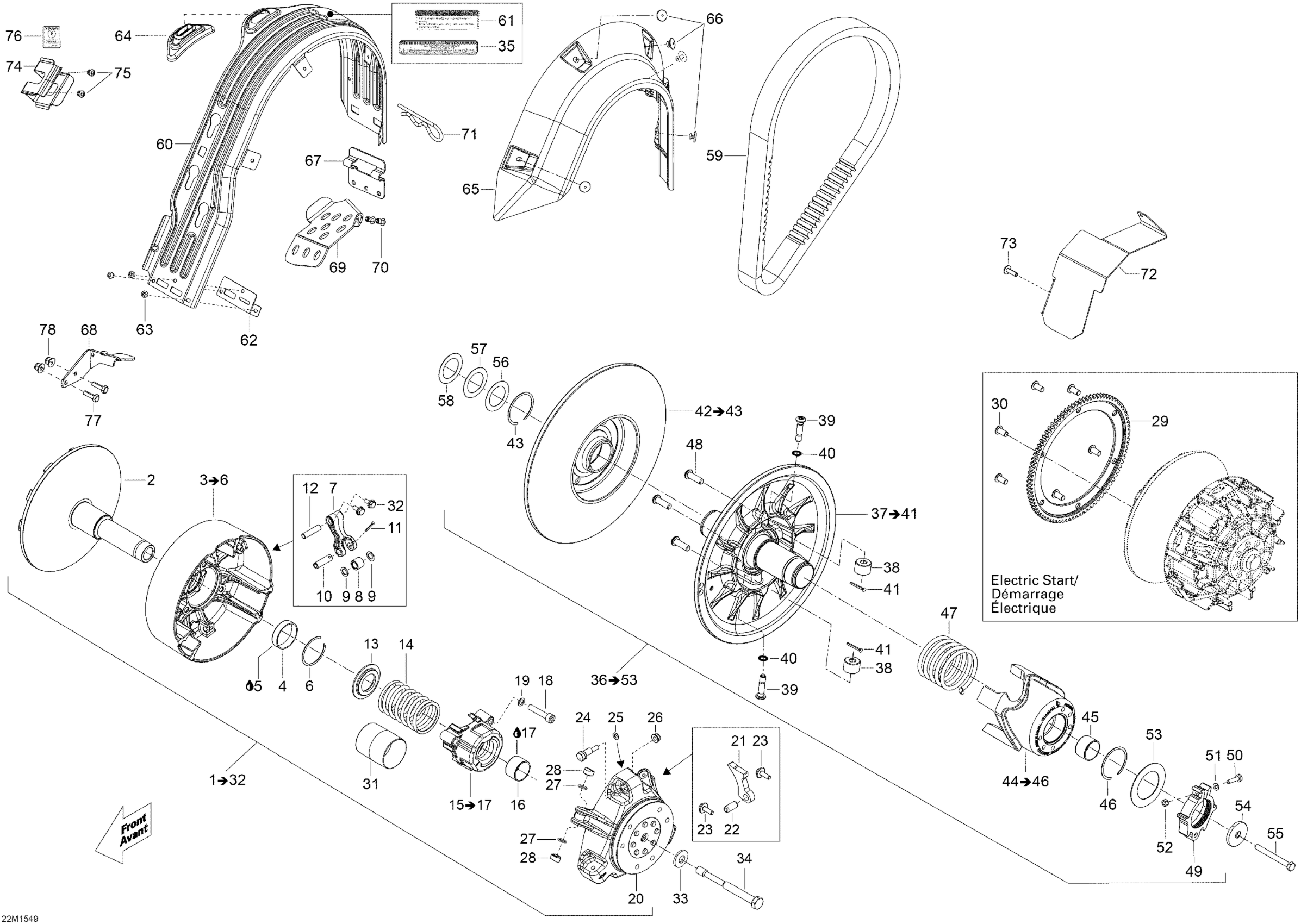

Ski-Doo Skandic SWT 600 E-TEC, 2015 Pulley System _22M1549 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417222937

$226.12

3

Sliding Flange Ass'y | Includes 10b to 10e

417222181

$198.43

4

Bushing

417222758

$20.74

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Circlip

293370037

$3.02

7

Lever | Includes 10f to 10g

417222671

$32.28

8

Roller

417222947

$19.97

9

Stopper Washer

417004302

$15.99

10

Pin

417222594

$14.11

11

Cotter Pin

250400060

$1.60

12

Lever Axle

417223164

$4.25

13

Spring Seat

417222312

$8.28

14

Tra Spring

414993000

$14.75

15

Spring Cover Ass'y | Includes 10r to 10t

417007500

$46.12

16

Bushing

417009204

$16.12

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Socket Head Screw M8 X 1.25 X 40

205084044

$2.80

19

Lock Washer 8 mm

250200009

Unavailable

20

Governor Cup Ass'y

417223669

$456.89

21

Ramp 600

417222444

$32.28

22

Spring Pin M10 X 22

250400050

$2.38

23

Hex. Flange Screw M6 X 18, Scotch Grip

250000418

$3.26

24

Calibration Screw

417223501

$27.66

25

Washer

417005600

$3.86

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

27

O-Ring

732401030

$0.95

28

Slider Shoe

417223271

$8.59

29

Ring Gear_Starter This part replaces 417223738.

417225070

Unavailable

30

Hex. Flange Screw M8 X 1.25 X 16

250000533

$2.37

31

Guard

417009205

$16.89

32

Hex. Flange Screw M6 X 12, Scotch Grip

250000412

$3.86

33

Conical Spring Washer M14

250200144

Unavailable

34

Drive Pulley Bolt

417120000

$63.82

35

Decal English

516005503

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Fixed Flange Ass'y

417127466

$429.20

38

Roller

417127189

$44.58

39

Pivot Stud

417127294

Unavailable

40

Lock Washer 8 mm

250200009

Unavailable

41

Spring Pin M3 X 30

250400063

$1.74

42

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

43

Circlip

293370049

Unavailable

44

Cam Ass'y

417127459

Unavailable

45

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

46

Circlip

293370049

Unavailable

47

Spring, White

417127243

$42.28

48

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

49

Calibration Ass'y

415129604

Unavailable

50

Socket Screw M5 X 25

205052544

$1.34

51

Flat Washer M5

234051410

Unavailable

52

Elastic Stop Nut M5

232551414

Unavailable

53

Washer

417127155

Unavailable

54

Strength Washer

517302322

$11.09

55

Hex. Cap Screw M8 X 75

207287544

$4.24

56

Spacer

417300252

$5.17

57

Spacer

417300265

$2.12

58

Shim

504112000

$6.05

59

Drive Belt

417300551

Unavailable

60

Belt Guard

417300357

$86.12

61

Security Label, Belt Guard

516006900

Unavailable

62

Reinforcement

417300380

$5.17

63

Avex Rivet

390909200

Unavailable

64

Guide

417300381

$9.23

65

Side Protector

417300356

$13.25

66

Pop Rivet 3/16"

293150103

Unavailable

67

Belt Guard Bracket | Package SWT

417300413

$7.11

68

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

69

Brake Hose Cover | Package SWT

518327035

$11.02

70

Rivet Hucklok

293150163

$2.82

71

Hair Pin

114045200

Unavailable

72

Air Duct | North America

417300468

$46.89

73

Torx Screw M6 X 20

250000722

Unavailable

74

Bracket

517281905

Unavailable

75

Avex Rivet

390909100

$0.29

76

Belt Decal, English

516005511

Unavailable

77

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

78

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
