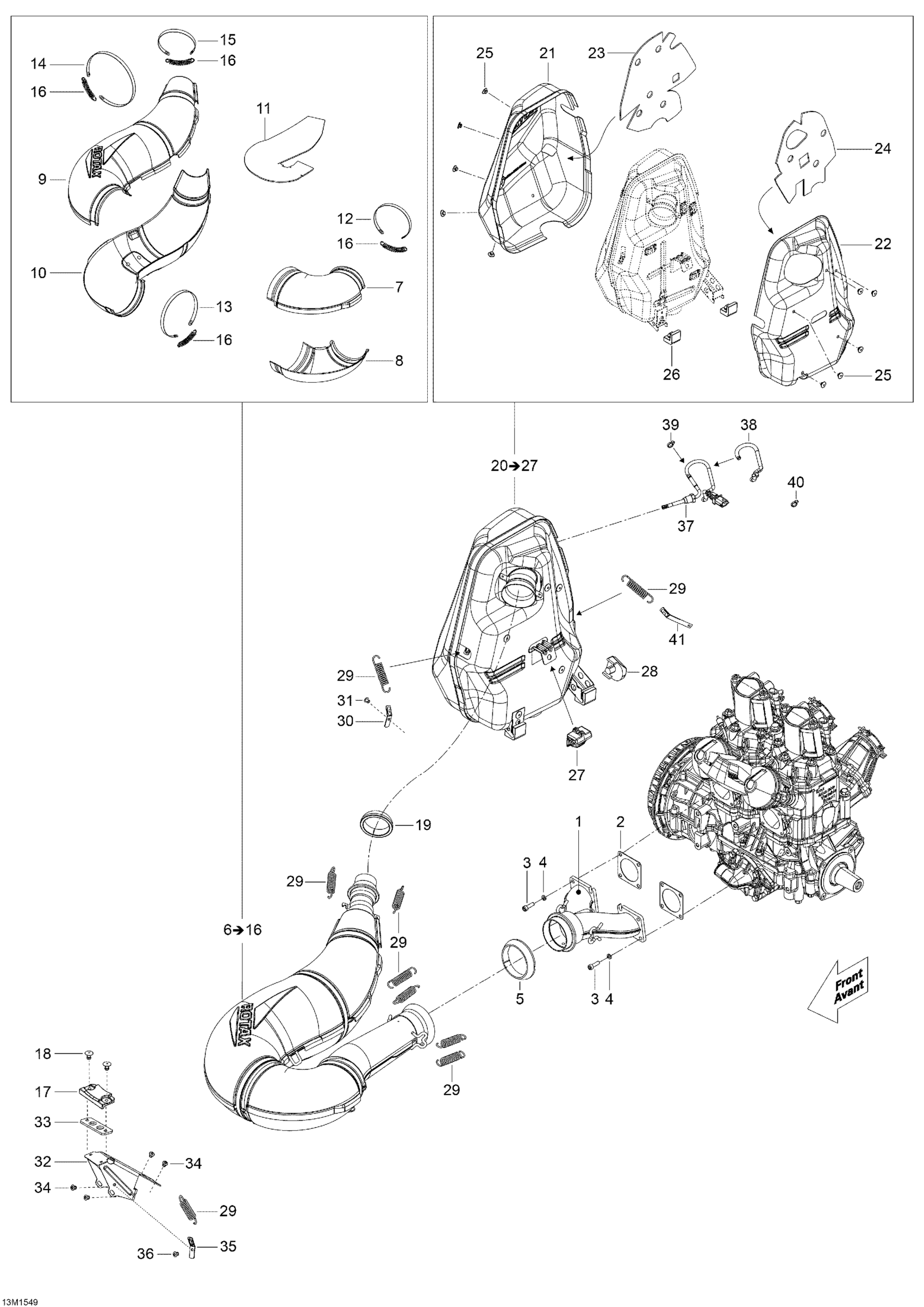

Ski-Doo Skandic SWT 600 E-TEC, 2015 Exhaust System _13M1549 Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673420.

420673421

$269.97

2

Gasket

420850552

$7.92

3

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.60

4

Washer

514053953

$0.75

5

Exhaust Gasket

514053487

$26.12

6

Tuned Pipe Ass'y

514055027

$664.58

7

Front Upper Half Enveloppe

514054992

$38.43

8

Front Lower Half Enveloppe

514054993

$38.43

9

Rear Upper Half Enveloppe

514055039

$67.66

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$53.05

11

Insulating Wool

514054487

$19.20

12

Retaining Strap

514054408

$10.55

13

Retaining Strap

514054409

$10.55

14

Retaining Strap

514054410

$10.55

15

Retaining Strap

514053499

$8.35

16

Spring

514053643

$6.20

17

Bumper

514054275

$14.65

18

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

19

Exhaust Gasket

514054174

$27.66

20

Muffler Ass'y | Includes 400 to 400f

514055025

$738.43

21

RH Deflector

514054985

$54.58

22

LH DEFLECTOR - Call your local BRP dealership

514055029

Unavailable

23

RH Insulating Wool

514054711

$18.43

24

LH Insulating Wool

514054299

$19.20

25

Pop Rivet 3/16”

390910000

$0.48

26

Lower Stopper

514054529

$17.66

27

Upper Stopper

514054606

$14.92

28

Rubber Bumber

514055070

$16.89

29

Spring

415107100

$6.20

30

Spring Bracket, 5mm hole

514054974

$6.28

31

Pop Rivet 3/16"

390402200

$0.26

32

Exhaust Muffler Support

514054767

$18.43

33

Riser Shim

514054806

Unavailable

34

Hemlock Rivet, 6.5 mm

293150096

$3.17

35

Spring Bracket

514053393

$11.58

36

Pop Rivet 3/16"

390402200

$0.26

37

Temperature Sensor

514054856

$119.57

38

Tubing 6 Mm 3000Mm Long

219704425

$13.14

39

Tie Wrap 94 mm | 4X4

293750001

$0.83

40

Tie-Rap 180 mm

414115200

$0.09

41

Spring Bracket

514054846

$4.34
