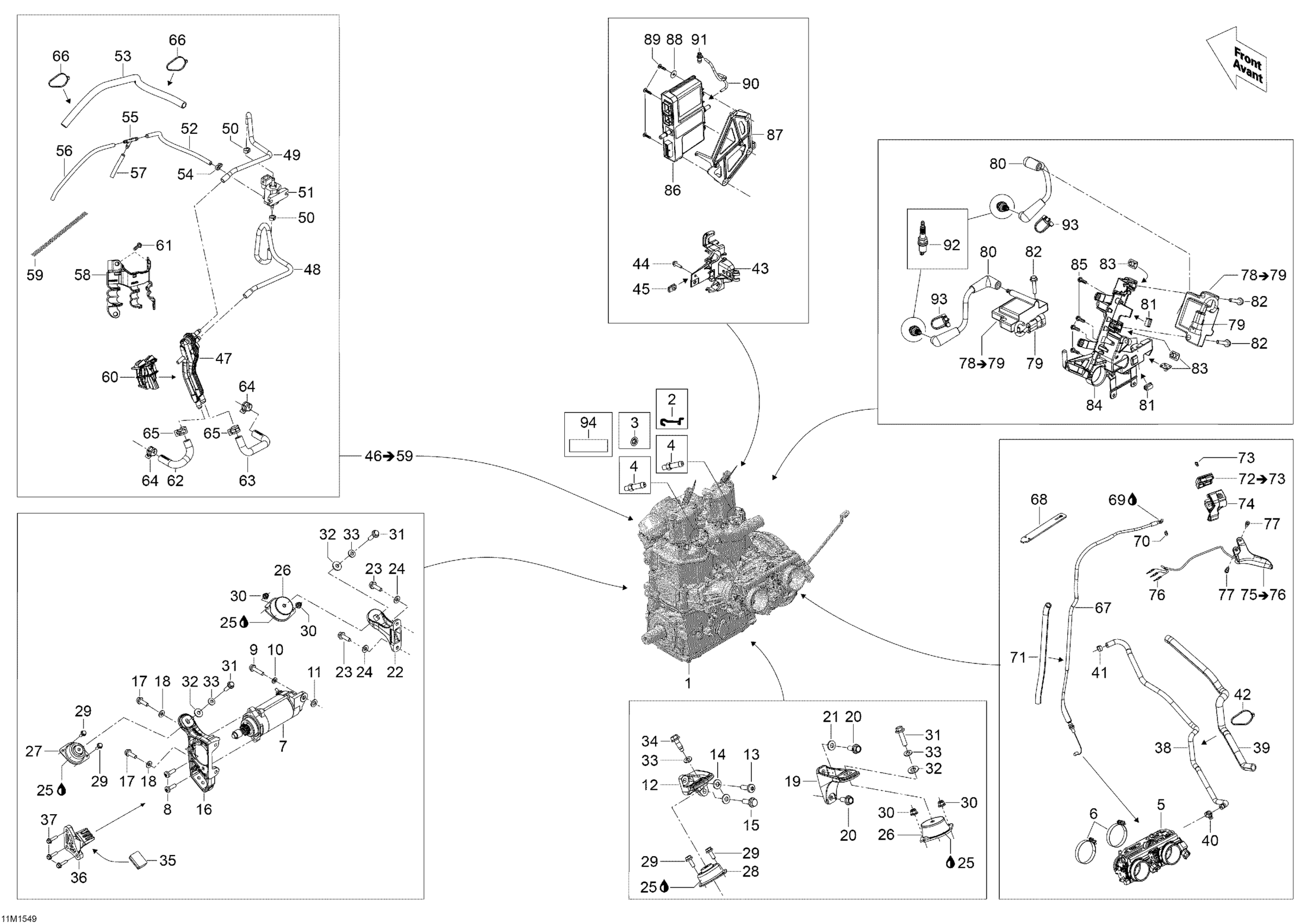

Ski-Doo Skandic SWT 600 E-TEC, 2015 Engine And Engine Support _11M1549 Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Locker

515177770

$2.14

3

Push Nut

732610072

Unavailable

4

Hose Nipple

420924724

Unavailable

5

Throttle Body

420889201

$1,228.43

6

Gemi Clamp

293650158

$8.34

7

Starter

515178473

$319.49

8

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

9

Hex Flange Screw M8 X 35, Scotch Grip

207583544

$4.28

10

Flat Washer With Teflon 8 mm

250200008

Unavailable

11

Washer

515176500

Unavailable

12

Rear Support, PTO

512060478

$29.97

13

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

14

Conical Spring Washer M8

234281474

$1.25

15

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

16

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

$76.12

17

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

18

Conical Spring Washer M8

234281474

$1.25

19

Rear Support, MAG

512060559

$29.97

20

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

21

Conical Spring Washer M8

234281474

$1.25

22

Front Support, MAG

512060469

$31.51

23

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

24

Conical Spring Washer M8

234281474

$1.25

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Rubber Mount

512060729

$69.97

27

Rubber Mount

512060387

$42.28

28

Rubber Mount

512060448

$42.28

29

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

31

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

32

Yellow, Washer

503183200

Unavailable

33

Conical Spring Washer M8

234281474

$1.25

34

Hex. Flange Screw M8 X 1.25 X 25

250000796

$1.74

35

Stopper

512060627

$9.31

36

Stopper Support

512060576

$28.43

37

Hex. Flange Screw M6 X 25

207562544

$1.39

38

FORMED HOSE OUTPUT TB - Call your local BRP dealership

509000793

$39.97

39

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

40

Tridon Gear Clamp

293650172

$2.68

41

Crimp Clamp, 15.3-706R

293650047

Unavailable

42

Tie Wrap 368 mm

293750008

$0.85

43

Solenoid Support

512060298

$12.52

44

Hex.Flange Screw M5 X 20

207652044

$1.56

45

Panel Nut M5 X 0.8

250000958

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

Manifold

512060692

$43.05

48

Polyurethane Hose 10000Mm Long

219704410

Unavailable

49

Polyurethane Hose 10000Mm Long

219704410

Unavailable

50

Crimp Clamp

293650234

$5.22

51

Solenoid Valve

270600005

$39.62

52

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

53

Was 409901700 Tubing (9 mm)

219704399

Unavailable

54

Tie Wrap 94 mm | 4X4

293750001

$0.83

55

T-Fitting

293710068

$6.59

56

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

57

Was 420660574 Pressure Hose 280 mm

219704352

Unavailable

58

Hose Support

512060827

$2.06

59

Spring | Not Shown

512060934

$81.51

60

Manifold Support

512060769

$10.52

61

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

$1.61

62

LH Formed Hose

512060695

$7.80

63

RH Formed Hose

512060694

$7.80

64

Norma Spring Clamp

293650214

$15.35

65

Crimp Clamp, 15.3-706R

293650047

Unavailable

66

Tie Wrap 94 mm | 4X4

293750001

$0.83

67

Throttle Cable

512060633

$106.12

68

Rubber Strap

293850117

$7.35

69

Not Available As Spare Part - Friction Washer

Unavailable

70

Circlip

414274500

Unavailable

71

Was 409901700 Tubing (9 mm)

219704399

Unavailable

72

Upper Housing

512060859

Unavailable

73

Socket Set Screw M8 X 10

414440800

$4.00

74

Lower Housing

512060860

Unavailable

75

Handle Ass'y

512061250

$117.66

76

Male Terminal

515175232

$1.49

77

Flange Screw

732601143

$4.02

78

Ignition Coil

512060953

$129.97

79

Housing

710000568

Unavailable

80

Ignition Cable, 177mm long

512061126

$27.66

81

Clip

710000992

$4.00

82

Hex. Flange Screw M6 X 1.0 X 30 | Not Shown

250000253

$2.18

83

Nut Welded, M6

293100003

Unavailable

84

Ignition Coils Support

512060888

$10.52

85

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

86

Calibrated Module

512060780

$769.99

87

Calibrated Module Support

512060858

$12.52

88

Flat Washer

250200040

$1.82

89

Truss Head Torx Screw K50 X 20

250000297

$1.74

90

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

91

Male Connector

414814100

$2.18

92

Spark Plug NGK PZFR6F This part replaces 415129375.

415130430

Unavailable

93

Clamp

512060993

Unavailable

94

Aluminum foil

44110

Unavailable
