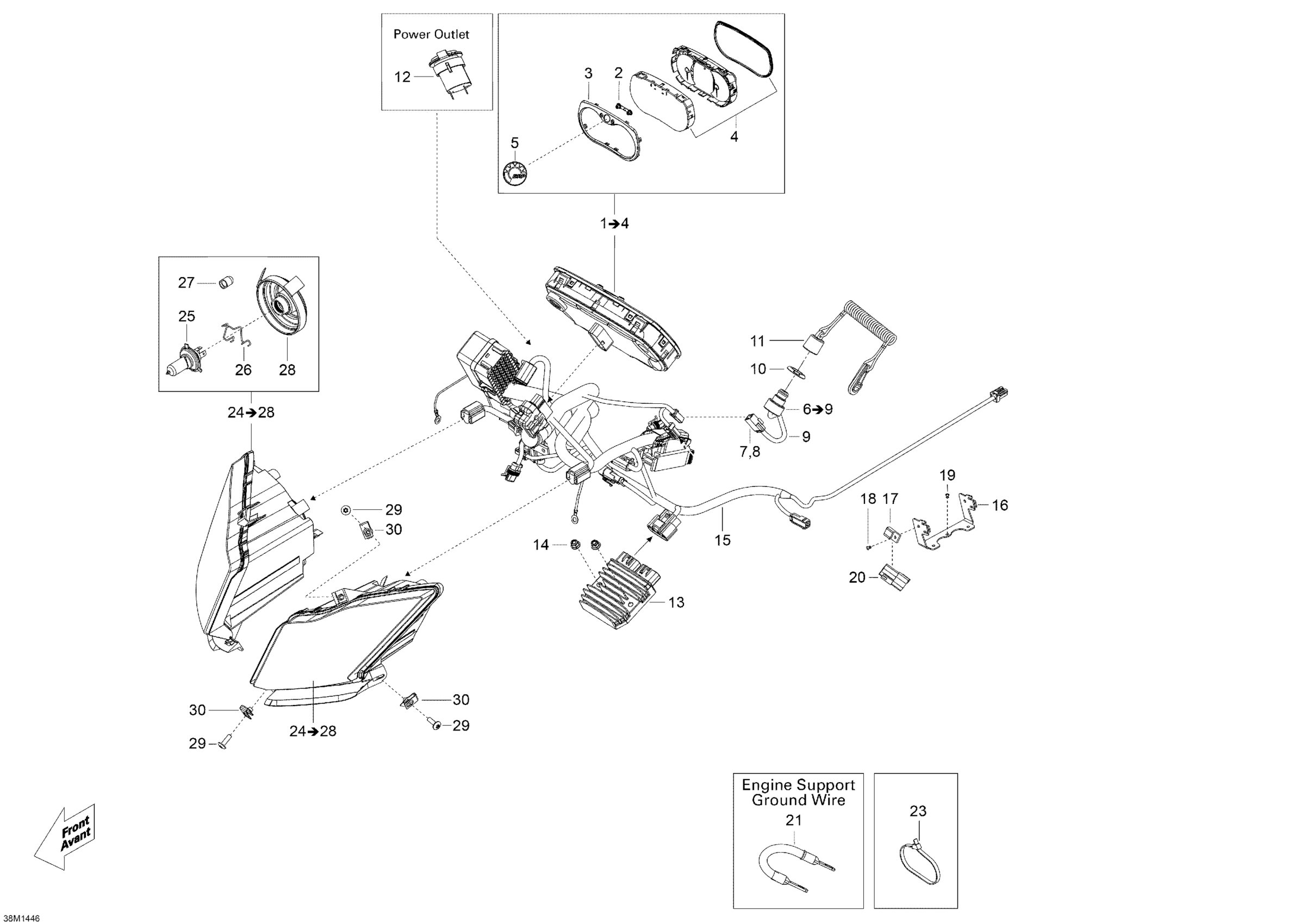

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Electrical System Diagram

#

Description
Price

1

Indicator

515177911

$499.22

2

Speedometer Button | XTP

415129355

$13.52

3

Gauge Ring

415129348

$11.36

4

Lens | XTP

415129349

$22.36

5

BRP Logo 20MM x 2MM | XTP

516006224

$11.54

6

DESS Switch

515177249

$102.96

7

Male Terminal

515175232

$1.45

8

Male Housing, 3 Circuits

515175494

$14.90

9

Tubing 12 mm

409902000

Unavailable

10

Safety Nut (DESS Switch)

278002963

$3.12

11

DESS

515178284

$79.07

12

DC Outlet

710001248

$35.79

13

Voltage Regulator | Package-DPS, Model-Europe

710005569

$98.48

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

15

WIRING HARNESS MAIN - Call your local BRP dealership | Includes 1 To VC

515177504

Unavailable

16

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

17

Clip

270000141

$9.57

18

Avdel Rivet 3/16"

293150037

$0.54

19

Pop Rivet 3/16"

390402200

$0.30

20

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

21

Ground Wire

515176883

$26.84

23

Tie-Rap 180 mm

414115200

$0.10

23

Tie Wrap 94 mm | 4X4

293750001

$0.96

23

Tie Wrap 142 mm

293750002

$1.01

24

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$135.79

24

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$135.79

25

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$22.36

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Cap

515176498

$11.82

28

Rubber Cap Protector

219800280

$17.13

29

Torx Screw M6 X 20

250000722

$1.54

30

Panel Nut M6 X 1.0

250100198

$1.99
