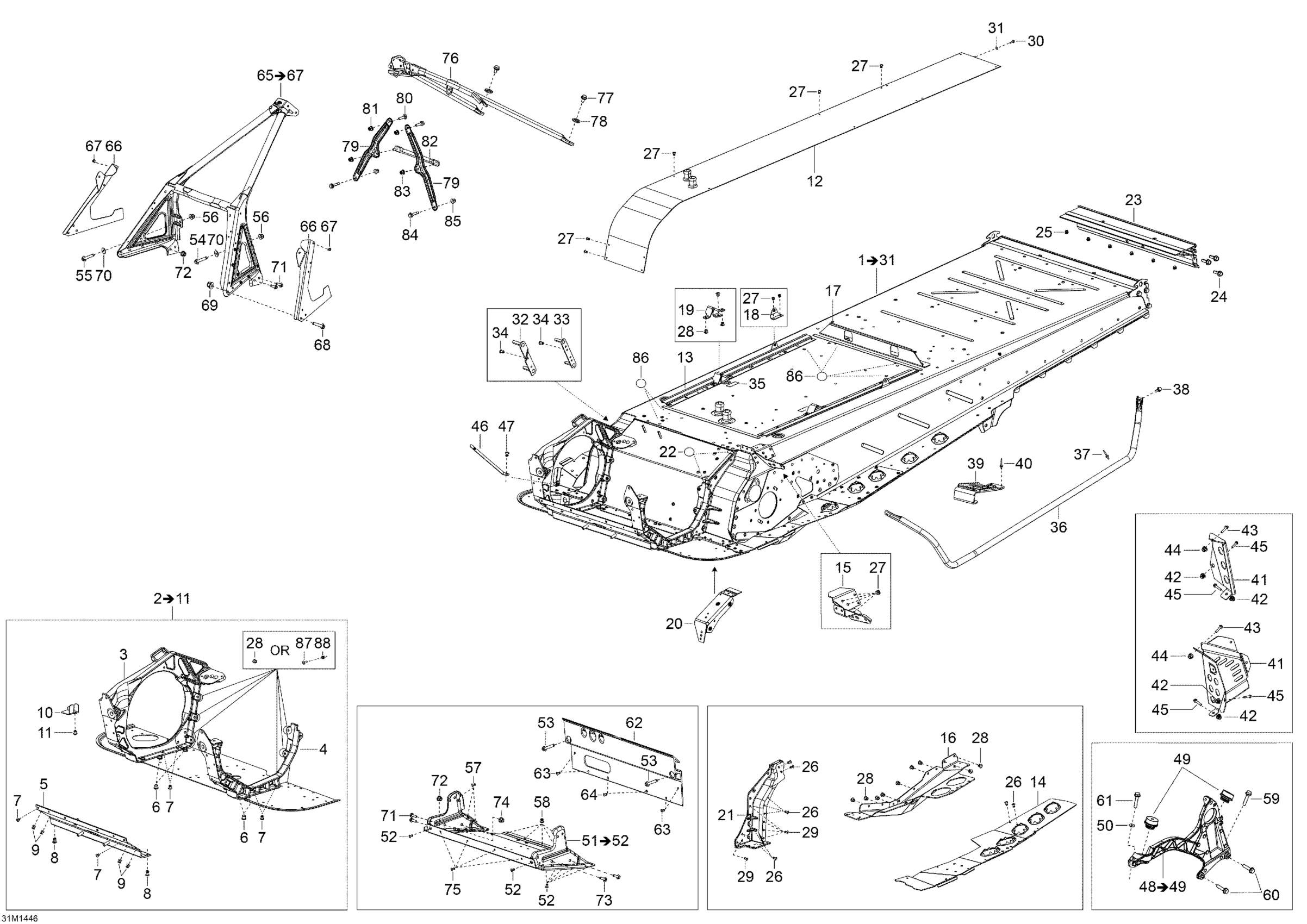

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Frame Diagram

#

Description
Price

1

Frame | Includes 1 To 31

518327547

Unavailable

2

E MODULE - Call your local BRP dealership | Includes 2 To 11

518326518

Unavailable

3

RH Side Member

518326328

$284.99

4

LH Side Member

518326330

$284.99

5

Front Member

518326198

$64.99

6

Clinch Nut Hexsert M8

605636002

$7.69

7

Avex Rivet

390909100

$1.49

8

Hemlock Rivet 6.5 mm

293150120

$7.59

9

Hemlock Rivet, 6.5 mm

293150119

$4.39

10

Muffler Support

518327185

Unavailable

11

Rivet Hucklok

293150163

$3.09

12

Tunnel Radiator | Includes 10p to 10q

509000976

$719.99

13

Fastening rail

518326107

$18.49

14

FOOTREST LH - Call your local BRP dealership

518327481

Unavailable

14

Footrest RH

518327482

Unavailable

15

Fastening Bracket

518327884

$27.99

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

18

Seat Box Bracket

518327457

$32.99

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

19

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

20

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

21

LH Frame Corner

518325643

$52.99

21

RH Frame Corner

518325644

$52.99

22

Adhesive Patch

518325560

$4.69

23

Rear Profile

518328749

$234.99

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.99

25

Hemlock Rivet, 6.4 mm

293150174

$7.99

26

Avex Rivet

390909100

$1.49

27

Avex Rivet

390909200

$1.49

28

Hemlock Rivet, 6.5 mm

293150119

$4.39

29

Rivet

293150183

$2.19

30

Socket Screw | Not Shown

205061244

$2.19

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Gearbox Front Plate

518326123

Unavailable

33

Gearbox Rear Plate

518326124

$17.99

34

Pop Rivet 3/16"

390402200

$1.49

35

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

36

LH Footboard Support Tube

518327595

$88.99

36

RH Footboard Support Tube

518327596

$88.99

37

Avex Rivet

390909100

$1.49

38

Hex. Flange Screw M6 x 20

207662056

$1.49

39

Footrest

520000492

$19.99

40

Avex Rivet

390909100

$1.49

41

TOE HOOK LH - Call your local BRP dealership

518327445

Unavailable

41

TOE HOOK RH - Call your local BRP dealership

518327447

Unavailable

42

Clinch Nut M6 Hexsert

605636003

$4.29

43

Hex. Flange Screw M6 x 20

207662056

$1.49

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

45

Torx Truss Screw M6 X 16

250000721

$1.69

46

SPRING BRACKET - Call your local BRP dealership

514054828

Unavailable

47

Avex Rivet

390909200

$1.49

48

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$284.99

49

Vibration Damper

512061516

$62.99

50

Conical Spring Washer M8

234281474

$1.49

51

S Module | Includes 300 to 300a

518326213

$839.99

52

Avex Rivet

390909200

$1.49

53

Hexagonal Head Screw

210262050

$2.19

54

Hex. Flange Screw M6 X 25

207662544

$1.49

55

Hex. Flange Screw M6 X 25

207662544

$1.49

56

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

57

Avex Rivet

390909100

$1.49

58

Avex Rivet

390909200

$1.49

59

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.99

60

Hex. Flange Screw M8 X 35

250000986

$2.19

61

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

62

Engine Support

518326140

$124.99

63

Avex Rivet

390909100

$1.49

64

Hemlock Rivet, 6.5 mm

293150119

$4.39

65

Front Member Ass'y | Includes 700 to 700d

518326754

$729.99

66

LH Bumper Fastener

502007077

$55.99

66

RH Bumper Fastener

502007078

$55.99

67

Avex Rivet

390909200

$1.49

68

Hex. Flange Screw M6 X 20

207662044

$2.09

69

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

70

Flat Washer

224061201

$1.49

71

Hex. Flange Screw M6 X 20

207662044

$2.09

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

73

Hex. Flange Screw M6 X 20

207662044

$2.09

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

75

Avex Rivet

390909200

$1.49

76

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

77

Hex. Flange Screw M6 x 20

207662056

$1.49

78

Not Available As Spare Part - Friction Washer

Unavailable

79

Upper Column Support

518326848

$15.99

80

Hex. Flange Screw M6 x 20

207662056

$1.49

81

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

82

Center Column Support

518326355

$22.49

83

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

84

Hex Flange Screw M6 x 25

250000522

$4.15

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

86

Adhesive Patch

518325560

$4.69

87

Hex. Flange Screw M6 X 20

207662044

$2.09

88

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49
