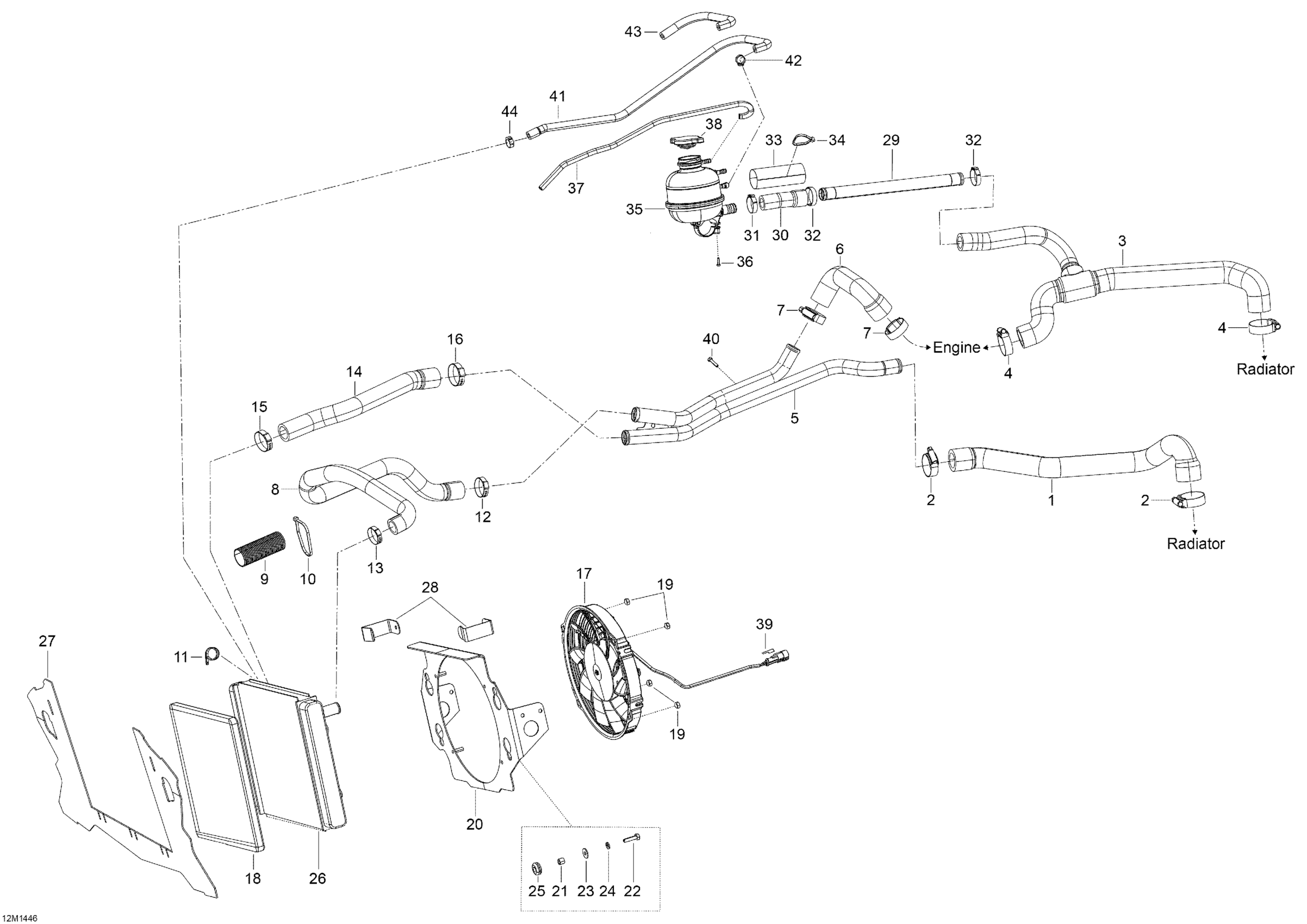

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2014 Cooling System Diagram

#

Description
Price

1

Hose

509000634

Unavailable

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership

509000805

Unavailable

4

Aba Gear Clamp, 26-38 MM

509000443

$5.68

5

Water Pipe

509000800

$105.35

6

Engine Outlet Hose

509000932

$17.66

7

Aba Gear Clamp, 26-38 MM

509000443

$5.68

8

Air Radiator Hose

509001000

$95.35

9

Tubing

28036

Unavailable

10

Tie-Rap 180 mm

414115200

$0.09

11

Clamp With Rubber D=30

605627008

$19.20

12

Aba Gear Clamp, 26-38 MM

509000443

$5.68

13

Crimp Clamp

293650099

Unavailable

14

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000707

Unavailable

15

Crimp Clamp

293650099

Unavailable

16

Aba Gear Clamp, 26-38 MM

509000443

$5.68

17

Cooling Fan

509000838

$213.05

18

Insulation

509000718

$59.20

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

Radiator support | Includes 3340 to 3340a

509000791

$91.51

21

Bushing

605453745

$11.52

22

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

23

Flat Washer 6 mm

234062410

$0.64

24

Spring Washer

20052

Unavailable

25

Grommet

709000582

$4.38

26

Radiator

509000787

$214.58

27

AIR DEFLECTOR LTS - Call your local BRP dealership

509000784

Unavailable

28

Deflector Clip

509000703

$39.97

29

PIPE - Call your local BRP dealership

509000644

Unavailable

30

HOSE - Call your local BRP dealership

509000698

Unavailable

31

Oeticker Gear Clamp, 25.6-706R

509000442

Unavailable

32

Crimp Clamp

293650099

Unavailable

33

Protector Tube

707001349

$19.20

34

Tie-Rap 180 mm

414115200

$0.09

35

Coolant Tank

509000368

$86.89

36

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

37

Hose 6 Mm 15000Mm Long

219704360

Unavailable

38

Radiator Pressure Cap

509000180

Unavailable

39

Clip

710000992

$4.00

40

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

41

BREATHER HOSE - Call your local BRP dealership

509000750

Unavailable

42

Crimp Clamp, 15.3-706R

293650047

Unavailable

43

Was 409901800 Tubing (13 mm)

219704400

Unavailable

44

Crimp Clamp, 15.3-706R

293650047

Unavailable
