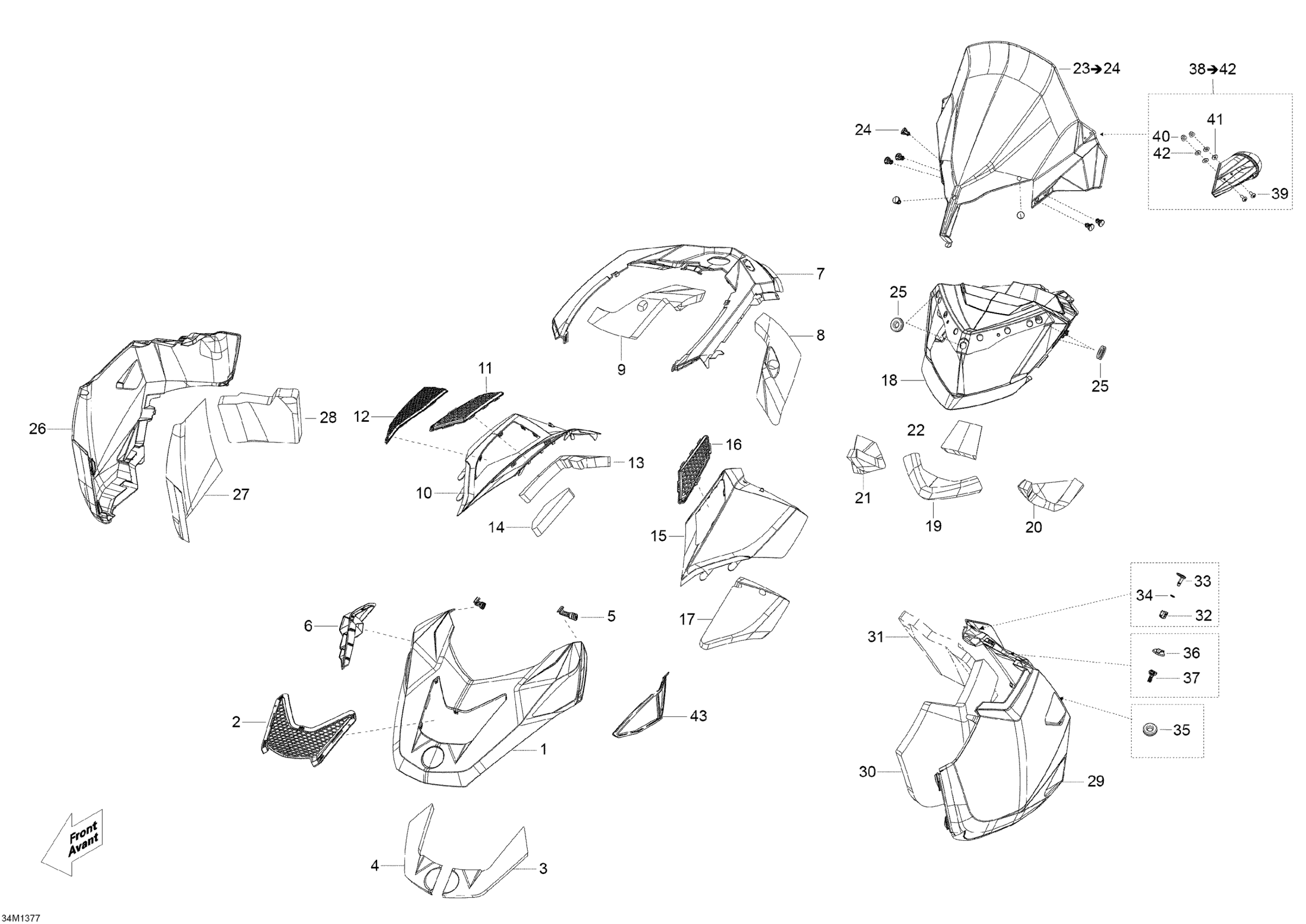

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Hood Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

$249.99

2

Hood Grille

517304843

$88.99

3

Insulator

517304330

$37.99

4

Insulator

517304214

$32.99

5

Latch Pannel

517304289

$11.99

6

Scoop Grille

517306980

$37.99

7

Black, Console

517304820

$184.99

8

INSULATOR - Call your local BRP dealership

517304317

Unavailable

9

Insulator

517304318

$49.99

10

Yellow, RH Side Access Panel | Yellow 2000

517305525

$254.99

11

RH Access Panel Grille

517304015

$36.99

12

RH Lower Acces Grille

517304016

$31.99

13

Insulator

517304311

$63.99

14

Insulator

517304312

$32.99

15

Yellow, LH Side Access Panel | Yellow 2000

517305527

$254.99

16

LH Access Panel Grille

517303893

$36.99

17

Insulator

517304313

$63.99

18

Indicator Support

517304272

$184.99

19

Insulator

517304314

$64.99

20

Insulator

517304315

$32.99

21

Insulator

517304316

$32.99

22

Insulator

517304319

$32.99

23

Windshield Ass'y

860201000

$214.99

24

Button

517304744

$2.29

25

Grommet

517303756

$4.09

26

Black, RH Side Panel

517306977

$249.99

27

Foam Right

517304709

$54.99

28

RH Rear Foam

517304310

$62.99

29

Black, LH Side Panel

517306979

$249.99

30

Foam LH

517304707

$54.99

31

LH Rear Foam

517304309

$62.99

32

Handle Fastener Quarter-Turn

517304297

$17.49

33

Quarter-Turn Handle

517304296

$17.49

34

Locking Plate

517304538

$4.69

35

Grommet

517303756

$4.09

36

Black Latch Kit | Includes 390 to 400

860200239

$16.99

37

Latch-Panel

517306057

$25.99

38

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$74.99

39

Torx Truss Screw M6 X 16

250000721

$1.69

40

Domed Nut M6

232361493

$2.09

41

Rubber Washer 5 mm

250200024

$2.29

42

Washer

20117

$6.49

43

Air Filter

508000609

$48.49
