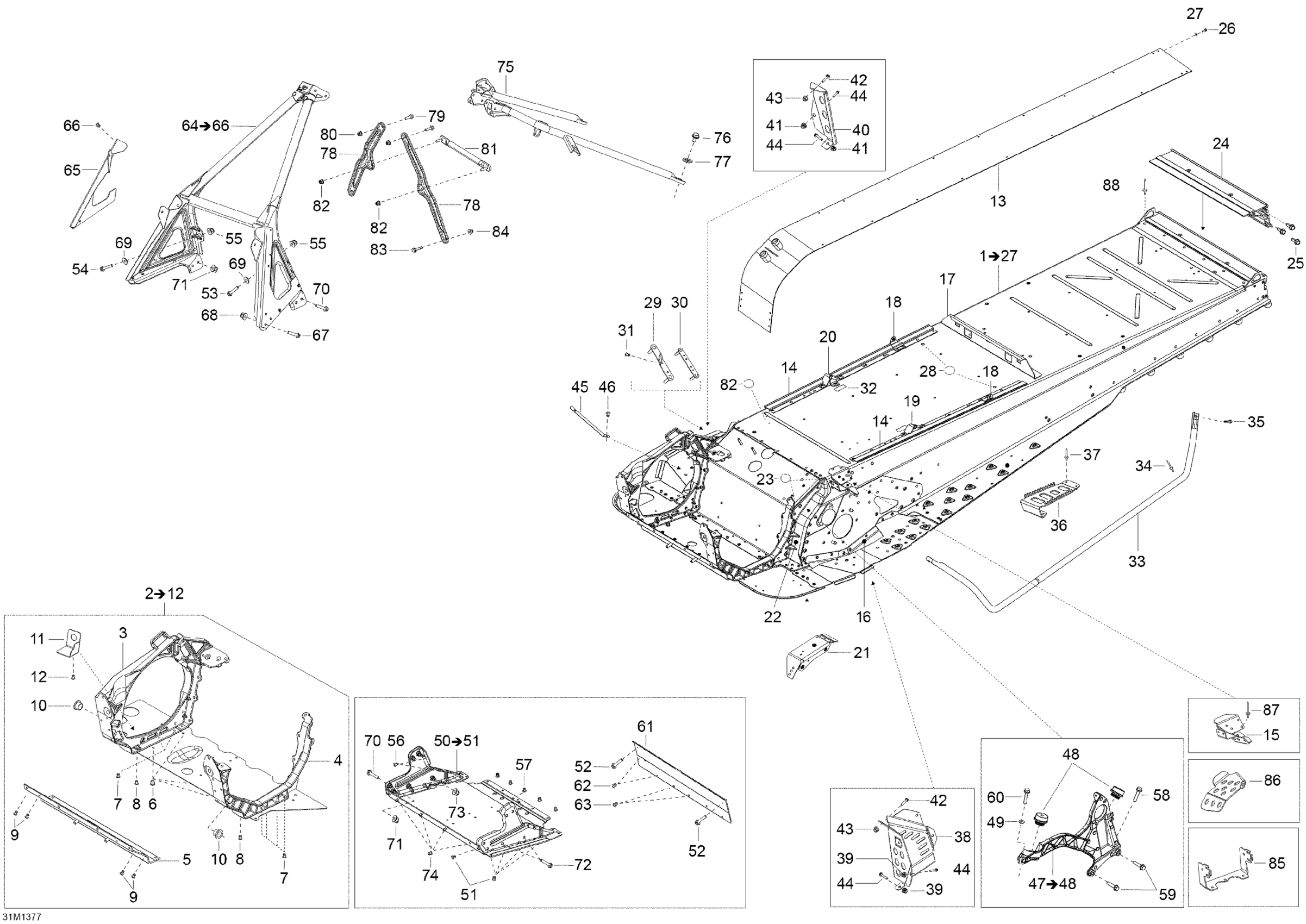

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Frame Diagram

#

Description
Price

1

Frame | Includes 1 To 27

518327038

Unavailable

2

E MODULE - Call your local BRP dealership | Includes 2 To 11

518326518

Unavailable

3

RH Side Member

518326328

$259.97

4

LH Side Member

518326330

$259.97

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518327185

Unavailable

12

Rivet Hucklok

293150163

$2.82

13

Radiator Tunnel

509000645

$766.12

14

Fastening rail

518326107

$15.35

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Seat Box Bracket

518327457

$29.97

19

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

21

Clinch Nut plate

518326430

$45.99

22

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Adhesive Patch

518325560

$4.34

24

Rear Profile

518328749

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Socket Screw | Not Shown

205061244

$2.06

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Adhesive Patch

518325560

$4.34

29

Gearbox Front Plate

518326123

Unavailable

30

Gearbox Rear Plate

518326124

$15.26

31

Pop Rivet 3/16"

390402200

$0.26

32

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

33

FOOTBOARD SUPPORT TUBE, LH - Call your local BRP dealership

518325641

Unavailable

33

FOOTBOARD SUPPORT TUBE, RH - Call your local BRP dealership

518325642

Unavailable

34

Avex Rivet

390909100

$0.29

35

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

36

Footrest

520000492

$18.43

37

Avex Rivet

390909100

$0.29

38

TOE HOOK LH - Call your local BRP dealership

518327445

Unavailable

39

Clinch Nut M6 Hexsert

605636003

$4.12

40

TOE HOOK RH - Call your local BRP dealership

518327447

Unavailable

41

Clinch Nut M6 Hexsert

605636003

$4.12

42

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

43

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

44

Torx Truss Screw M6 X 16

250000721

$1.39

45

Spring Bracket

514054846

$4.34

46

Avex Rivet

390909200

$0.29

47

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

$259.97

48

Vibration Damper

512061516

$57.66

49

Conical Spring Washer M8

234281474

$1.25

50

S Module | Includes 300 to 300a

518326213

$776.12

51

Avex Rivet

390909200

$0.29

52

Hexagonal Head Screw

210262050

$1.74

53

Hex. Flange Screw M6 X 25

207662544

$0.53

54

Hex. Flange Screw M6 X 25

207662544

$0.53

55

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

56

Avex Rivet

390909100

$0.29

57

Avex Rivet

390909200

$0.29

58

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

59

Hex. Flange Screw M8 X 35

250000986

$1.74

60

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

61

Engine Support

518326140

$116.12

62

Avex Rivet

390909100

$0.29

63

Hemlock Rivet, 6.5 mm

293150119

$4.00

64

Front Member Ass'y | Includes 700 to 700d

518326754

$674.58

65

LH Bumper Fastener

502007077

$53.05

65

RH Bumper Fastener

502007078

$53.05

66

Avex Rivet

390909200

$0.29

67

Hex. Flange Screw M6 X 20

207662044

$1.66

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

69

Flat Washer

224061201

$1.11

70

Hex. Flange Screw M6 X 20

207662044

$1.66

71

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

72

Hex. Flange Screw M6 X 20

207662044

$1.66

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

74

Avex Rivet

390909200

$0.29

75

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

76

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

77

Not Available As Spare Part - Friction Washer

Unavailable

78

Upper Column Support

518326848

$13.06

79

SCREW-HEX.FLANGE DIN.6921 - Call your local BRP dealership

207662086

Unavailable

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

81

Center Column Support

518326355

$20.74

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

83

Hex Flange Screw M6 x 25

250000522

$4.28

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

85

FUSEBOX SUPPORT - Call your local BRP dealership

515177073

Unavailable

86

Brake Hose Cover | Package SWT

518327035

$11.02

87

Avex Rivet

390909200

$0.29

88

Hemlock Rivet, 6.4 mm

293150174

$6.43
