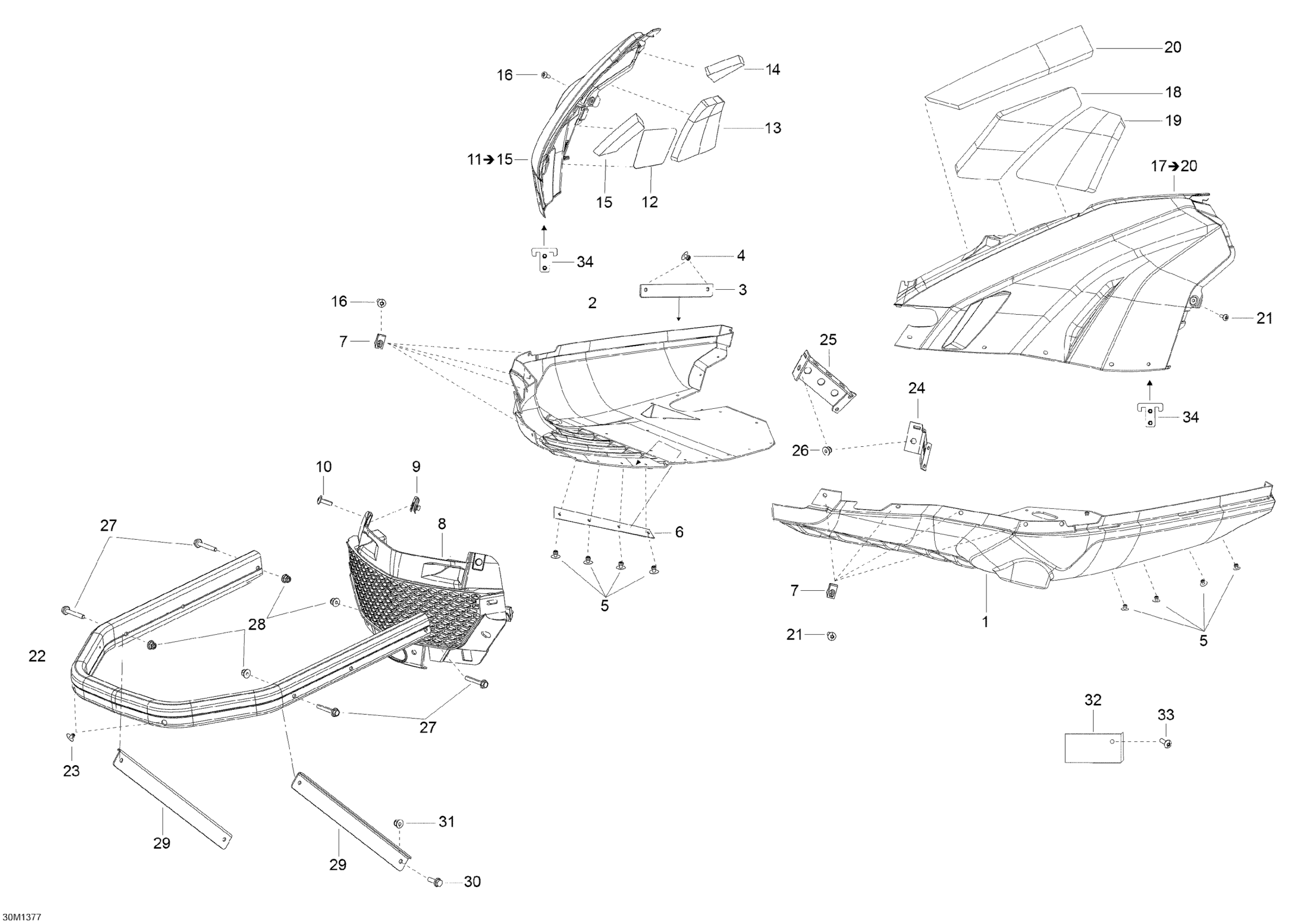

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007436

$179.97

2

BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership

502006917

Unavailable

3

Heat Isolation Plate

502007255

$5.79

4

Rivet

36005

$2.02

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

SUPPORT PLATE - Call your local BRP dealership

502007226

Unavailable

7

Panel Nut M6 X 1.0

250100198

$1.73

8

Front Grille

502007140

$89.99

9

Panel Nut M6 X 1.0

250100198

$1.73

10

Torx Screw M6 X 20

250000722

$1.34

11

Deep Black, RH Bottom Pan

502008015

$133.82

12

Insulator

502007133

$29.20

13

Insulator

502007132

$29.20

14

Insulator | Model LE, SE

502007008

Unavailable

15

Insulator | Except Package EXTREME

502007009

$17.66

16

Torx Screw M6 X 20

250000722

$1.34

17

Deep Black, LH Bottom Pan

502008017

$129.20

18

Insulator

502007088

$64.58

19

Insulator

502007131

$29.20

20

Insulator

502007185

$27.66

21

Torx Screw M6 X 20

250000722

$1.34

22

Clear Bumper

502007170

$129.20

23

Full Moon Dart 8 mm

293730041

$2.12

24

BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137.

619690082

$32.28

25

BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138.

619690081

$29.97

26

Clinch Nut M6 Hexsert

605636003

$4.12

27

Hex. Flange Screw M6 X 40

207664044

$2.18

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Bumper Support

502006927

$32.99

30

Hex. Flange Screw M6 X 20

207662044

$1.66

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

32

DRAIN HOLE COVER - Call your local BRP dealership

502007186

$15.99

33

Torx Screw M6 X 20

250000722

$1.34

34

MOUNTING PLATE - Call your local BRP dealership

502007303

$16.12
