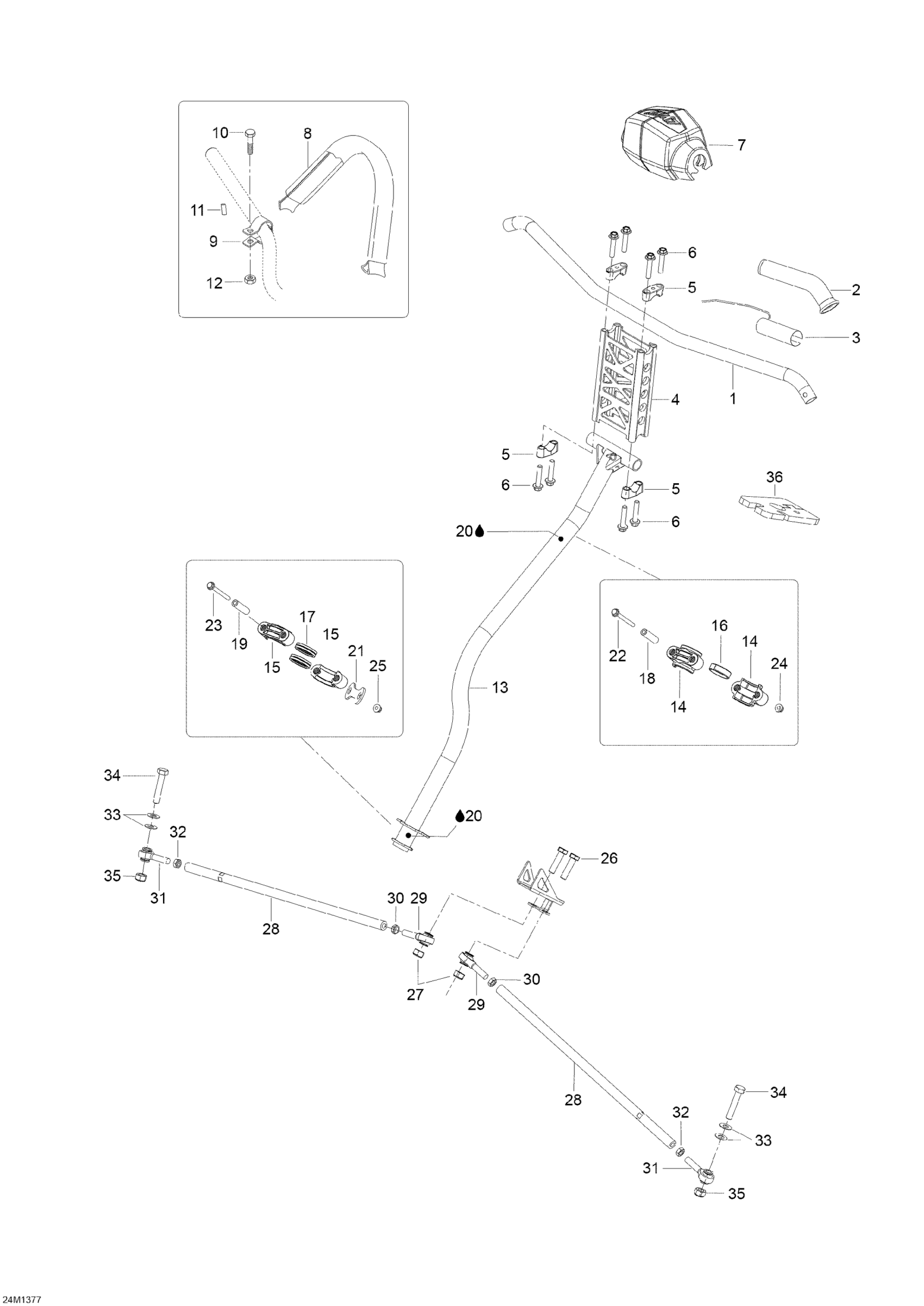

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Steering Diagram

#

Description
Price

1

Handle Bar

506152722

$154.99

2

Grip | WAKE This part replaces M5340464.

506152483

$12.49

3

Heating Element

506152467

$37.99

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

$86.99

5

Steering Support | Includes 40 to 40a

506152751

$14.49

6

Hex. Flange Screw M8 x 40

250000285

$1.49

7

Steering Pad

506152192

$59.99

8

Strap Ass'y | Package XMR

506152115

$45.99

9

Black Support Plate

506152536

$9.39

10

Hex. Flange Screw M6 X 20

207662084

$1.69

11

Bushing | Package XMR

506152156

$5.61

12

Hex. Flange Elastic Nut M6

233261494

$1.59

13

Steering Column

506152964

$204.99

14

Upper Half-Housing

506152508

$9.23

15

Lower Half-Housing

506152217

$7.62

16

Upper Anti-Vibration Gasket

506152509

$4.89

17

Lower Vibration Ring

506152518

$4.89

18

Housing Bushing

506152297

$13.49

19

Lower Housing Bushing

506152388

$17.39

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Stopper Plate

506152389

$13.49

22

Hex. Flange Screw M6 X 70

207667056

$4.49

23

Hex. Flange Screw, M8 X 65

207686544

$13.49

24

Elastic Flange Nut M6 X 1.0

233261416

$2.19

25

Hex. Flange Elastic Nut M8

233281414

$1.49

26

Hex. Screw M10 X 40

207004044

$4.89

27

Elastic Stop Nut M10

232500416

$1.99

28

Tie Rod

506152436

$62.49

29

LH Thread Ball Joint

506152081

$41.49

30

LH Threaded Hex. Jam Nut M10

250100016

$1.49

31

RH Threaded Ball Joint

506152019

$41.49

32

RH Threaded Hex. Jam Nut M10

732610010

$1.49

33

Washer

506152194

$4.69

34

Hex. Screw M10 X 45

207004544

$1.69

35

Elastic Stop Nut M10

232500416

$1.99

36

Cushion

506152404

$26.49
