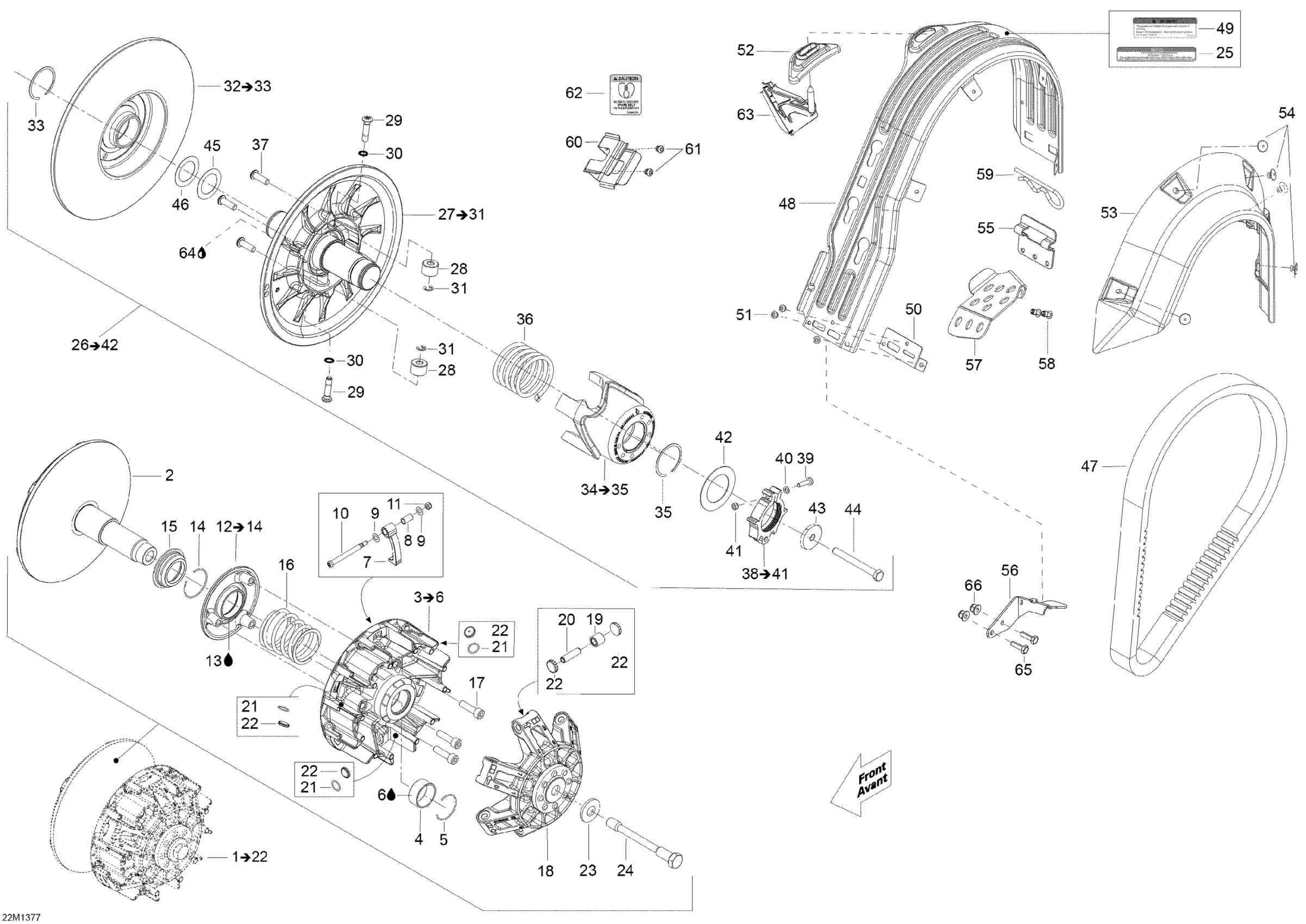

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange Ass'y

417223534

$189.99

3

Slider Flange Ass'y

417223606

$149.99

4

Not Available As Spare Parts

XXX

Unavailable

5

Circlip

293370065

$1.49

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Ramp 716 Ass'y

417223508

$38.99

8

Not Available As Spare Parts

XXX

Unavailable

9

Thrust Washer

417223255

$2.09

10

Ramp Axle

417223694

$4.99

11

Elastic Stop Nut M5

232551414

$1.49

12

Slider Adaptor Ass'y

417223615

$81.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

CIRCLIP - Call your local BRP dealership

293370063

Unavailable

15

SPRING SEAT - Call your local BRP dealership

417223155

Unavailable

16

Spring Clutch

417223314

$39.99

17

SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership

250000473

Unavailable

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223778

Unavailable

19

Roller

417223767

$7.99

20

Roller Axle

417223257

$7.09

21

O-ring

293300145

$1.49

22

Slider Shoe

417223919

$3.99

23

Spring Washer 14 mm

250200006

$7.19

24

DRIVE BOLT PULLEY - Call your local BRP dealership

417300407

Unavailable

25

Decal English

516005503

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Fixed Flange Ass'y

417127410

$399.99

28

Roller

417127189

$43.25

29

Pivot Stud

417127294

$14.99

30

Lock Washer 8 mm

250200009

$2.19

31

Spring Pin M3 X 18

250400061

$2.19

32

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$164.99

33

Circlip

293370049

$5.09

34

Cam Ass'y

417127413

$164.99

35

Circlip

293370049

$5.09

36

Release Spring

417127344

$46.99

37

Torx Screw M8 X 25, Scotch Grip

250000283

$6.39

38

Calibration Ass'y

415129604

$22.49

39

Socket Screw M5 X 25

205052544

$1.69

40

Flat Washer M5

234051410

$1.49

41

Elastic Stop Nut M5

232551414

$1.49

42

Washer

417127155

$8.39

43

Strength Washer

517302322

$12.99

44

Hex. Cap Screw M8 X 75

207287544

$5.29

45

Spacer

417300265

$2.39

46

Shim

504112000

$8.79

47

Drive Belt

417300585

$154.99

48

Belt Guard

417300382

$92.99

49

Security label, Belt Guard

516004649

Unavailable

50

Reinforcement

417300380

$7.49

51

Avex Rivet

390909200

$1.49

52

Guide

417300381

$11.99

53

Side Protector

417300356

$14.99

54

Pop Rivet 3/16"

293150103

$1.49

55

Belt Guard Bracket | Package SWT

417300413

$9.29

56

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

57

Brake Hose Cover | Package SWT

518327035

$14.49

58

Rivet Hucklok

293150163

$3.09

59

Hair Pin

114045200

$11.49

60

Bracket

517281905

$18.49

61

Avex Rivet

390909100

$1.49

62

Belt Decal, English

516005511

Unavailable

63

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

64

Not Available As Spare Part - Friction Washer

Unavailable

65

Hex. Screw M6 X 20 | XT Models

207162044

$1.49

66

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49
