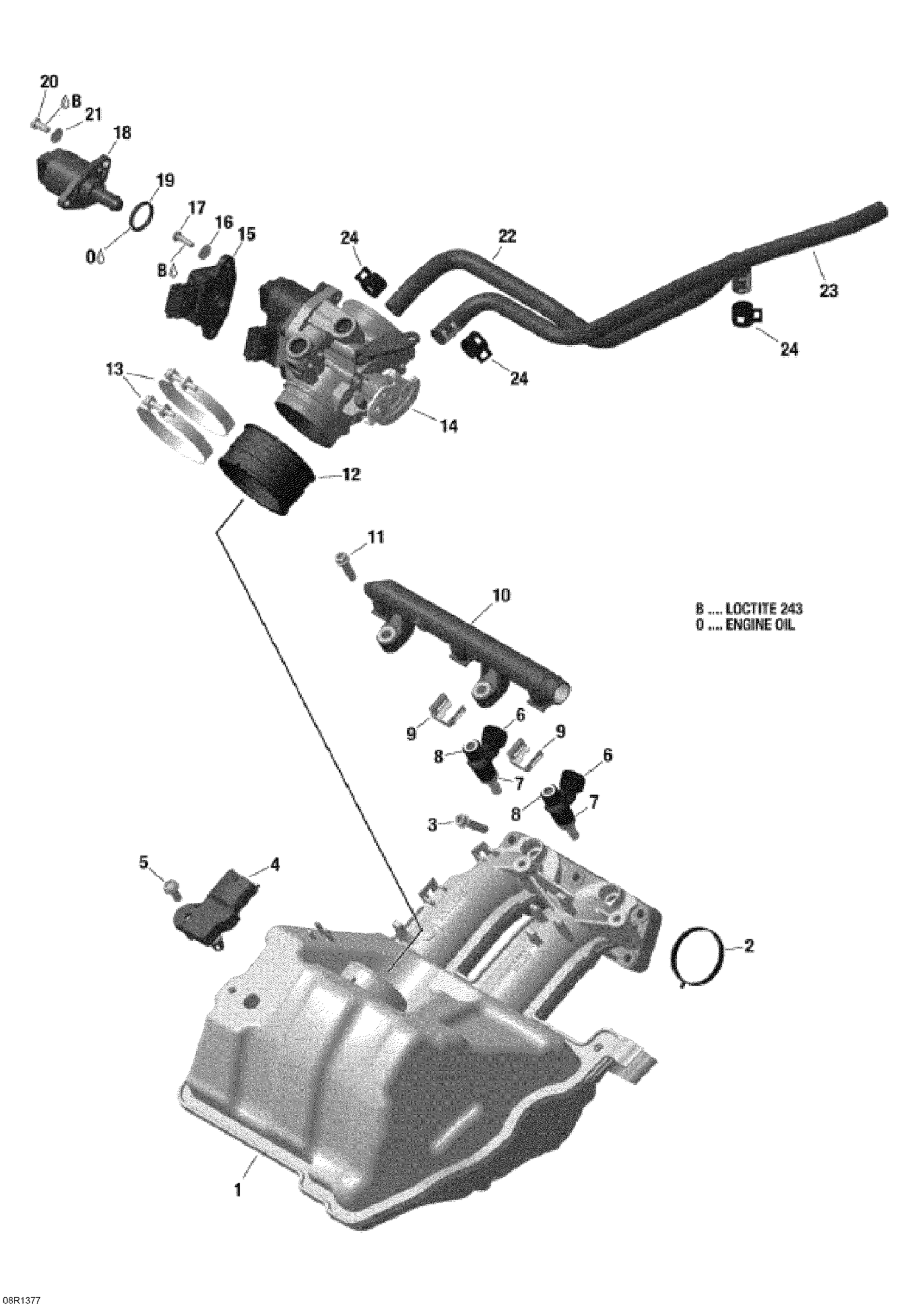

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold Ass'y | Includes 1 To 2

420867020

$206.12

2

Gasket

420431660

$10.52

3

Torx Flange Screw M6 X 30

420440647

$1.97

4

Pressure And Temperature Sensor

707000995

$70.82

5

Torx Flange Screw M6 X 16

420641588

$1.74

6

Injection Valve Ass'y | Includes 18 to 20

420874847

$114.37

7

O-Ring

420431890

$4.95

8

O-Ring

420631220

$11.48

9

Injector Clip

420853030

$2.46

10

Fuel Rail

420874961

$15.35

11

Torx Flange Screw M6 X 25

420440234

$3.00

12

Intake Adaptor

420460495

$9.31

13

Clamp

420251480

$13.58

14

Throttle Body Ass'y | Includes 14 To 21

420296879

$355.35

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Idle Air Control Valve

420665941

$147.52

19

O-Ring

420631780

$3.61

20

Binding Head Screw M5 X 16

420440911

$11.48

21

Snap Ring

420845710

$3.38

22

MOLDED HOSE - Call your local BRP dealership

420460910

Unavailable

23

MOLDED HOSE - Call your local BRP dealership

420460915

Unavailable

24

Clamp

420853511

$7.31

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable
