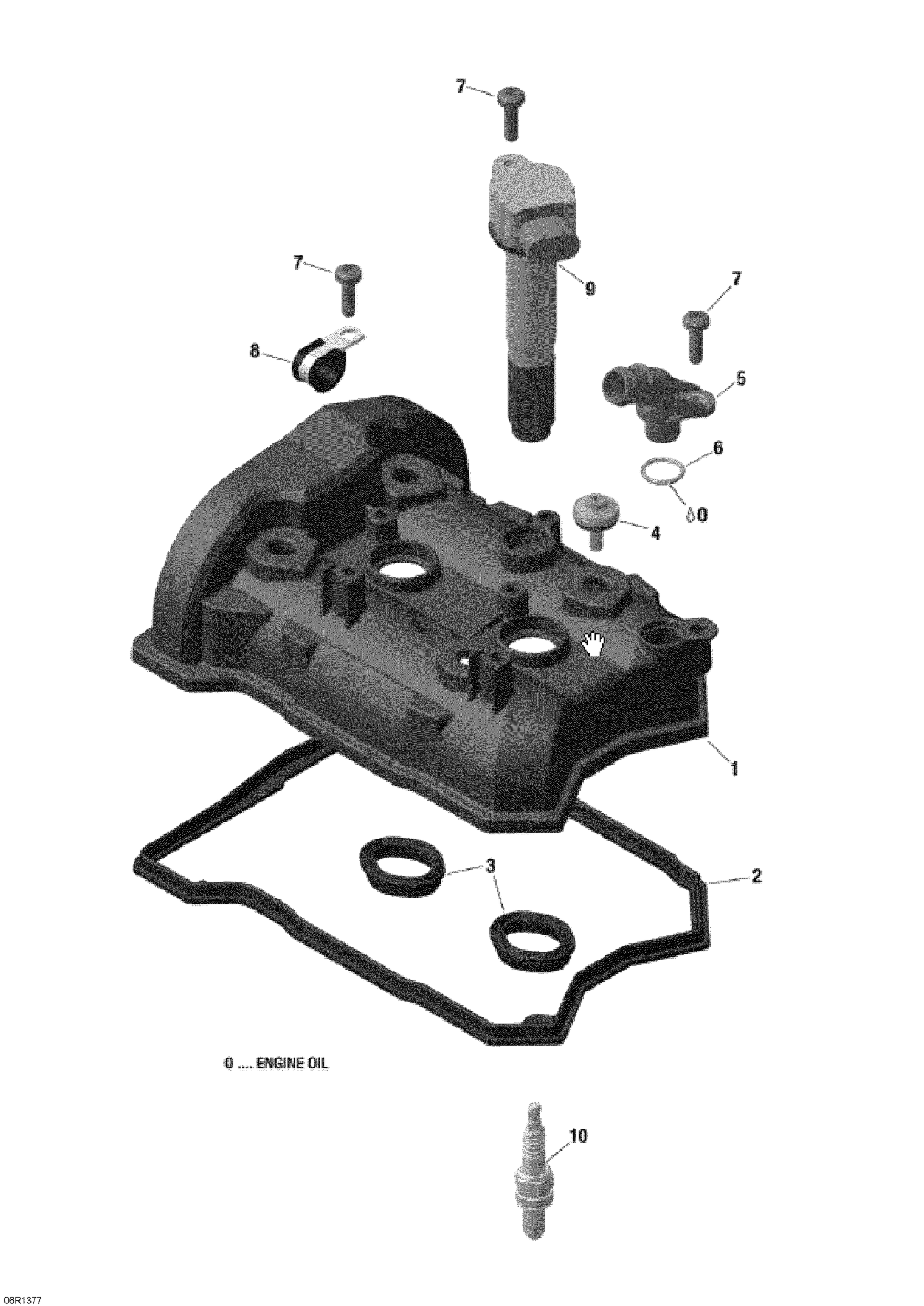

Ski-Doo Skandic SWT 600 ACE (4-strokes) XU, 2013 Valve Cover Diagram

#

Description

Price

1

VALVE COVER - Call your local BRP dealership

420911040

Unavailable

2

Gasket

420431621

$17.49

3

Valve Cover Gasket

420431751

$3.29

4

Torx Distance Screw M6

420440495

$8.29

5

Connector

420611240

$13.49

6

O-RING - Call your local BRP dealership | Included In Gasket Kit

420631260

Unavailable

7

FLANGED TORX SCREW M6 X 20 - Call your local BRP dealership

420441381

Unavailable

8

Cable Clamp

420851492

$14.49

9

Stick Coil | Includes 5 to 6

420666142

$61.99

10

Spark Plug, NGK MR7BI-8

415129670

$21.99

O

Not Available As Spare Part - Friction Washer

Unavailable
