Description

Price

1

Main Harness Ass'y

515177075

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

188

Tubing 12 mm

409902000

Unavailable

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

255

Was 409901800 Tubing (13 mm)

219704400

$10.79

256

Tubing 16 Mm 1000Mm Long

219704408

$7.15

257

Was 409901600 Tubing 19mm

219704398

$87.28

258

Tubing 10 MM 1000MM Long

219704407

$2.52

966

Not Available As Spare Part - Friction Washer

Unavailable

AT

Wire Seal

710001163

$5.85

AT

Female Terminal

710001164

$6.79

AT

Female Terminal Housing

515176890

$10.81

BM

Open Barrel

278000992

$2.06

BP

Open Barrel

278000992

$2.06

CD

Female Terminal

515175567

$5.85

CD

Female Terminal Housing, 2 Circuits

278001673

$22.36

CD

Female Lock, 2 Circuits

278001671

$3.12

CM

Female Housing, 3 Circuits

409209600

$34.30

CM

Tie Wrap 142 mm

293750002

$1.01

CM

Wire Seal

515176621

$6.79

CM

FEMALE TERMINAL - Call your local BRP dealership

278002307

Unavailable

COM

Female Terminal

278000632

$1.94

COM

Sealing Cap

293000052

$2.93

COM

Male Housing, 6 Circuits

515175673

$12.66

COM

Male Wedge, 6 Circuits

515175678

$4.96

CP

Male Terminal

278000631

$4.00

CP

Male Lock, 2 Circuits

409207500

$2.93

CP

Male Terminal Housing, 2 Circuits

515175665

$7.78

CV

Plug

515175812

$1.96

CV

Female Housing, 24 Circuits

515175801

$8.73

CV

Retainer Block

515175802

$10.34

CV

Wire Seal

515175803

$2.76

CV

Female Terminal

515175806

$0.93

CV

Female Housing

710000399

$13.60

CV

Female Terminal

710001131

$6.79

D1

Diode

409012700

$10.51

DM

Female Terminal

515175231

$4.00

DM

Female Housing, 2 Circuits

515175658

$14.90

DS

Female Terminal

515175231

$4.00

DS

Female Housing, 3 Circuits

515175495

$14.90

DT

Female Terminal

278000998

$4.00

DT

Male Housing, 2 Circuits

278001005

$17.88

DT

Seal

415128501

$1.73

ECMB

Cover, 48 positions

710001591

$11.54

ECMB

Molex Housing, 48 Circuits

710001967

$132.06

ECMB

Plug

710001592

$2.06

ECMB

Plug

710001593

$2.06

ECMB

Female Terminal

710001589

$2.06

ECMB

Female Terminal

710001590

$1.94

EI

Male Terminal

278000631

$4.00

EI

Male Lock, 2 Circuits

409207500

$2.93

EI

Male Terminal Housing, 2 Circuits

515175665

$7.78

ER

Female Terminal

278000998

$4.00

ER

Female Terminal Housing, 2 Circuits

415128500

$7.24

ER

Seal

415128501

$1.73

ERF

Housing

710000568

$10.51

ERF

Male Terminal

515176164

$6.24

ERF

Wire Seal

515176621

$6.79

F

Little Fuse, 5 Amperes

710000742

$8.31

F

Little Fuse, 7.5 Amperes

710000743

$7.78

F

Little Fuse, 10 Amperes

710000744

$8.31

F

Little Fuse, 15 Ampere

710000745

$7.78

F

Little Fuse, 20 Amperes

710000746

$7.78

F

Little Fuse, 30 Amperes

710000747

$7.78

FA

Female Terminal

409004200

$4.28

FA

Fuse Holder

409004000

$6.79

FA

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FA

Clip

710000992

$3.88

FAN

Housing

710000568

$10.51

FAN

Male Terminal

515176164

$6.24

FAN

Wire Seal

515176621

$6.79

FB

Female Terminal

409011600

$4.96

FB

Female Terminal

409004200

$4.28

FB

Fuse Holder

409004000

$6.79

FB

Fuse, 5 Amperes | CE

278000344

$3.12

FB

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

FB

Clip

710000992

$3.88

HIC

Male Connector, 4 Circuits | CE

278000739

$17.13

HIC

Male Lock, 4 Circuits | CE

278000738

$2.82

HIC

Sealing Cap

293000052

$2.93

HIC

Female Terminal

278001665

$4.28

HG

Female Terminal

515175231

$4.00

HG

Female Terminal

515175282

$6.24

HG

FEMALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175349

Unavailable

HO

Female Terminal

515175231

$4.00

HO

Female Housing, 2 Circuits

515175658

$14.90

IGM

Female Terminal

278001014

$3.12

IGM

Female Housing, 3 Circuits

409209600

$34.30

IGM

Wire Seal

278001013

$3.12

IGP

Female Terminal

278001014

$3.12

IGP

Female Housing, 3 Circuits

409209600

$34.30

IGP

Wire Seal

278001013

$3.12

INM

Female Terminal

278001014

$3.12

INM

Female Housing, 2 Circuits

409209500

$13.07

INM

Wire Seal

278001013

$3.12

INM

Tie Wrap 94 mm | 4X4

293750001

$0.96

INM

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

INP

Female Terminal

278001014

$3.12

INP

Female Housing, 2 Circuits

409209500

$13.07

INP

Wire Seal

278001013

$3.12

INP

Tie Wrap 94 mm | 4X4

293750001

$0.96

INP

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

J1A

Female Terminal Housing, 34 Circuits

515176342

$20.12

J1A

Plug

515176345

$20.12

J1A

Female Terminal

515176348

$5.85

J1A

Female Terminal

515176541

$4.28

J1B

Female Terminal Housing, 26 Circuits

515176341

$27.58

J1B

Plug

515176345

$20.12

J1B

Female Terminal

515176348

$5.85

J1B

Female Terminal

515176541

$4.28

J2

Female Terminal

278000998

$4.00

J2

Female Terminal Housing, 16 Circuits

515176340

$13.52

J2

Seal

415128501

$1.73

MO

Male Terminal

278000631

$4.00

MO

Female Lock, 6 Circuits

278000735

$2.93

MO

Male Terminal Housing, 6 Circuits

515175668

$13.60

NE

Male Terminal

515175232

$1.45

NE

Male Terminal Housing, 2 Circuits

515175654

$7.25

NH

Male Connector, 2 Circuits

278001113

$14.52

NH

Female Terminal

710001119

$4.96

NV

Housing

710000568

$10.51

NV

Male Terminal

515176164

$6.24

NV

Clip

710000992

$3.88

NV

Wire Seal

515176621

$6.79

PA

Female Housing

515176908

$11.69

PA

Terminal

515176909

$2.06

PB

Female Housing

515176908

$11.69

PB

Terminal

515176909

$2.06

PE

Female Terminal

278001014

$3.12

PE

Female Housing, 2 Circuits

409209500

$13.07

PE

Wire Seal

278001013

$3.12

PF

Fuse Puller

710000781

$8.29

PF

Fuse Cover

710001026

$20.12

PF

Foam

278002172

$5.33

PF

Fuse Box Base Ass´y

415129856

$47.73

PH

Female Terminal

278001114

$2.93

PH

Male Connector, 2 Circuits

278001113

$14.52

R

Relay, 50 AMP

515176775

$13.45

R

Relay, 30 AMP

515176774

$18.63

R2

Female Housing, 5 Circuits

409209900

$8.72

R2

Female Terminal

561503100

Unavailable

R2

Female Terminal

561503100

Unavailable

R2

Tie Wrap 142 mm

293750002

$1.01

RE

Female Housing, 3 Circuits

710000879

$24.60

RE

Cap

710000882

$10.55

RE

Seal

710000881

$16.39

RE

Female Terminal

710000877

$7.25

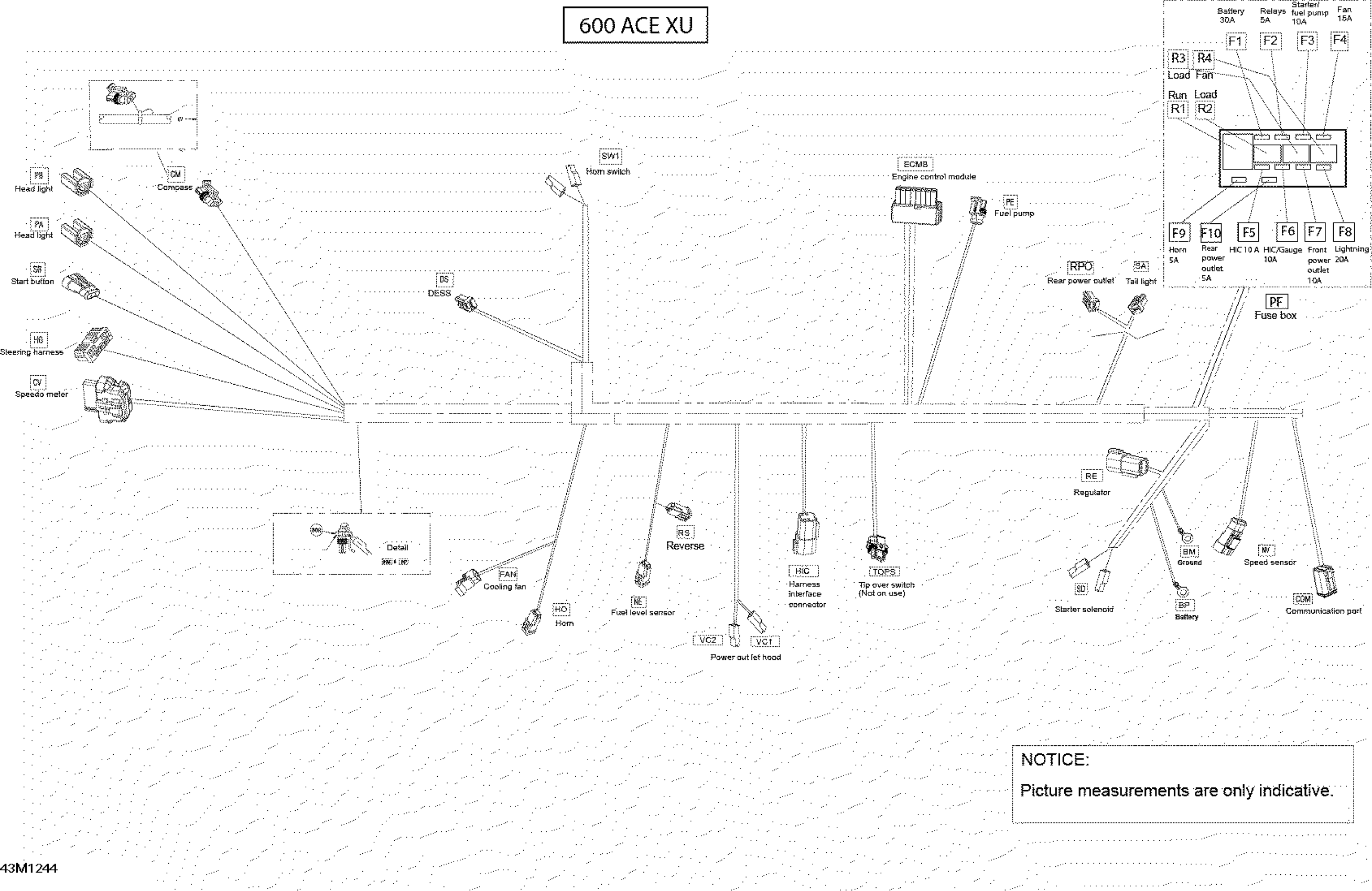

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Electrical Harness Diagram
