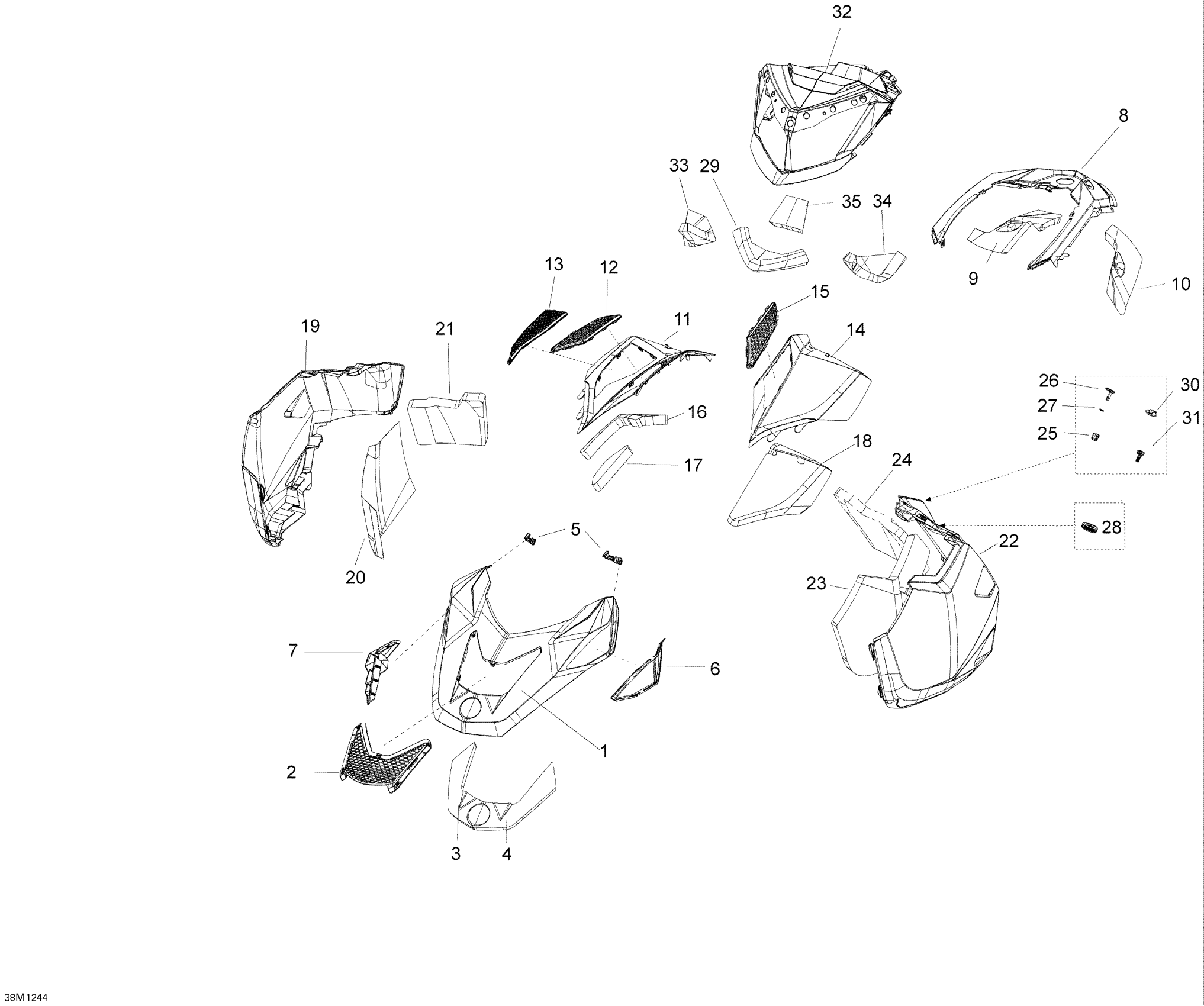

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Hood Diagram

#

Description
Price

1

Yellow Hood | Yellow 2000

517305523

Unavailable

2

Hood Grille

517304843

$82.28

3

Insulator

517304330

$34.58

4

Insulator

517304214

$29.97

5

Latch Pannel

517304289

$9.91

6

Air Filter

508000609

$46.12

7

Scoop Grille

517306980

$34.58

8

Black, Console

517304820

$170.74

9

Insulator

517304318

$49.20

10

INSULATOR - Call your local BRP dealership

517304317

Unavailable

11

Yellow, RH Side Access Panel | Yellow 2000

517305525

Unavailable

12

RH Access Panel Grille

517304015

$33.82

13

RH Lower Acces Grille

517304016

$29.20

14

Yellow, LH Side Access Panel | Yellow 2000

517305527

Unavailable

15

LH Access Panel Grille

517303893

$33.82

16

Insulator

517304311

$63.05

17

Insulator

517304312

$29.97

18

Insulator

517304313

$63.05

19

Black, RH Side Panel

517306977

Unavailable

20

Foam Right

517304709

Unavailable

21

RH Rear Foam

517304310

$62.28

22

Black, LH Side Panel

517306979

Unavailable

23

Foam LH

517304707

Unavailable

24

LH Rear Foam

517304309

$62.28

25

Handle Fastener Quarter-Turn

517304297

$14.62

26

Quarter-Turn Handle

517304296

Unavailable

27

Locking Plate

517304538

$4.29

28

Grommet

517303756

Unavailable

29

Insulator

517304314

$63.82

30

Black Latch Kit | Includes 390 to 400

860200239

$16.12

31

Latch-Panel

517306057

$19.47

32

Indicator Support

517304272

$169.20

33

Insulator

517304315

$29.97

34

Insulator

517304316

$29.97

35

Insulator

517304319

$29.97
