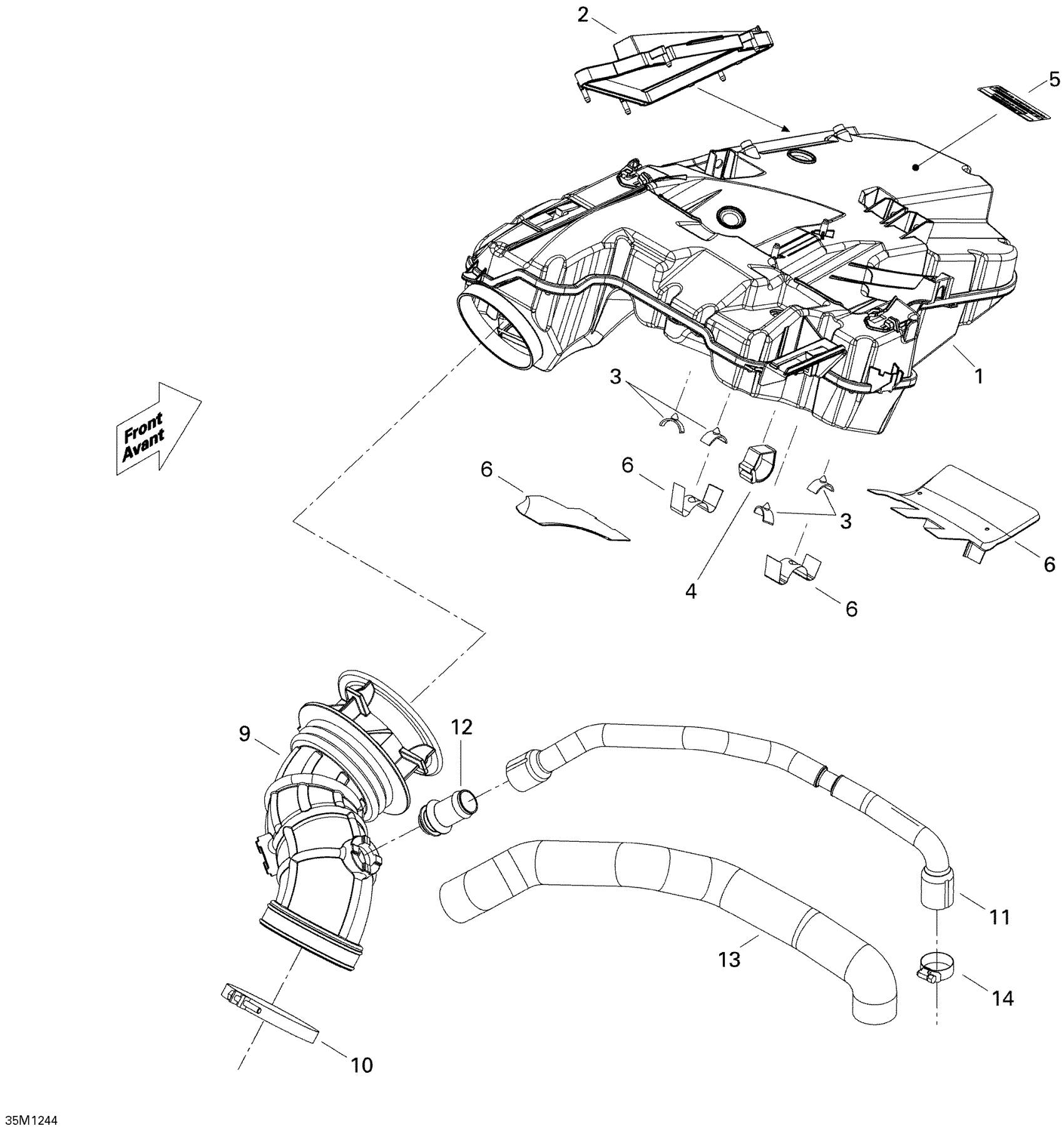

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Air Intake System Diagram

#

Description

Price

1

Chamber Ass'y

508000790

$185.79

2

Air Filter

508000609

$44.75

3

Stopper

508000537

$7.13

4

Velcro Strip

508000820

$7.13

5

Caution Label, Air Intake

516004651

Unavailable

6

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

9

HOSE-INTAKE - Call your local BRP dealership

508000719

Unavailable

10

GEMI Clamp

293650212

$6.07

11

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

12

Breather Valve

273000234

$12.21

13

Tube Isolator

508000648

$14.90

14

Tridon Gear Clamp

293650172

$3.07
