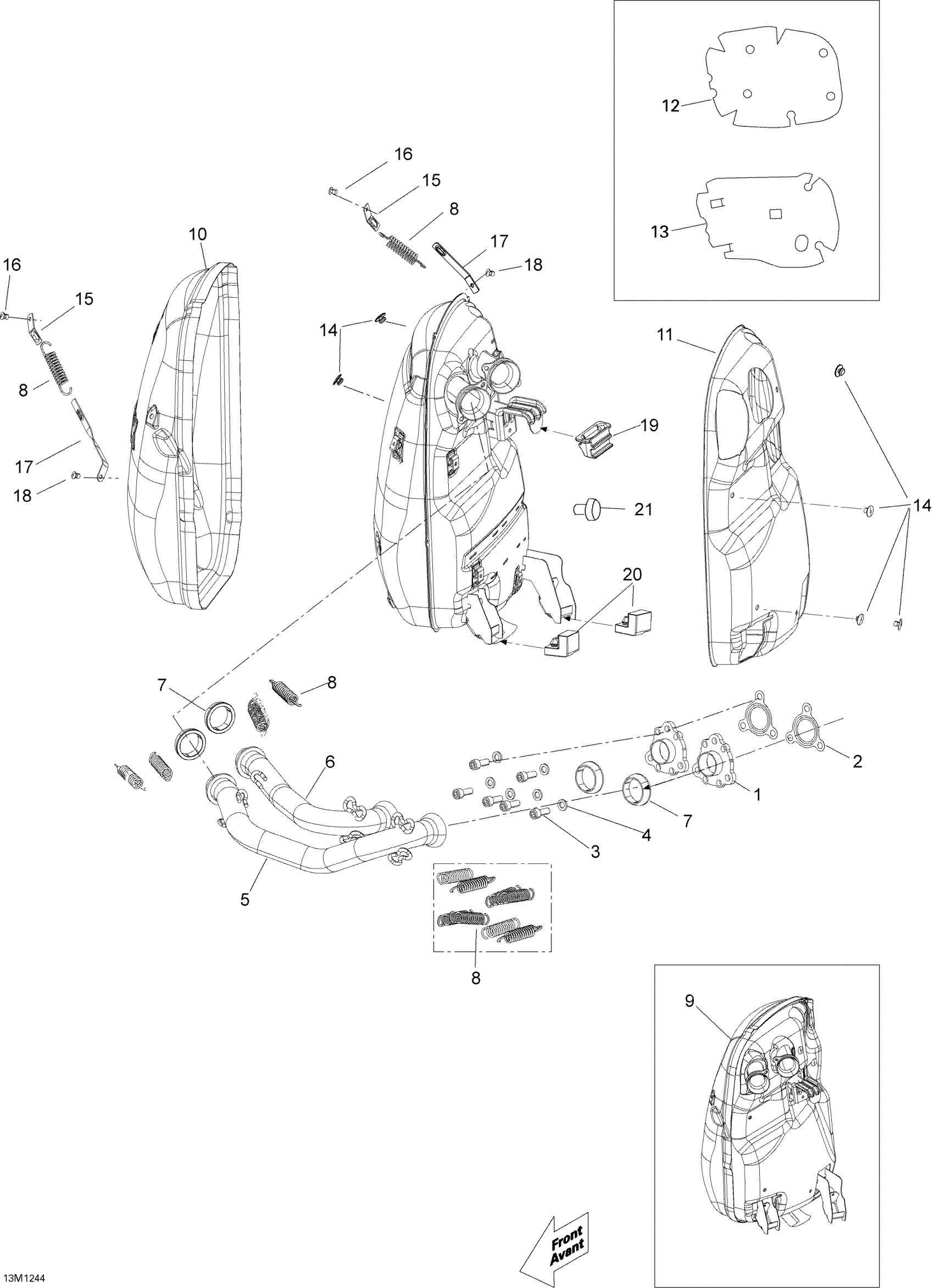

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold

514054673

$69.20

2

Gasket

514055112

$5.86

3

Socket Head Screw M8 X 22

250000414

$2.06

4

Washer

514053837

$4.28

5

Welded Tube

514054733

Unavailable

6

Welded Tube

514054734

Unavailable

7

Exhaust Gasket

514054807

$15.35

8

Spring

514054226

$6.20

9

Muffler Ass'y | Includes 400 to 400h

514055370

Unavailable

10

RH Heat Shield

514055325

$54.58

11

LH Heat Shield

514054645

$54.58

12

INSULATING WOOL - Call your local BRP dealership

514054256

$17.66

13

INSULATING WOOL - Call your local BRP dealership

514054257

$17.66

14

Pop Rivet 3/16”

390910000

$0.48

15

Spring Bracket

514054522

$6.28

16

Avex Rivet

390909200

Unavailable

17

Spring Bracket

514055030

$10.55

18

Avex Rivet

390909100

$0.29

19

Upper Stopper

514054737

$11.58

20

Lower Stopper

514054529

$17.66

21

Rubber Bumper

514053654

$49.20
