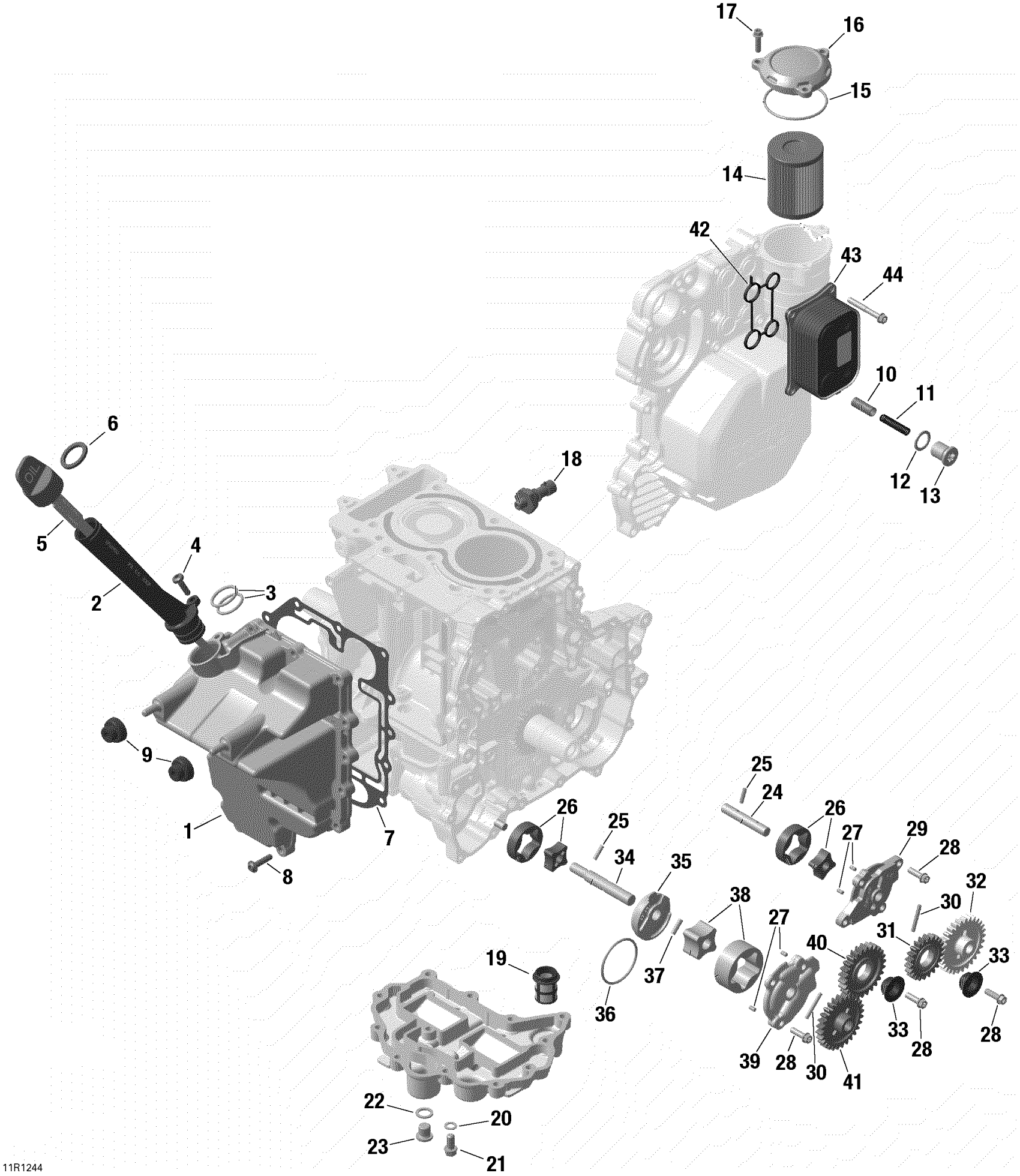

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Engine Lubrication Diagram

#

Description
Price

1

Oil Pump Cover

420956210

$88.43

2

Oil Filler Tube

420656900

Unavailable

3

O-Ring

420430440

$3.22

4

FLANGED TORX SCREW M6 X 20 - Call your local BRP dealership

420441381

Unavailable

5-6

Oil Lever Tube | Includes 5 to 6

420856665

$14.97

6

Gasket Ring

420431790

Unavailable

7

Gasket

420431770

$16.89

8

FLANGED TORX SCREW M6 X 25 - Call your local BRP dealership | Tightening Torque 9 Nm +/- 12%

420841546

$4.14

9

Rubber Grommet

420860150

$4.41

10

Pressure Regulating Piston

420256591

$10.58

11

Spring

420239445

$10.58

12

O-Ring

420430622

$3.61

13

Plug Screw

420441372

$9.31

14

Oil Filter

420956124

$16.87

15

O-Ring

420230923

$2.59

16

Oil Filter cover

420612135

$11.11

17

Torx Flange Screw M6 X 20

420440207

$2.54

18

Oil Pressure Switch

420256915

$38.43

19

Oil Sieve

420656680

$8.72

20

Sealing Ring

420950141

$1.64

21

Torx Flange Screw M8 X 16

420440852

Unavailable

22

Copper Washer

420250640

$0.81

23

Plug Screw M12 x 1,5

420241701

$11.09

24

Oil Pump Shaft

420820120

$9.74

25

Needle Pin

420232731

$1.56

26

Oil Pump Rotor

420256348

$61.72

27

Needle Pin

420929075

$1.74

28

Torx Flange Screw M6 X 20

420440207

$2.54

29

Oil Pump Cover

420911080

$23.37

30

Needle Pin

420232431

$3.67

31

Gear 22 Teeths

420835400

$16.22

32

Oil Pump Gear, 29 Teeth

420834882

$8.89

33

Graduated Spacer This part replaces 420947390.

420947396

$26.89

34

Oil Pump Shaft

420837916

$20.77

35

Oil Pump Cover

420611950

$46.12

36

O-Ring

420631830

$1.74

37

Needle Pin

420632221

$3.61

38

Oil Pump Rotor

420256836

$60.42

39

Oil Pump Cover

420611980

$27.92

40

Idle Gear, 26 Teeth

420835321

$20.77

41

Oil Pump Gear, 28 Teeth

420834887

$8.89

42

Gasket

420431871

$8.83

43

Oil Water Heat Exchanger

420656698

$92.28

44

Torx Flange Screw M6 X 45

420440324

$0.81
