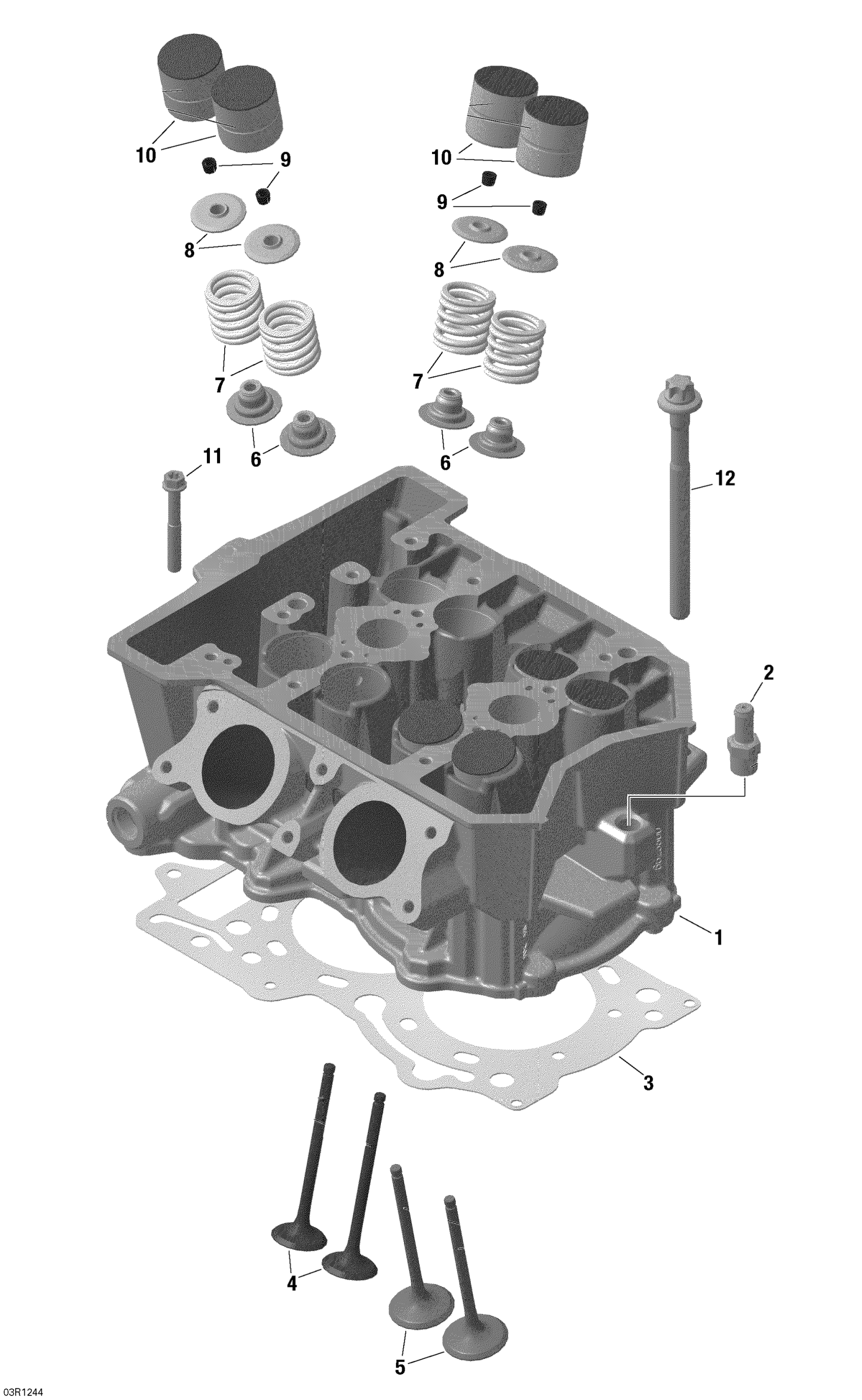

Ski-Doo Skandic SWT 600 ACE (4-strokes), 2012 Cylinder Head Diagram

#

Description
Price

1

Cylinder head Ass'y

420623807

$789.99

2

Hose Nipple

420441420

$10.58

3

Cylinder Head Gasket

420431611

$47.66

4

Exhaust Valve 25MM This part replaces 420855141.

420855144

Unavailable

5

Intake Valve 29MM

420855131

$20.12

6

Valve Stem Seal

420431671

$4.41

7

Valve Spring

420939540

$6.18

8

Valve Spring Retainer

420855150

$3.61

9

Cotter Valve

420254630

$0.83

10

Valve Lifter Bucket

420855165

$38.32

11

Torx Flange Screw M6 X 45

420440324

$0.81

12

Torx Flange Screw M9 X 113

420940945

$10.41
