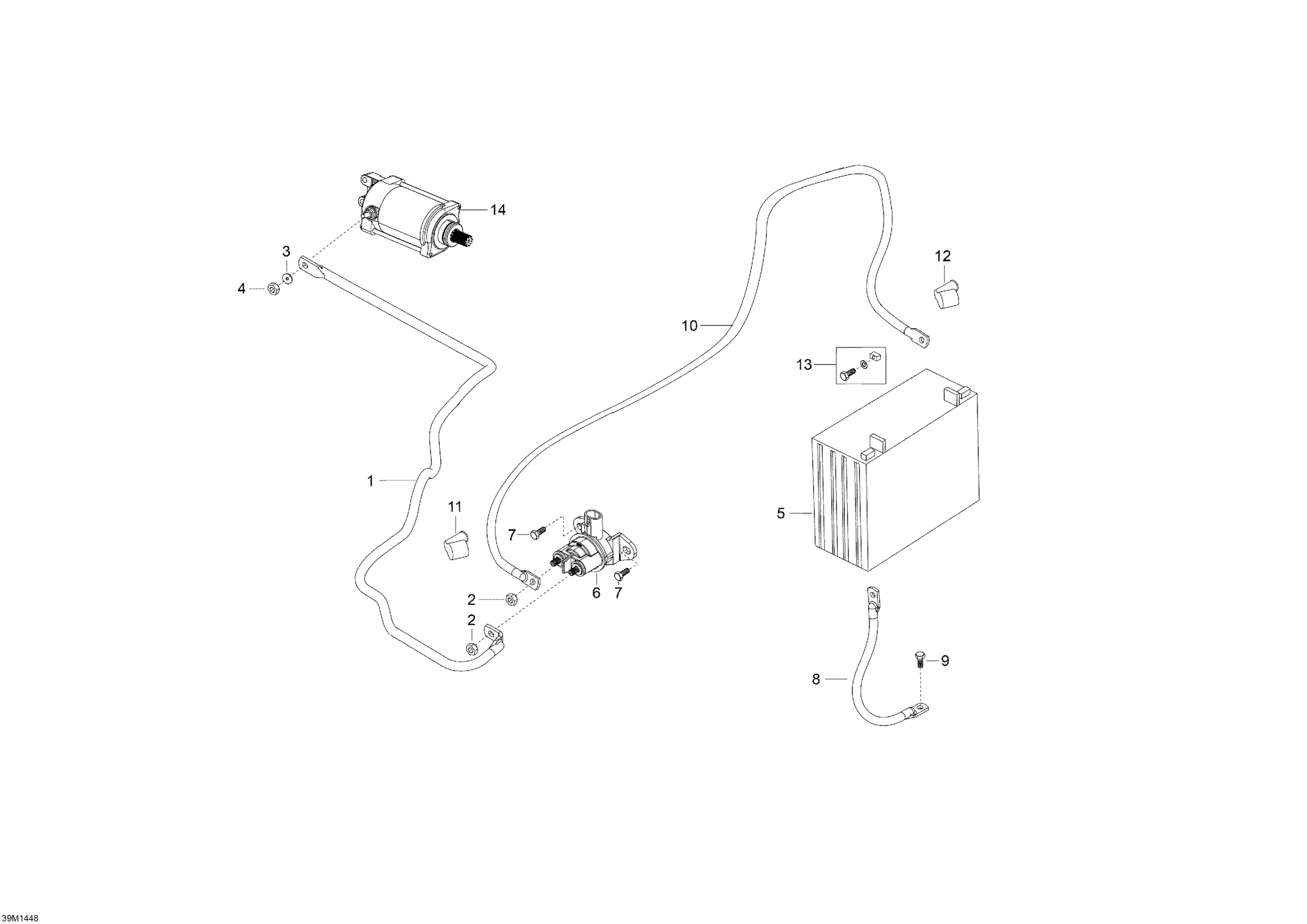

Ski-Doo Skandic SWT 550F XU, 2014 Battery And Starter Diagram

#

Description

Price

1

Battery Wire

515177606

Unavailable

2

Elastic Stop Nut M6

232561434

$1.55

3

Flat Washer 6 mm

234061410

$1.04

4

Elastic Stop Nut M6

232561434

$1.55

5

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$126.07

6

Starter Relay

278003012

$35.07

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

8

Ground Wire

515176780

Unavailable

9

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

10

Battery Cable

515176805

Unavailable

11

Protector Cap

710000495

$10.14

12

Protector Cap

710000495

$10.14

13

Battery Bolt Kit

250000282

$2.95

14

Starter

515178473

$319.49
