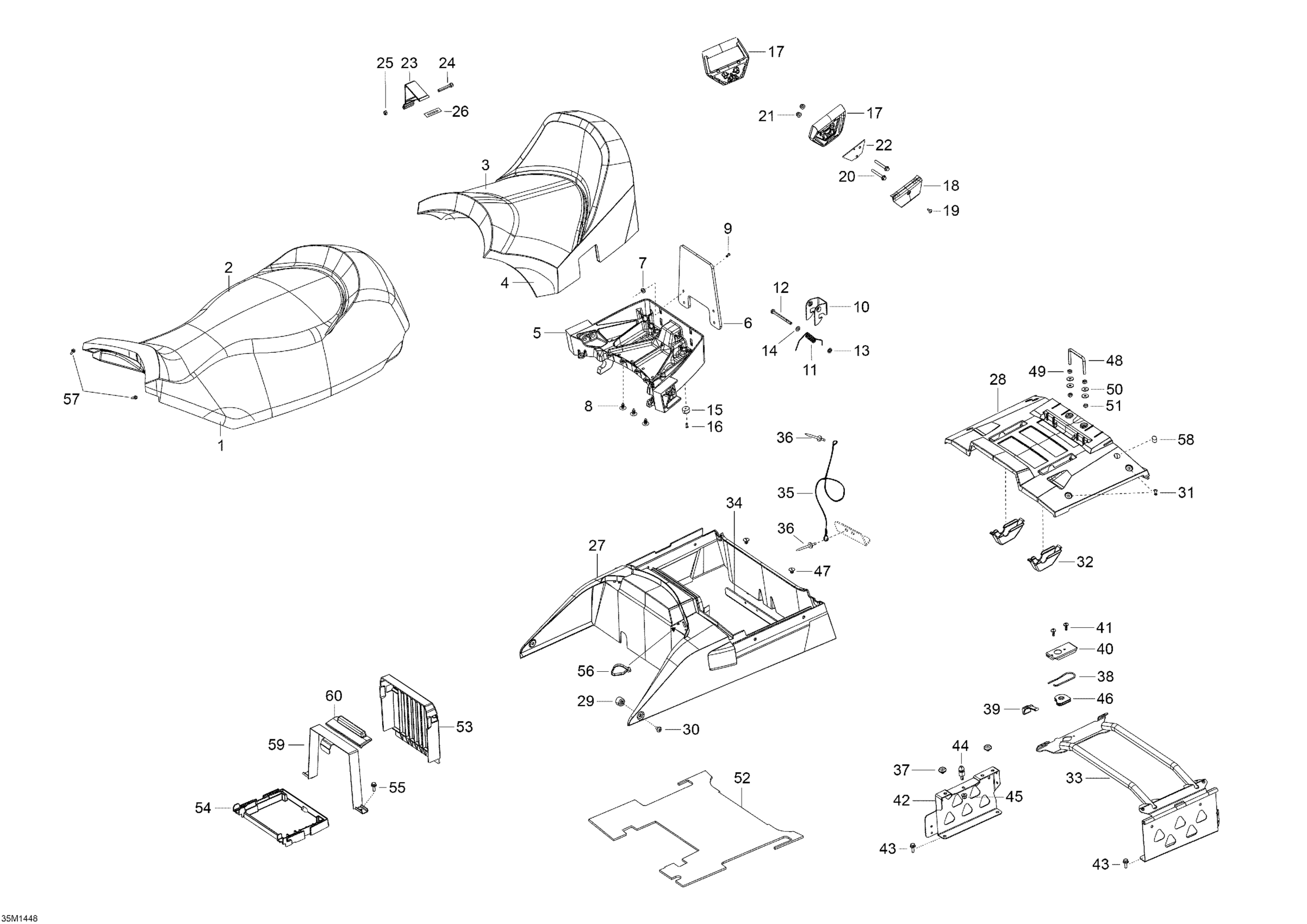

Ski-Doo Skandic SWT 550F XU, 2014 Seat Diagram

#

Description
Price

1

Front Seat Foam | Model-550F

510005807

$459.99

2

Cover, front

510005722

$214.99

3

Rear Seat Cover XU

510005320

Unavailable

4

Rear Seat Foam | Model-550F

510005811

$368.63

5

Seat Base

510004816

$97.99

6

Backrest Plate

510005330

$64.15

7

Flat Washer 6 mm

234062410

$0.73

8

Black, Dart

414644300

$0.90

9

Rivet

293150210

Unavailable

10

Latch, Black

708000144

$10.76

11

Spring

708000369

$8.34

12

Hex. Screw M6 X 80

207068044

$3.90

13

Push Nut

732610072

$1.97

14

Flat Washer 6 mm

234061410

$1.19

15

RUBBER STOPPER - Call your local BRP dealership

510004903

Unavailable

16

Pop Rivet 1/8”

293150015

$0.33

17

Handle

510005409

$57.99

18

Handle Cover

510005444

$38.99

19

Forming Screw M5 x 16

250000676

$0.96

20

Hex. Flange Screw, M8 X 65

207686544

$11.18

21

Hex. Flange Elastic Nut M8

233281414

$1.31

22

Support Plate

510005936

$12.54

23

Security Lock

510005139

$53.70

24

Socket Screw HD.DIN.912

205064044

$2.00

25

Elastic Stop Nut M6

232561434

$1.78

26

SCREEN PLATE - Call your local BRP dealership

510005480

Unavailable

27

Storage Box

510006243

$211.91

28

Storage Box Cover

510006244

$39.99

29

Bushing

510005147

$9.61

30

Torx Truss Screw M6 x 12 | Model-T3

250000675

$0.90

31

Pop Rivet 3/16" | DS 650 X

293150104

$0.99

32

Cover

510004999

$15.64

33

Lock tube

510005714

$390.27

34

Cable Support Plate

510005156

$17.13

35

Seat Retainer Cable

293750070

$9.93

36

Pop Rivet 3/16"

390402200

$0.30

37

Plug

605452114

$8.34

38

Latch Spring

269700017

$8.34

39

Puller

510005072

$17.88

40

Lock Pin Cover

510005698

$18.63

41

Forming Screw M5 x 16

250000676

$0.96

42

LOCKING PLATE (FRAME) - Call your local BRP dealership

510004998

Unavailable

43

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

44

LOCK PIN - Call your local BRP dealership

605452035

Unavailable

45

Elastic Flange Nut M6 X 1.0

233261416

$2.00

46

Lock Pin Guide

510005044

$13.60

47

Pop Rivet 3/16"

293150103

$0.52

48

FASTENER PIN - Call your local BRP dealership

510004876

Unavailable

49

Hex. Nut M6

250000135

$0.49

50

Washer

20117

$5.06

51

Elastic Stop Nut M6

232561434

$1.78

52

Foam

510005043

$64.15

53

Battery Cover

510005079

$17.13

54

Battery Support

515176804

$72.36

55

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

56

Tie-Rap

605627000

$2.96

57

Forming Screw M5 x 16

250000676

$0.96

58

Cap

572051500

$5.22

59

Battery Strap

510005143

$72.36

60

Strap Cover

510005146

$26.09
