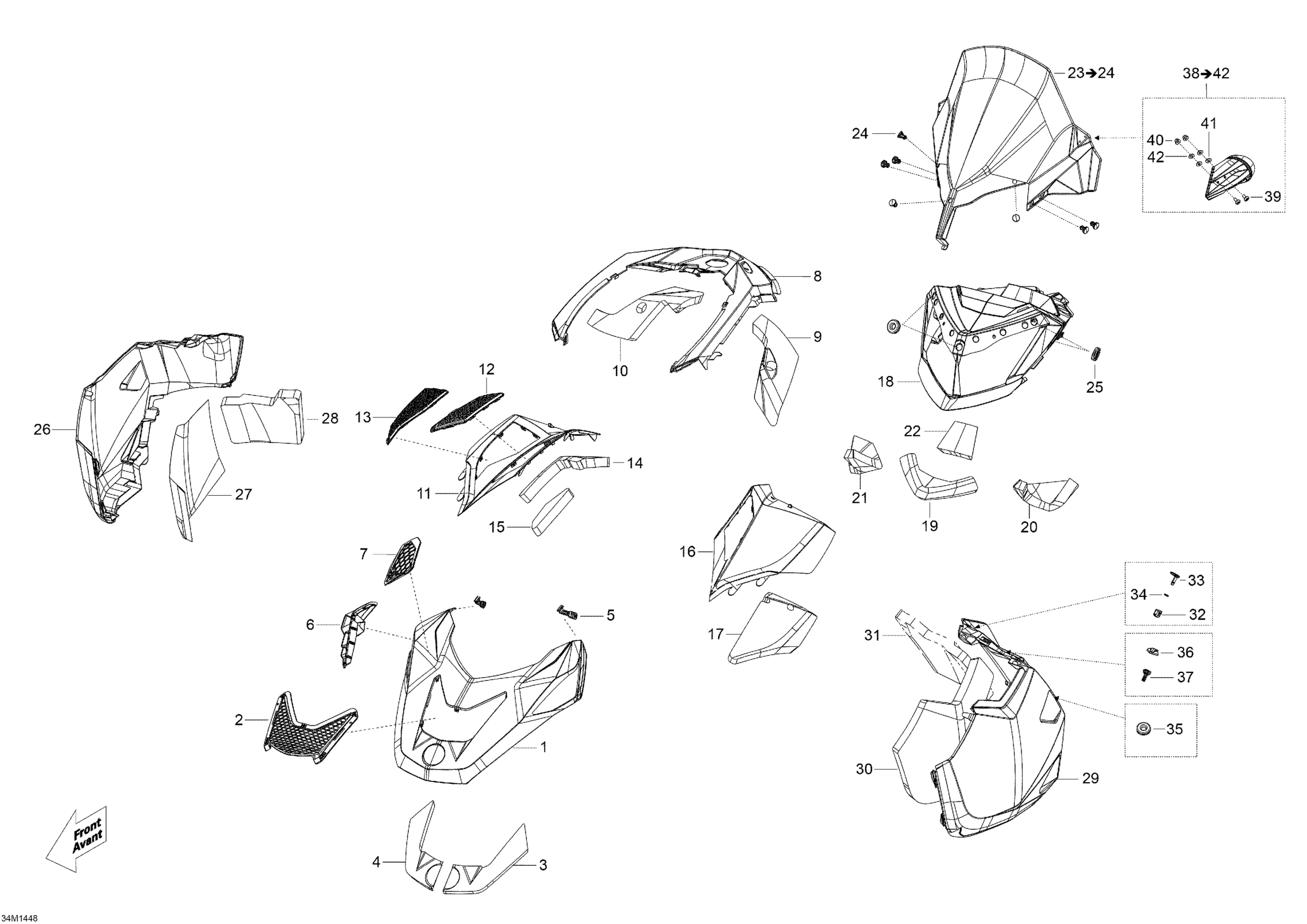

Ski-Doo Skandic SWT 550F XU, 2014 Hood, Windshield And Console Diagram

#

Description
Price

1

HOOD B-190 - Call your local BRP dealership | Yellow 2000

517305521

Unavailable

2

Hood Grille

517304843

$82.28

3

Insulator

517304330

$34.58

4

Insulator

517304214

$29.97

5

Latch Pannel

517304289

$9.91

6

Intake Grille

517306981

$26.89

7

Intake Grille

517304584

$26.89

8

Black, Console

517304820

$170.74

9

INSULATOR - Call your local BRP dealership

517304317

Unavailable

10

Insulator

517304318

$49.20

11

Yellow, RH Side Access Panel | Yellow 2000

517305525

Unavailable

12

RH Access Panel Grille

517304015

$33.82

13

RH Lower Acces Grille

517304016

$29.20

14

Insulator

517304311

$63.05

15

Insulator

517304312

$29.97

16

Yellow, LH Side Access Panel | Yellow 2000

517305527

Unavailable

17

Insulator

517304313

$63.05

18

Gauge Support

517304002

Unavailable

19

Insulator

517304314

$63.82

20

Insulator

517304315

$29.97

21

Insulator

517304316

$29.97

22

Insulator

517304319

$29.97

23

Windshield Ass'y

860201000

$213.82

24

Button

517304744

$1.90

25

Grommet

517303756

Unavailable

26

Black, RH Side Panel

517306977

Unavailable

27

Foam Right

517304709

Unavailable

28

RH Rear Foam

517304310

$62.28

29

Black, LH Side Panel

517306979

Unavailable

30

Foam LH

517304707

Unavailable

31

LH Rear Foam

517304309

$62.28

32

Handle Fastener Quarter-Turn

517304297

$14.62

33

Quarter-Turn Handle

517304296

Unavailable

34

Locking Plate

517304538

$4.29

35

Grommet

517303756

Unavailable

36

Black Latch Kit | Includes 390 to 400

860200239

$16.12

37

Latch-Panel

517306057

$19.47

38

RH/LH Mirror Ass'y | Includes 50 to 54

517305787

$71.51

39

Torx Truss Screw M6 X 16

250000721

Unavailable

40

Domed Nut M6

232361493

$1.77

41

Rubber Washer 5 mm

250200024

$1.77

42

Washer

20117

$5.22
