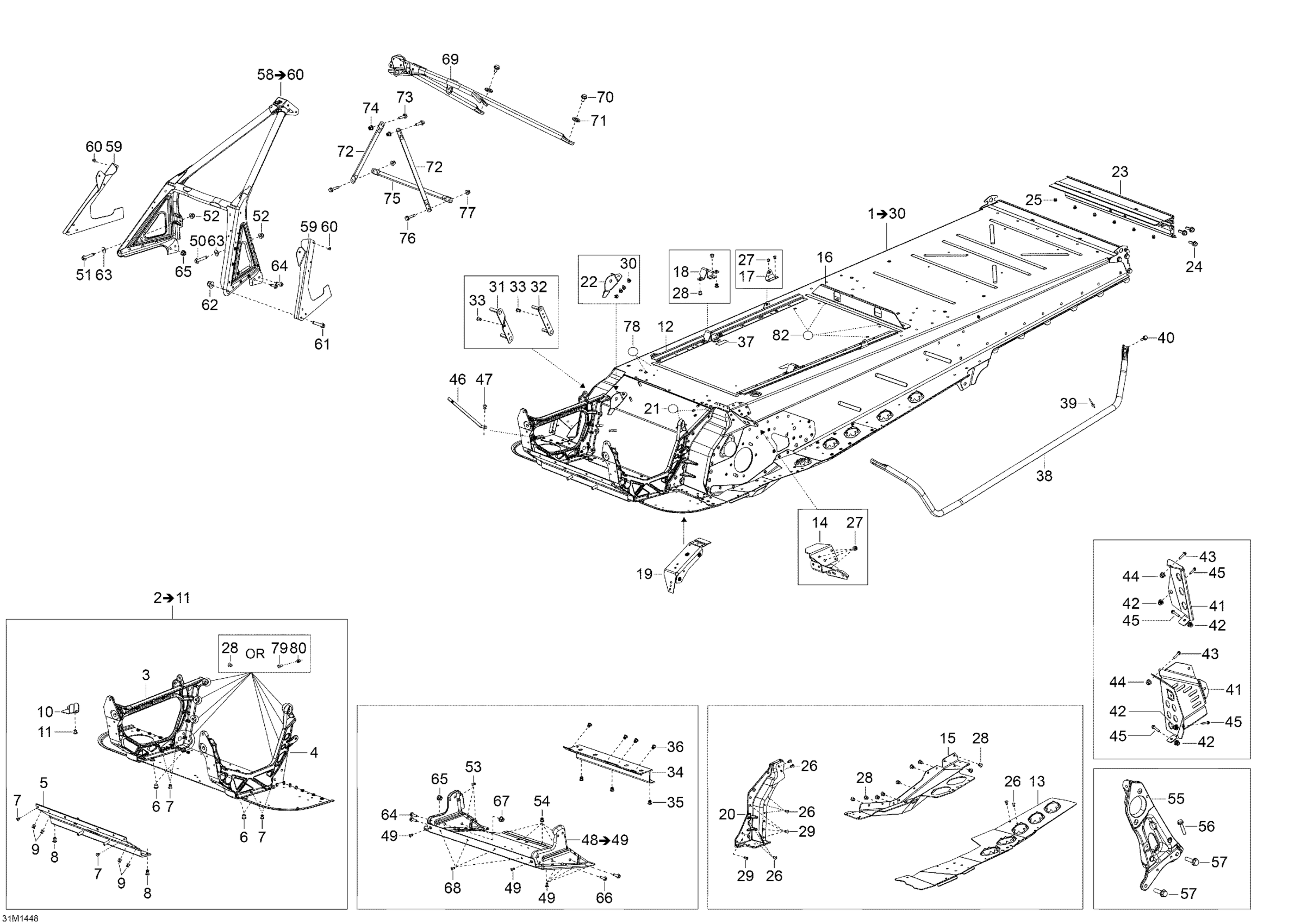

Ski-Doo Skandic SWT 550F XU, 2014 Frame Diagram

#

Description
Price

1

Frame | Includes 1 To 30

518327480

Unavailable

2

MODULE E - Call your local BRP dealership | Includes 2 To 11

518328189

Unavailable

3

RH Member

518326795

$252.21

4

LH Member

518325558

$223.85

5

Front Member | Includes 10as to 10at

518325818

$52.96

6

Clinch Nut Hexsert M8

605636002

$7.09

7

Avex Rivet

390909100

$0.28

8

Hemlock Rivet 6.5 mm

293150120

$7.01

9

Hemlock Rivet, 6.5 mm

293150119

$3.88

10

Muffler Support

518327219

Unavailable

11

Rivet Hucklok

293150163

$2.73

12

Fastening rail

518326107

$14.90

13

FOOTREST LH - Call your local BRP dealership

518327481

Unavailable

13

Footrest RH

518327482

Unavailable

14

Fastening Bracket

518327884

$24.60

15

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

TUNNEL SUPPORT - Call your local BRP dealership

518327003

Unavailable

17

Seat Box Bracket

518327457

$29.07

18

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

Unavailable

18

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

Unavailable

19

CLINCH NUT PLATE - Call your local BRP dealership

518328096

Unavailable

20

LH Frame Corner

518325643

$50.72

20

RH Frame Corner

518325644

$50.72

21

Adhesive Patch

518325560

$4.21

22

RH Support

518326520

$12.42

23

Rear Profile

518328749

$211.16

24

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

25

Hemlock Rivet, 6.4 mm

293150174

$6.24

26

Avex Rivet

390909100

$0.28

27

Avex Rivet

390909200

$0.28

28

Hemlock Rivet, 6.5 mm

293150119

$3.88

29

Rivet

293150183

$2.00

30

Hemlock Rivet, 6.5 mm

293150096

$3.07

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

$14.81

33

Pop Rivet 3/16"

390402200

$0.30

34

Engine Support

518326719

$44.00

35

Rivet Hucklok

293150163

$2.73

36

Avex Rivet

390909200

$0.28

37

RUBBER COVER - Call your local BRP dealership

518326357

Unavailable

38

LH Footboard Support Tube

518327595

$79.07

38

RH Footboard Support Tube

518327596

$79.07

39

Avex Rivet

390909100

$0.28

40

Hex. Flange Screw M6 x 20

207662056

$0.96

41

TOE HOOK LH - Call your local BRP dealership

518327445

Unavailable

41

TOE HOOK RH - Call your local BRP dealership

518327447

Unavailable

42

Clinch Nut M6 Hexsert

605636003

$4.00

43

Hex. Flange Screw M6 x 20

207662056

$0.96

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

45

Torx Truss Screw M6 X 16

250000721

$1.60

46

Spring Bracket

514054846

$4.21

47

Avex Rivet

390909200

$0.28

48

S Module | Includes 300 to 300a

518326213

$752.96

49

Avex Rivet

390909200

$0.28

50

Hex. Flange Screw M6 X 25

207662544

$0.61

51

Hex. Flange Screw M6 X 25

207662544

$0.61

52

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

53

Avex Rivet

390909100

$0.28

54

Avex Rivet

390909200

$0.28

55

PULLEY SUPPORT - Call your local BRP dealership

518326714

Unavailable

56

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.22

57

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.12

58

Front Member Ass'y | Includes 700 to 700d

518327004

$485.04

59

LH Bumper Fastener

502007077

$51.46

59

RH Bumper Fastener

502007078

$51.46

60

Avex Rivet

390909200

$0.28

61

Hex. Flange Screw M6 X 20

207662044

$1.91

62

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

63

Flat Washer

224061201

$1.27

64

Hex. Flange Screw M6 X 20

207662044

$1.91

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

66

Hex. Flange Screw M6 X 20

207662044

$1.91

67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

68

Avex Rivet

390909200

$0.28

69

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

70

Hex. Flange Screw M6 x 20

207662056

$0.96

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Upper Lateral Column Support

518325114

$20.12

73

Hex. Flange Screw M6 x 20

207662056

$0.96

74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

75

Center Column Support

518325115

$20.12

76

Hex Flange Screw M6 x 25

250000522

$4.15

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

78

Adhesive Patch

518325560

$4.21

79

Hex. Flange Screw M6 X 20

207662044

$1.91

80

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27
