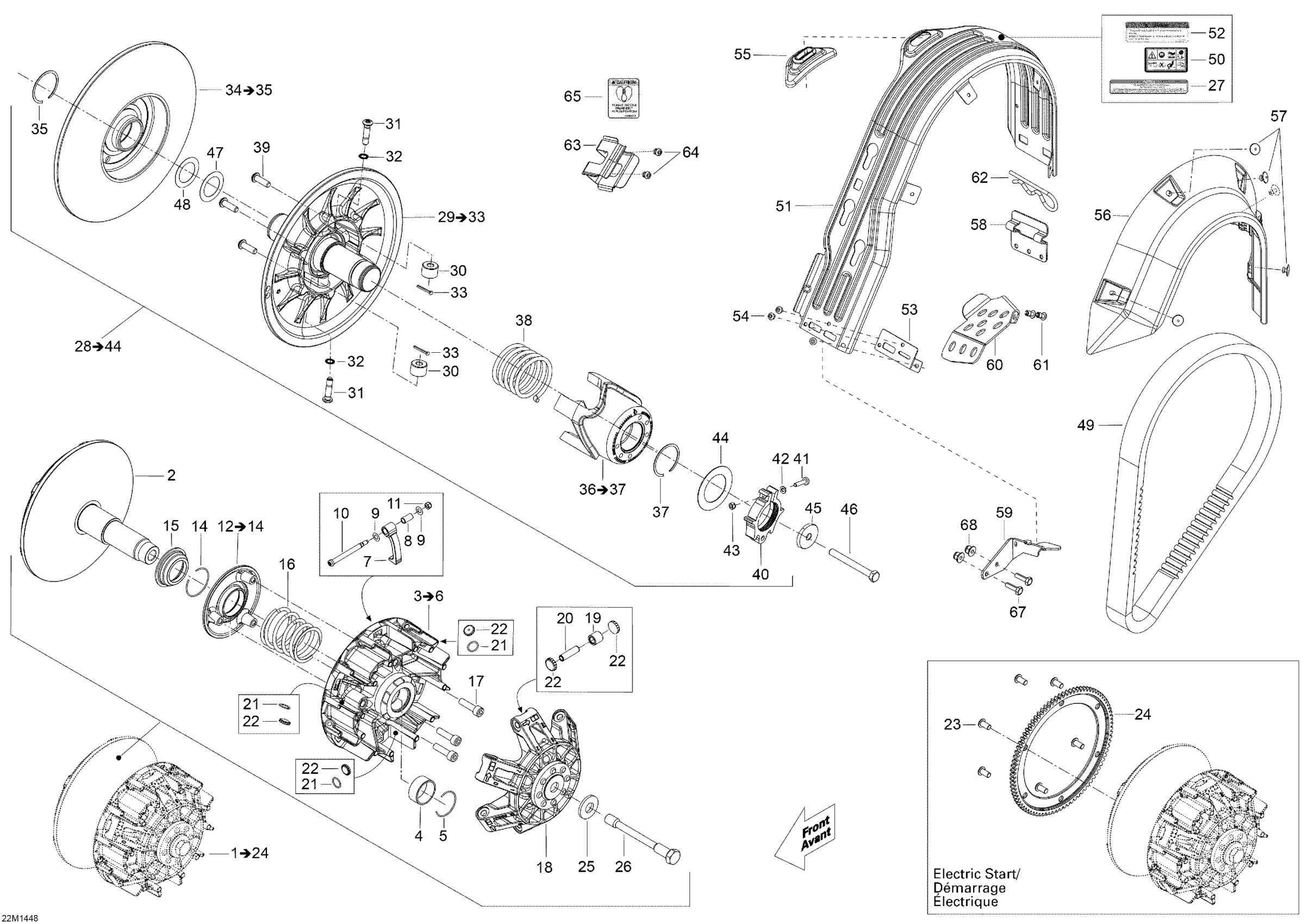

Ski-Doo Skandic SWT 550F XU, 2014 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixe Flange Ass'y

417223534

Unavailable

3

Slider Flange Ass'y

417223606

Unavailable

4

Not Available As Spare Parts

XXX

Unavailable

5

Circlip

293370065

$0.95

7

Ramp 700 Ass'y This part replaces 417223557.

417223604

$32.28

8

Not Available As Spare Parts

XXX

Unavailable

9

Thrust Washer

417223255

$1.97

10

Ramp Axle

417223694

$4.60

11

Elastic Stop Nut M5

232551414

Unavailable

12

Slider Adaptor Ass'y

417223615

Unavailable

14

CIRCLIP - Call your local BRP dealership

293370063

Unavailable

15

SPRING SEAT - Call your local BRP dealership

417223155

Unavailable

16

Spring Clutch

417223315

Unavailable

17

SCREW-SOCKET HEAD S.GRIP - Call your local BRP dealership

250000473

Unavailable

18

GOVERNOR CUP ASS'Y - Call your local BRP dealership

417223778

Unavailable

19

Roller

417223767

$7.37

20

Not Available As Spare Parts

XXX

Unavailable

21

O-Ring

293300185

$0.95

22

Slider Shoe

417223919

$3.68

23

Torx Screw M8 X 16

250000751

$4.64

24

Crown Gear Launch

417223476

$161.51

25

Conical Spring Washer M14

250200144

Unavailable

26

DRIVE BOLT PULLEY - Call your local BRP dealership

417300407

Unavailable

27

Decal English

516005503

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Fixed Flange Ass'y

417127410

Unavailable

30

Roller

417127189

$44.58

31

Pivot Stud

417127294

Unavailable

32

Lock Washer 8 mm

250200009

Unavailable

33

Spring Pin M3 X 30

250400063

$1.74

34

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

35

Circlip

293370049

Unavailable

36

CAM ASS'Y - Call your local BRP dealership

417127385

Unavailable

37

Circlip

293370049

Unavailable

38

Spring, White

417127243

$42.28

39

Torx Screw M8 X 25, Scotch Grip

250000283

$1.61

40

Calibration Ass'y

415129604

Unavailable

41

Socket Screw M5 X 25

205052544

$1.34

42

Flat Washer M5

234051410

Unavailable

43

Elastic Stop Nut M5

232551414

Unavailable

44

Washer

417127155

Unavailable

45

Strength Washer

517302322

$11.09

46

Hex. Cap Screw M8 X 75

207287544

$4.24

47

Spacer

417300265

$2.12

48

Shim

504112000

$6.05

49

Drive Belt

414860700

Unavailable

50

Warning Decal | Europe

516003919

$7.65

51

Belt Guard

417300382

$85.35

52

Security label, Belt Guard

516004649

Unavailable

53

Reinforcement

417300380

$5.17

54

Avex Rivet

390909200

Unavailable

55

Guide

417300381

$9.23

56

Side Protector

417300356

$13.25

57

Pop Rivet 3/16"

293150103

Unavailable

58

Belt Guard Bracket | Package SWT

417300413

$7.11

59

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

60

Brake Hose Cover | Package SWT

518327035

$11.02

61

Rivet Hucklok

293150163

$2.82

62

Hair Pin

114045200

Unavailable

63

Bracket

517281905

Unavailable

64

Avex Rivet

390909100

$0.29

65

Belt Decal, English

516005511

Unavailable

67

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
