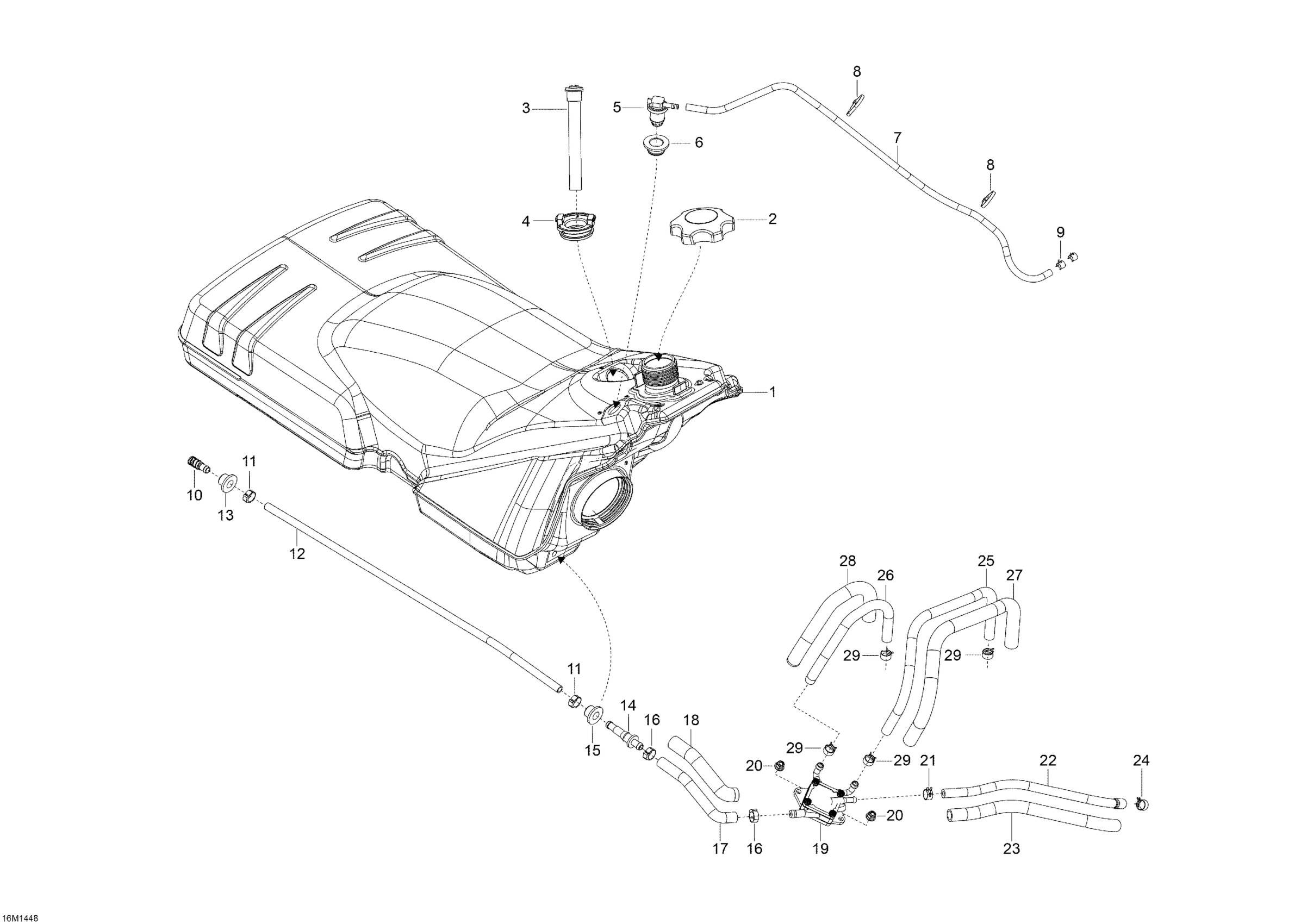

Ski-Doo Skandic SWT 550F XU, 2014 Fuel System Diagram
#
Description
Price
1
Fuel Tank
513033632
Unavailable
3
Fuel Sensor
513033538
Unavailable
7
Polyurethane Hose 10000Mm Long
219704410
Unavailable
11
Norma Spring Clamp
513033010
Unavailable
12
Polyurethane Hose 1000Mm Long
219704391
Unavailable
13
Grommet
280000674
Unavailable
14
Male Connector
414872700
Unavailable
15
Grommet
513033435
Unavailable
16
Crimp Clamp
293650053
Unavailable
17
Molded Hose - 3/8 I.D.
513033626
Unavailable
18
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
19
Fuel Pump
403901813
Unavailable
20
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
22
Formed Hose
513033553
Unavailable
23
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
24
Universal Spring Clamp
513033029
Unavailable
25
Hose 3000Mm Long
219704612
Unavailable
26
Hose 3000Mm Long
219704612
Unavailable
27
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
28
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
29
Universal Spring Clamp
513033029
Unavailable
