Description

Price

1

Exhaust Manifold

420673065

Unavailable

2

Gasket 1.0 mm

420831849

Unavailable

3

Socket Head Screw M8 X 30

205083044

Unavailable

4

Washer

514053837

$4.28

5

Riser Shim

514054806

Unavailable

6

Bumper

514054617

$14.65

7

Pop Rivet 3/16”

293150108

$1.23

8

Exhaust Elbow

514054411

$77.66

9

Exhaust Gasket

514053644

$25.35

10

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

514054414

Unavailable

11

Rear Upper Half-enveloppe

514054208

$50.74

12

Rear Lower Half Envellope

514054210

$54.58

13

Upper Insulating Wool

514054244

$12.65

14

Lower Insulating Wool

514054243

$12.65

15

Retaining Strap

514053502

$8.35

16

RETAINING STRAP - Call your local BRP dealership

514053491

Unavailable

17

Retaining Strap

514053498

$8.35

18

Spring

514053643

$6.20

19

Bumper

514054513

$19.20

20

Muffler Ass'y | Includes 400 to 400g

514055055

Unavailable

21

RH Deflector

514054984

$54.58

22

LH DEFLECTOR - Call your local BRP dealership

514055069

Unavailable

23

LH Insulated Wool

514054421

$18.43

24

RH Insulating Wool

514054711

$18.43

25

Pop Rivet 3/16”

390910000

$0.48

26

Lower Stopper

514054529

$17.66

27

Upper Stopper

514054606

$14.92

28

Spring

415107100

$6.20

29

Spring Bracket

514054522

$6.28

30

Pop Rivet 3/16"

390402200

$0.26

31

Exhaust Muffler Support

514054767

$18.43

32

Hemlock Rivet, 6.5 mm

293150096

$3.17

33

Spring Bracket

514054846

$4.34

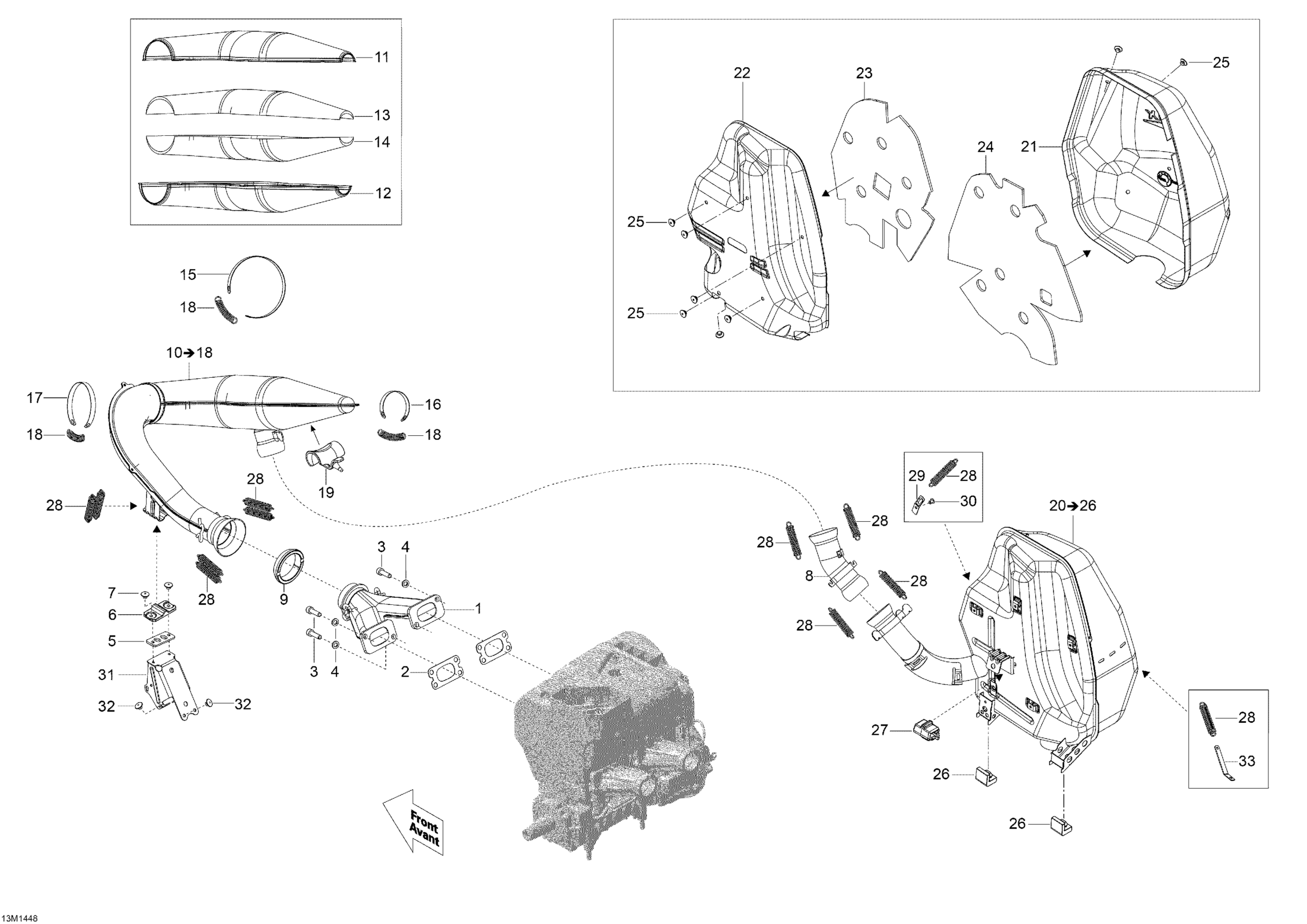

Ski-Doo Skandic SWT 550F XU, 2014 Exhaust System Diagram

Exhaust Manifold

Gasket 1.0 mm

Socket Head Screw M8 X 30

Riser Shim

TUNED PIPE ASS'Y - Call your local BRP dealership | Includes 200 to 200h

RETAINING STRAP - Call your local BRP dealership

Muffler Ass'y | Includes 400 to 400g

LH DEFLECTOR - Call your local BRP dealership
