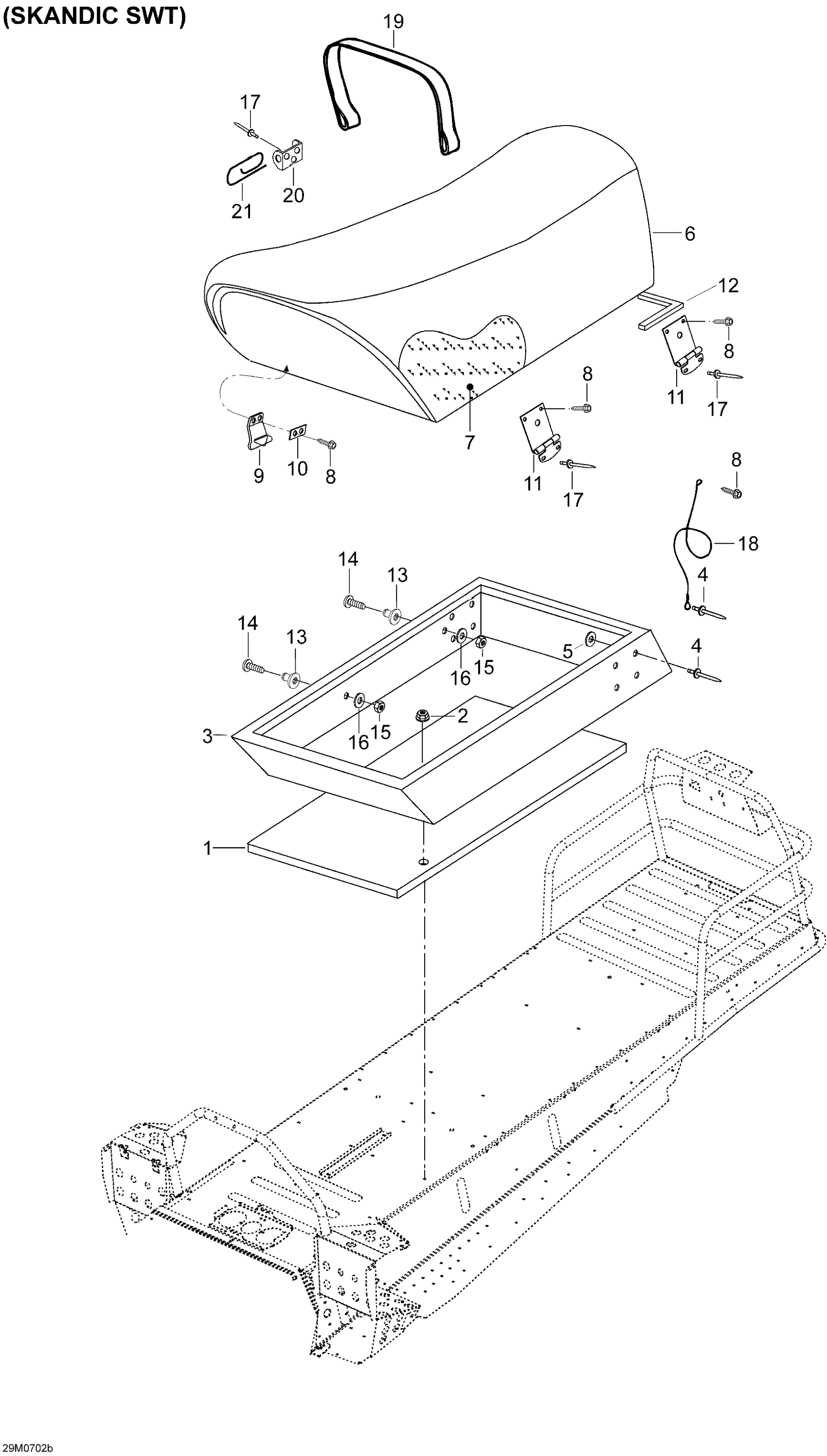

Ski-Doo Skandic SWT 550F, 2007 Seat SWT 550 Diagram

#

Description
Price

1

Foam

M5346331

Unavailable

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Seat Box SWT

605354918

Unavailable

4

Rivet

36005

$1.96

5

Washer 5,3 mm

20008

$0.70

6

Not Available As Spare Part - Friction Washer

Unavailable

7

COVER SEAT - Call your local BRP dealership

605153077

Unavailable

8

Screw

M40888

Unavailable

9

LATCH - Call your local BRP dealership

M5346383

Unavailable

10

PLATE - Call your local BRP dealership

M5446848

Unavailable

11

HINGE - Call your local BRP dealership

M5446374

Unavailable

12

Cushion

M390002

Unavailable

13

Counter Roller

605449087

$3.88

14

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.00

15

Elastic Stop Nut M4

232541414

$0.55

16

Washer

20037

$1.99

17

Rivet

36108

$1.79

18

Seat Retainer Cable

293750070

$9.93

19

Seat Belt

M538856

Unavailable

20

Seat Belt Latch

M548824

Unavailable

21

Spring This part replaces M548834.

548834

$7.13
