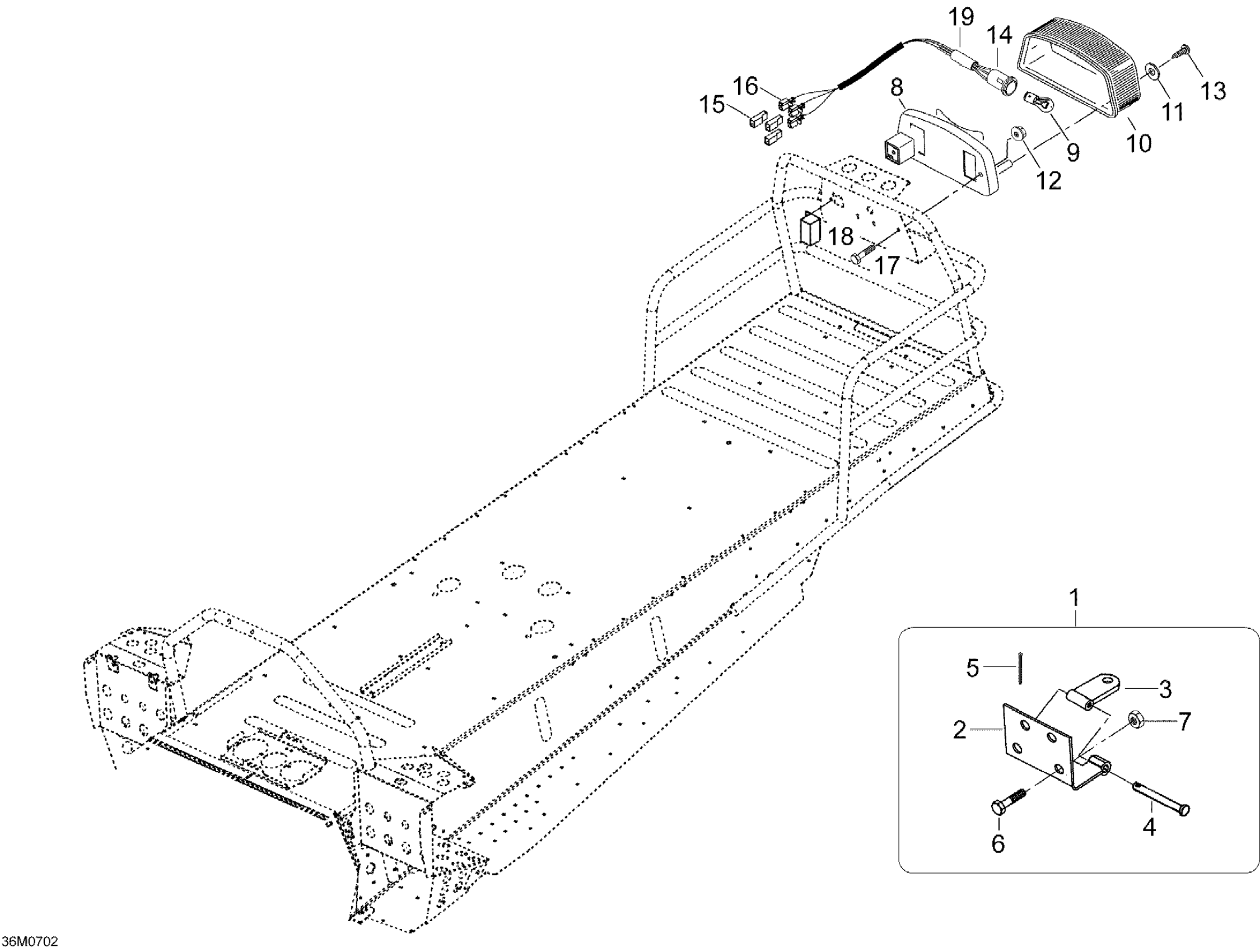

Ski-Doo Skandic SWT 550F, 2007 Luggage Rack Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Fitting Plate | Model- North America This part replaces M5344151.
5344151
Unavailable
3
TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.
548745
Unavailable
4
PIN-RETAINER - Call your local BRP dealership | North America
560309200
Unavailable
6
HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.
40336
Unavailable
7
Hex. Elastic Stop Nut M8
232581414
Unavailable
8
LIGHT HOUSING - Call your local BRP dealership
510004061
Unavailable
10
Lens
414513700
Unavailable
11
Washer - Call your local BRP dealership
414516400
Unavailable
12
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
13
Phillips Tapping Screw M3.9 X 25
209632540
Unavailable
14
Adapter
515175852
Unavailable
17
Hex. Screw M6 X 30
207063044
Unavailable
18
Adaptor
M5345713
Unavailable
19
Housing
M39023
Unavailable
