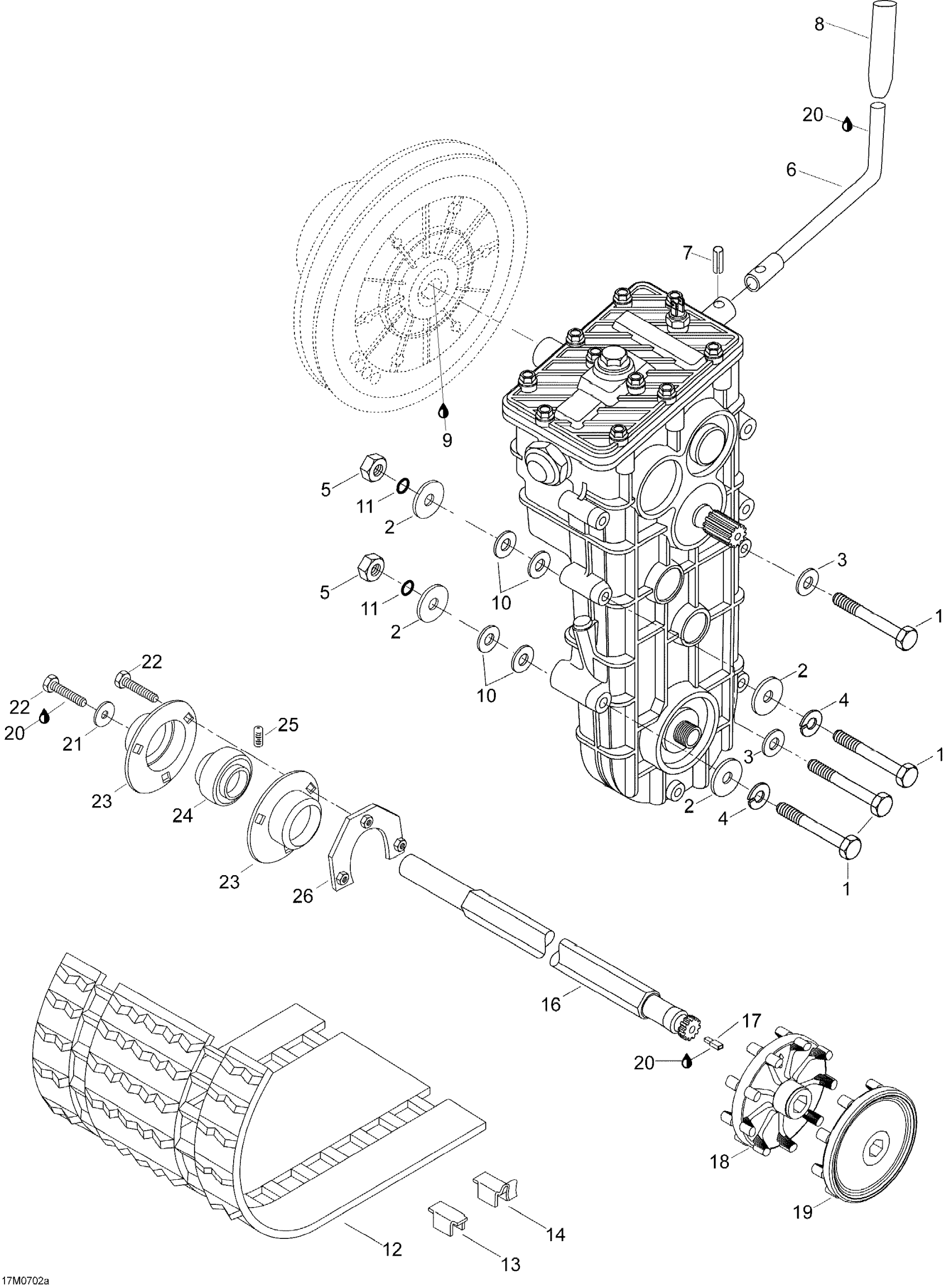

Ski-Doo Skandic SWT 550F, 2007 Drive System SWT 550 Diagram

#

Description
Price

1

Screw M8 X 80

M40012

Unavailable

2

Flat Washer 8 mm

234082410

$1.11

3

Flat Washer 8 mm

234081410

Unavailable

4

Lock Washer 8 mm

234181401

Unavailable

5

Hex. Elastic Stop Nut M8

232581414

Unavailable

6

Bras Vitesse *Arm-Shifter

M5340902

Unavailable

7

Pin Spring

M41008

Unavailable

8

Shift button This part replaces M28247.

28247

Unavailable

9

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

10

M8 Washer This part replaces M20077.

20077

Unavailable

11

O-RING - Call your local BRP dealership

506151140

Unavailable

12

Track Ass'y 600 X 3968 X 32 X 64 | Includes 3200 to 3200b

504153928

$1,449.99

13

CLEAT-GUIDE - Call your local BRP dealership

M5318323

Unavailable

14

CLEAT - Call your local BRP dealership

M5318322

Unavailable

16

Drive Axle

M5344243

Unavailable

17

Speed Drive Insert This part replaces M542013.

542013

Unavailable

18

SPROCKET - Call your local BRP dealership

414931800

$63.82

19

HALF SPROCKET - Call your local BRP dealership

415067400

Unavailable

20

Loctite 243, 10 ml

293800060

$20.77

21

Washer

M546336

Unavailable

22

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

23

Bearing House This part replaces M534430.

534430

Unavailable

24

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

25

BALL BEARING - Call your local BRP dealership | Includes 24 to 25

M31UC205

Unavailable

26

Fasten Ring Weld This part replaces M546421.

546421

Unavailable
