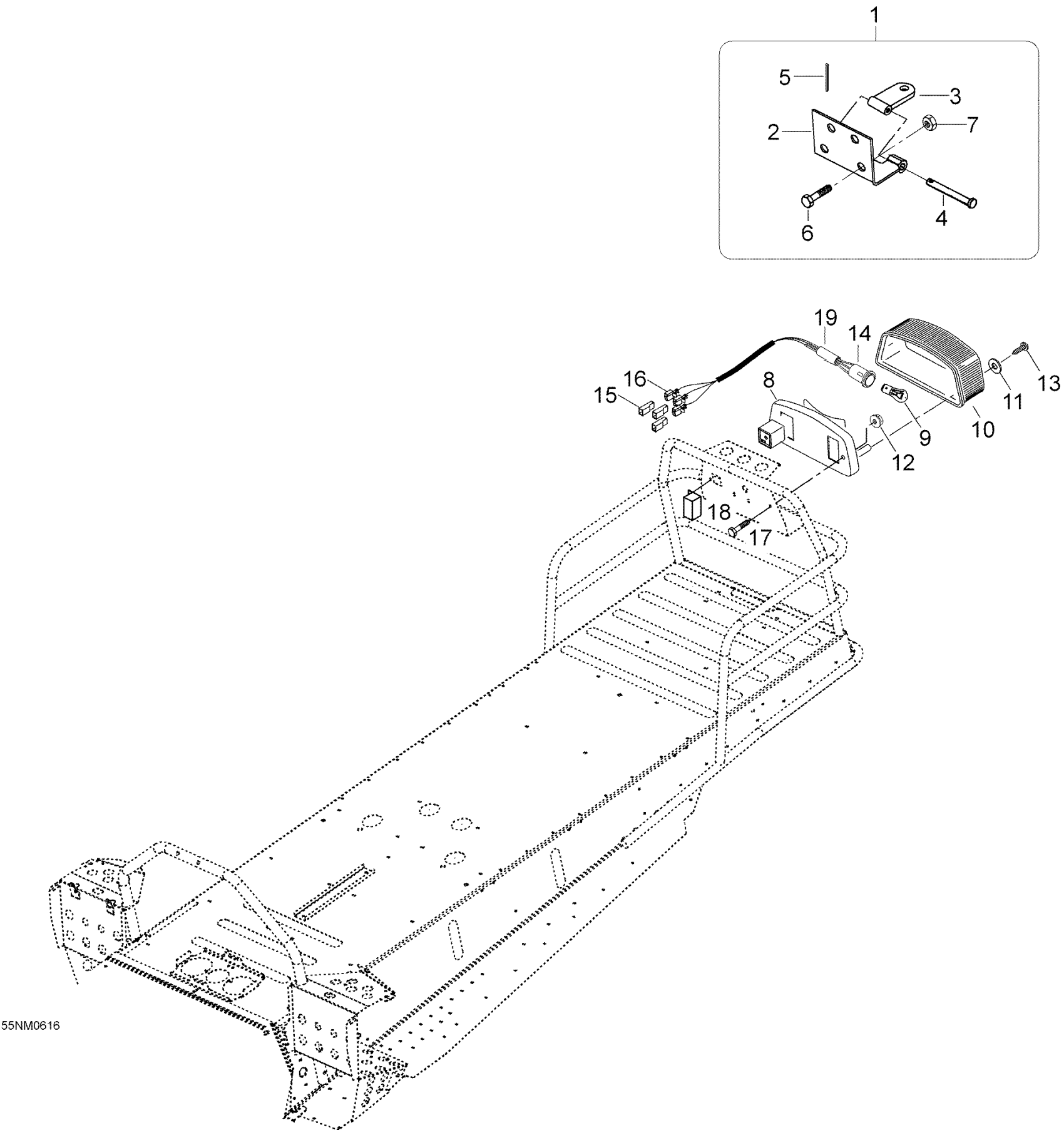

Ski-Doo Skandic SWT 550F, 2006 Frame and Components Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fitting Plate | Model- North America This part replaces M5344151.

5344151

$75.34

3

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

4

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

5

Cotter Pin

41031

$6.07

6

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

7

Hex. Elastic Stop Nut M8

232581414

$0.54

8

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

9

Bulb

520000758

$8.60

10

Lens

414513700

$26.09

11

Washer - Call your local BRP dealership

414516400

Unavailable

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

13

Phillips Tapping Screw M3.9 X 25

209632540

$1.12

14

Adapter

515175852

Unavailable

15

FEMALE TERMINAL - Call your local BRP dealership

409010600

Unavailable

16

Female Terminal Housing, 1 Circuit

409010400

$7.25

17

Hex. Screw M6 X 30

207063044

$1.12

18

Adaptor

M5345713

Unavailable

19

Housing

M39023

Unavailable
