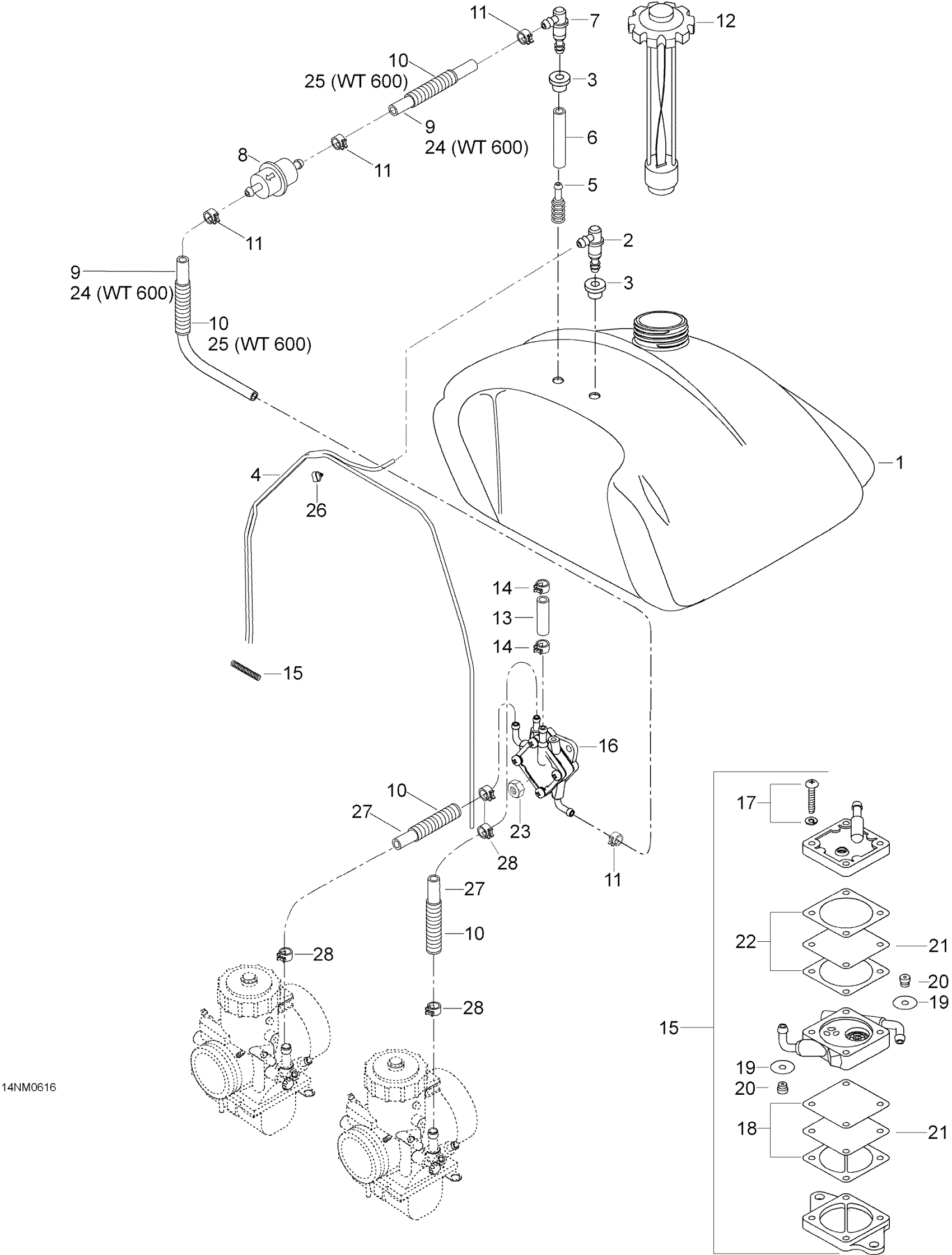

Ski-Doo Skandic SWT 550F, 2006 Fuel System 550 Diagram
#
Description
Price
1
Fuel Tank
M519393
Unavailable
2
Male Connector This part replaces M533535.
533535
Unavailable
3
Grommet
280000674
Unavailable
4
HOSE - Call your local BRP dealership
M39035
Unavailable
6
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
7
CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.
5341709
Unavailable
8
Fuel Filter This part replaces 414363600.
605352516
Unavailable
9
Hose 5/8 1000MM LONG - Call your local BRP dealership
219704397
Unavailable
10
HOUSING - Call your local BRP dealership
M28012
Unavailable
12
Cap Fuel Tank
605349994
Unavailable
13
Polyurethane Hose 10000Mm Long
219704410
Unavailable
14
Spring Clamp
414420700
Unavailable
15
SPRING - Call your local BRP dealership
414818200
Unavailable
16
FUEL PUMP - Call your local BRP dealership | SUV 550
403800600
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
20
VALVE - Call your local BRP dealership
275500042
Unavailable
22
GASKET - Call your local BRP dealership
404902400
Unavailable
23
Elastic Stop Nut M6
232561414
Unavailable
24
Not Available As Spare Parts
XXX
Unavailable
25
Not Available As Spare Parts
XXX
Unavailable
26
TUBE CLAMP - Call your local BRP dealership
513032923
Unavailable
27
Hose 5/8 1000MM LONG - Call your local BRP dealership
219704397
Unavailable
