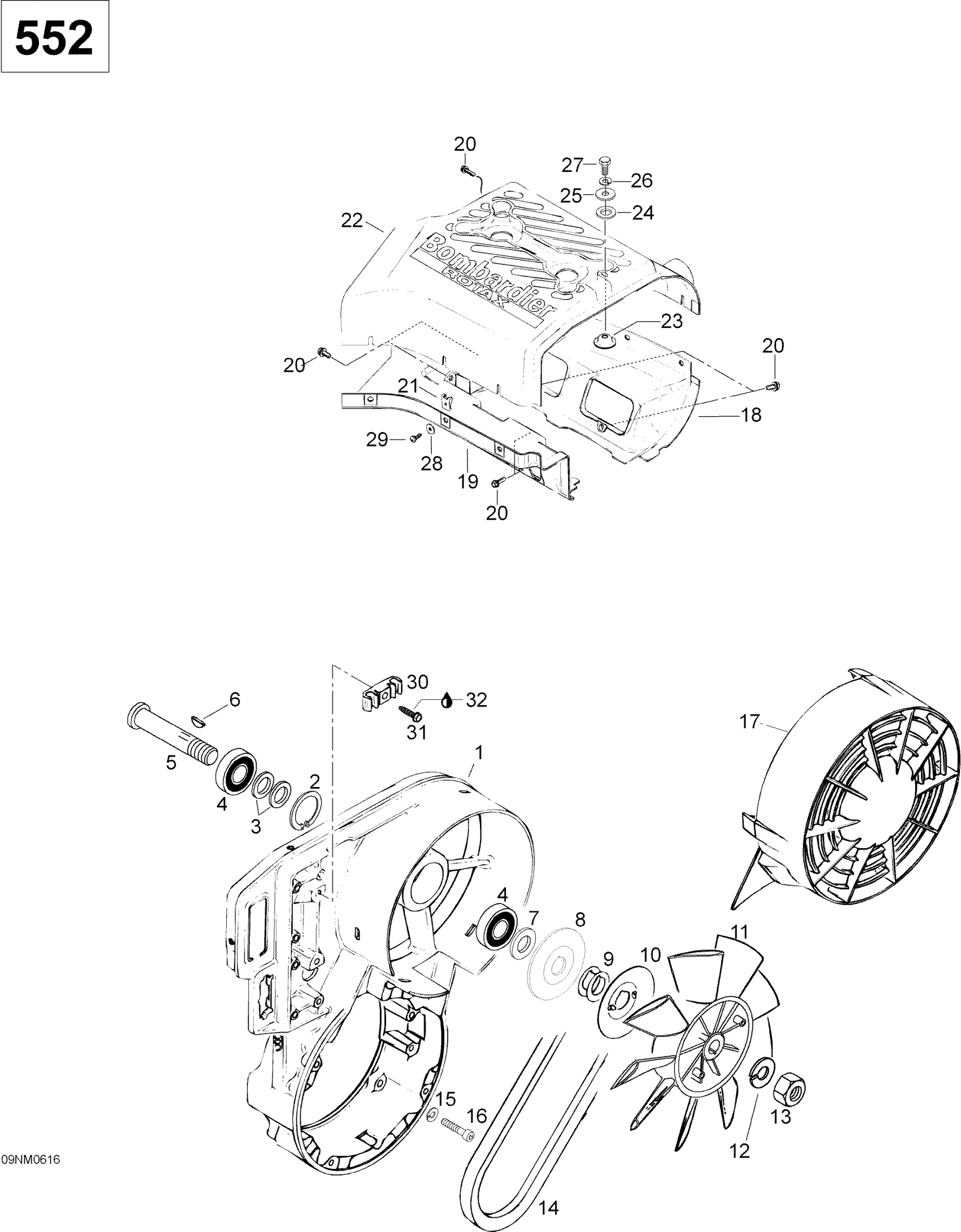

Ski-Doo Skandic SWT 550F, 2006 Fan 552 Diagram
#
Description
Price
1
Fan Housing This part replaces 420912203.
420912230
Unavailable
2
Lock Ring
420945880
Unavailable
3
Shim
420244585
Unavailable
4
Ball Bearing
420832161
Unavailable
5
Fan Axle This part replaces 420937940.
420937941
Unavailable
6
Woodruff Key
420246015
Unavailable
7
Spacer Bushing
420827650
Unavailable
8
Flange
420980496
Unavailable
9
Shim 0.5 mm
420827080
Unavailable
9
Shim 0.2 mm
420827082
Unavailable
10
Protection Washer
420980523
Unavailable
11
Fan
420866294
Unavailable
12
Lock Washer
420945756
Unavailable
13
Nut M16 This part replaces 420942285.
420942289
Unavailable
15
WASHER-LOCK DIN.128 - Call your local BRP dealership
420945751
Unavailable
16
Torx Flange Screw M6 X 30
420440647
Unavailable
18
Lower Cowling | 550 F.
420811392
Unavailable
19
LOWER COWLING INTAKE SIDE - Call your local BRP dealership
420811835
Unavailable
21
SPRING NUT U #10-24 - Call your local BRP dealership
417300005
Unavailable
22
CYLINDER COWL - Call your local BRP dealership
420811295
Unavailable
23
Cup Washer
420827817
Unavailable
24
Rubber Washer
420960865
Unavailable
25
Washer This part replaces 420227935.
420227936
Unavailable
26
Washer-Lock Din.128
420945832
Unavailable
27
Torx Flange Screw M8 X 16
420440852
Unavailable
28
FLAT WASHER - Call your local BRP dealership
420926180
Unavailable
29
Tapping Screw M4.8 X 16
417300006
Unavailable
30
CLAMP - Call your local BRP dealership
420860945
Unavailable
