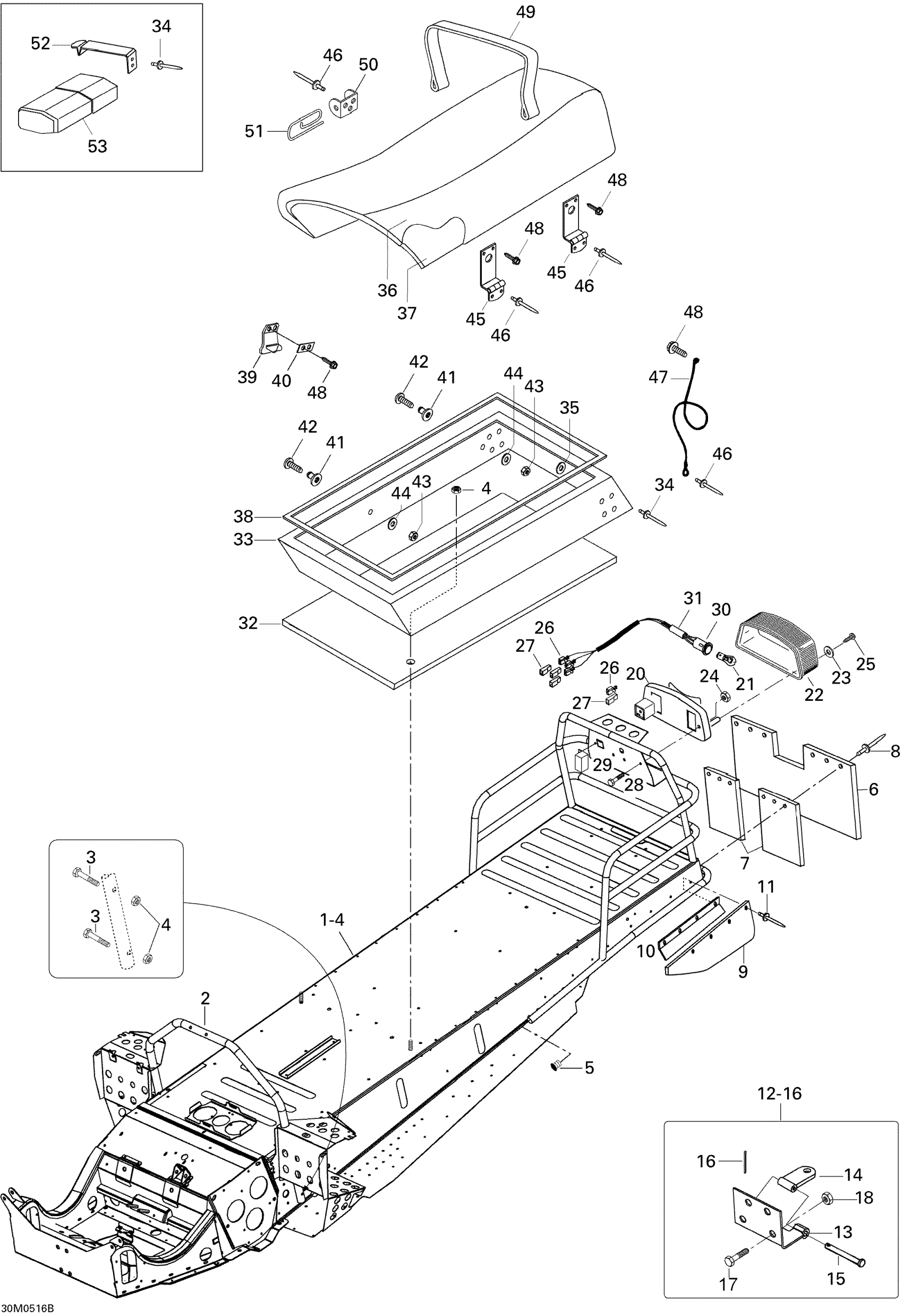

Ski-Doo Skandic SWT 550F, 2005 Frame And Seat 2 (550F SWT) Diagram

#

Description
Price

1

Frame Ass'y Swt | Includes 1 to 4

605150143

Unavailable

2

Handle Support

M5145379

Unavailable

3

Hex. Screw M6 X 40

207064044

$1.48

4

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

5

PLUG - Call your local BRP dealership

M28136

Unavailable

6

Snow Guard

605354720

Unavailable

7

Support

M5341770

Unavailable

8

Black Rivet

36037

$1.48

9

Snow Guard

M5340136

Unavailable

10

Support

M5340532

Unavailable

11

RIVET - Call your local BRP dealership

M36097

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Fitting Plate | Model- North America This part replaces M5344151.

5344151

Unavailable

14

TONGUE WELD - Call your local BRP dealership | Model- North America This part replaces M548745.

548745

Unavailable

15

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

16

Cotter Pin

41031

$6.26

17

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

18

Hex. Elastic Stop Nut M8

232581414

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

LIGHT HOUSING - Call your local BRP dealership

510004061

Unavailable

21

Bulb

520000758

$7.49

22

Lens

414513700

Unavailable

23

Washer - Call your local BRP dealership

414516400

Unavailable

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

25

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

26

FEMALE TERMINAL - Call your local BRP dealership

409010600

$5.35

27

Female Terminal Housing, 1 Circuit

409010400

$7.48

28

Hex. Screw M6 X 30

207063044

Unavailable

29

Adaptor

M5345713

Unavailable

30

Adapter

515175852

Unavailable

31

Housing

M39023

Unavailable

32

Foam

M5346331

Unavailable

33

Welded Seat Base Weld

M5246336

Unavailable

34

Rivet

36005

Unavailable

35

Washer 5,3 mm

20008

Unavailable

36

COVER SEAT - Call your local BRP dealership

605153077

Unavailable

37

Foam Seat

M5245239

Unavailable

38

Cushion

M390002

Unavailable

39

LATCH - Call your local BRP dealership

M5346383

Unavailable

40

PLATE - Call your local BRP dealership

M5446848

Unavailable

41

Counter Roller

605449087

$4.00

42

Slot Sc. M4 X 25 Din966M4.8Zne(1=10Pcs) This part replaces M40168.

40168

$2.06

43

Elastic Stop Nut M4

232541414

$0.48

44

Washer

20037

$2.05

45

HINGE - Call your local BRP dealership

M5446374

Unavailable

46

Rivet

36108

$1.85

47

Seat Retainer Cable

293750070

$10.23

48

Screw

M40888

Unavailable

49

Seat Belt

M538856

Unavailable

50

Seat Belt Latch

M548824

Unavailable

51

Spring This part replaces M548834.

548834

Unavailable

52

Spring

M539455

Unavailable

53

TOOL KIT - Call your local BRP dealership

605350525

Unavailable
