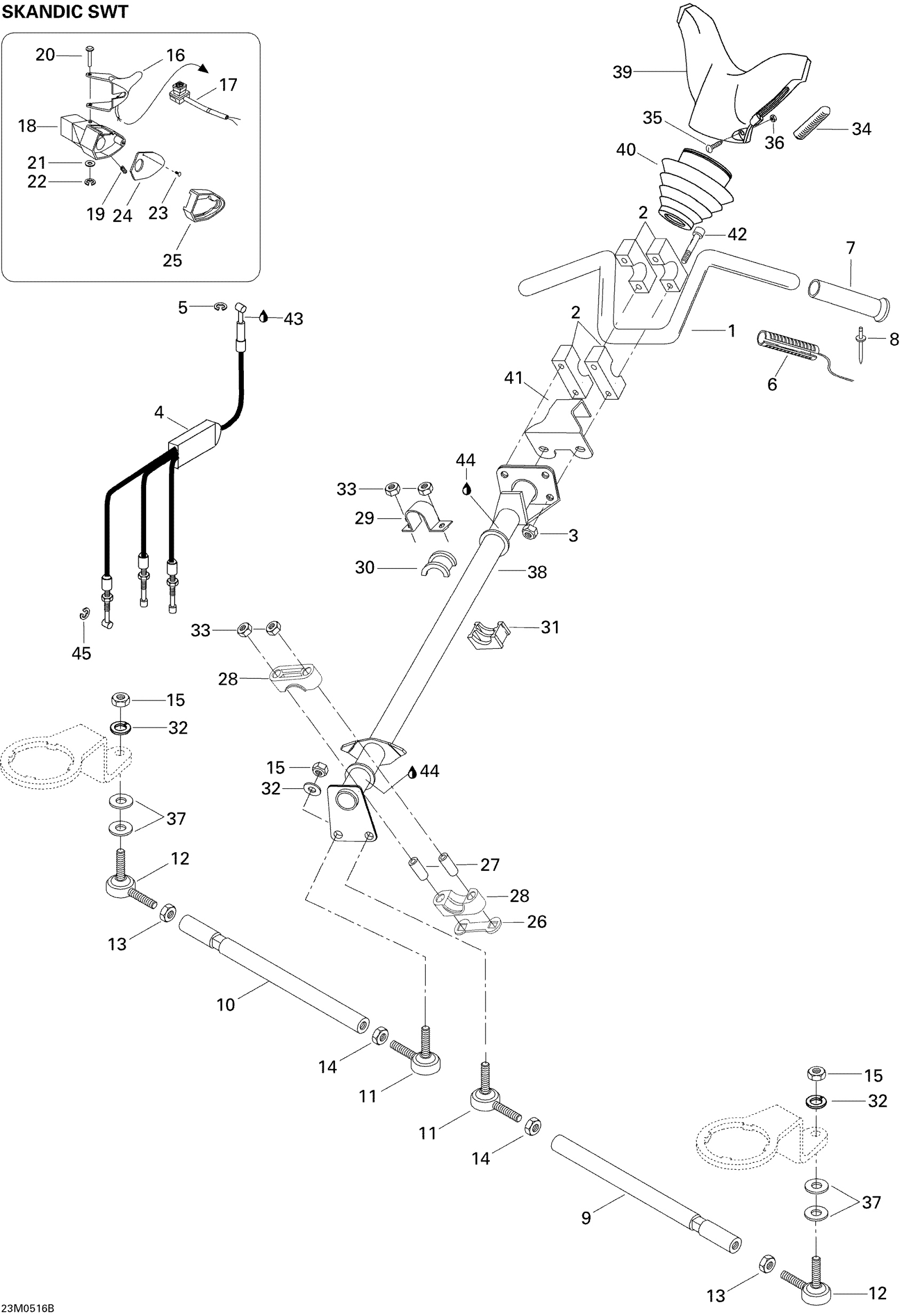

Ski-Doo Skandic SWT 550F, 2005 Steering System 550F SWT Diagram
#
1
BAR-HANDLE - Call your local BRP dealership
M529751
Unavailable
2
Support Guidon *Support-Steer.
M548448
Unavailable
3
Hex. Elastic Stop Nut M8
232581414
Unavailable
4
Throttle Cable - Call your local BRP dealership This part replaces M5244975.
5244975
Unavailable
5
Circlip
M31038
Unavailable
6
Heating Grip
515175664
Unavailable
8
Rivet
36005
Unavailable
9
Tie Rod LH
M5441066
Unavailable
10
Rh Tie Rod
M548983
Unavailable
11
LH JOINT BALL - Call your local BRP dealership
506151845
Unavailable
12
RH BALL JOINT - Call your local BRP dealership
506151492
Unavailable
13
RH NUT - Call your local BRP dealership
M33019
Unavailable
14
LH NUT - Call your local BRP dealership
M33017
Unavailable
15
Elastic Flange Nut M10
232501416
Unavailable
16
Handle Ass'y
512060214
Unavailable
22
Circlip | Model-RS
414439000
Unavailable
23
Screw
211000098
Unavailable
25
THROTTLE COVER - Call your local BRP dealership
572044600
Unavailable
26
Stopper Plate
506150600
Unavailable
27
Housing Bushing
506150500
Unavailable
28
Housing Half
506150400
Unavailable
29
Retaining Support
M5343381
Unavailable
30
BUSHING - Call your local BRP dealership
572064500
Unavailable
31
Bushing
572064400
Unavailable
32
Lock Washer
M20015
Unavailable
33
Hex. Flange Elastic Nut M8
233281414
Unavailable
34
Key Way
572023900
Unavailable
35
Screw
M40156
Unavailable
36
NUT M5 - Call your local BRP dealership
M33062
Unavailable
37
Washer
M31014
Unavailable
38
Main Tube
M5245968
Unavailable
39
Steering Padding
572023800
Unavailable
40
Bellow
M539033
Unavailable
41
Support
M5444196
Unavailable
42
Socket Head Screw M8 X 45
M40286
Unavailable
43
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
44
SYNTHETIC GREASE, 400 G - Call your local BRP dealership
219700417
Unavailable
