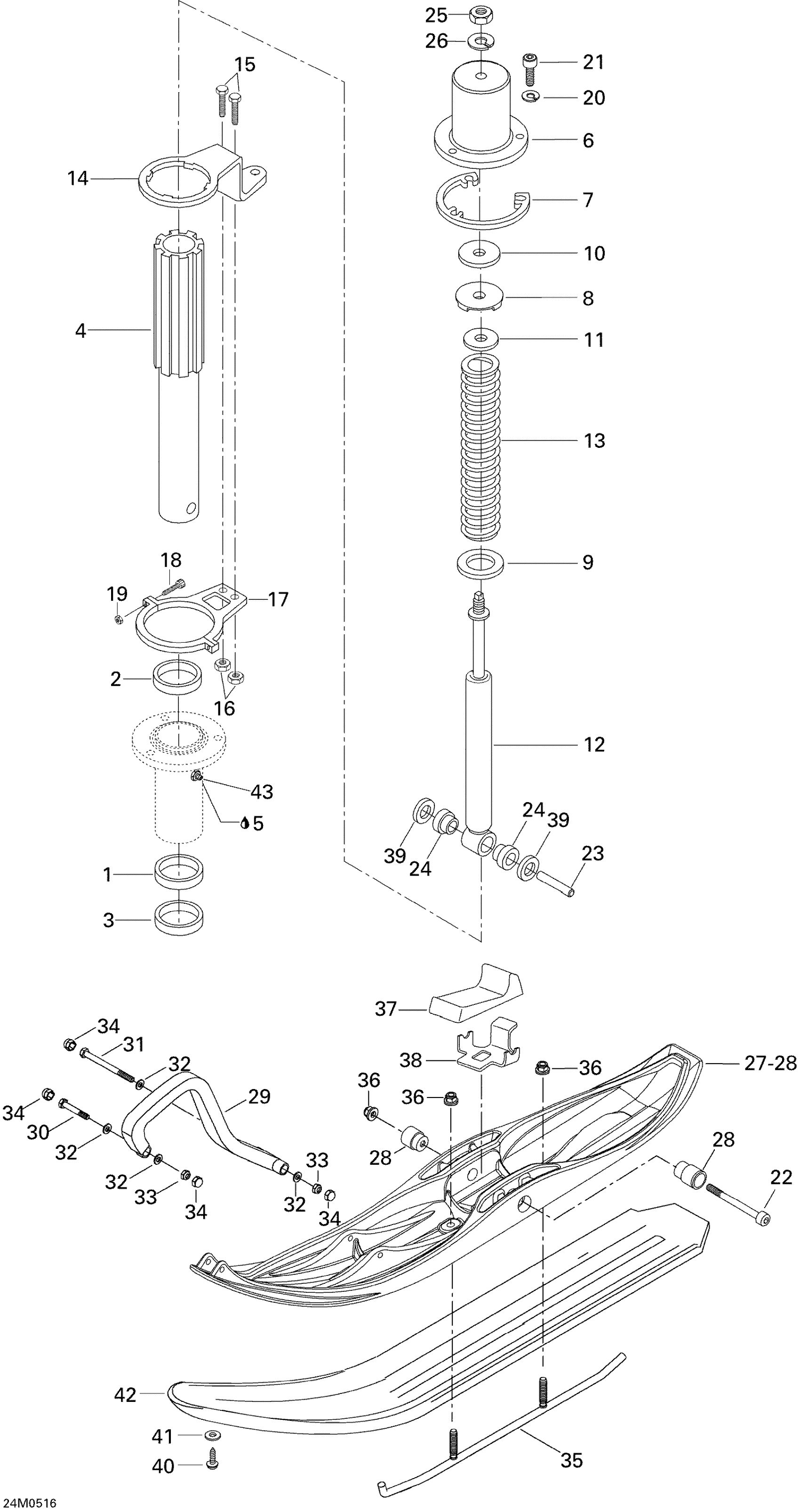

Ski-Doo Skandic SWT 550F, 2005 Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

Unavailable

2

Upper Cushion

414803100

Unavailable

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

6

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

7

SPACER - Call your local BRP dealership

503145600

$14.28

8

Stopper

570025800

Unavailable

9

Washer This part replaces M549493.

549493

Unavailable

10

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

SHOCK - Call your local BRP dealership

505070920

Unavailable

13

Spring This part replaces M5241330.

5241330

Unavailable

14

STEERING ARM - Call your local BRP dealership

M5244182

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Support Ass'Y This part replaces M5344180.

619380015

Unavailable

18

Screw

M40146

Unavailable

19

Elastic Stop Nut M4

232541414

$0.48

20

Lock Washer 8 mm

234181401

Unavailable

21

Socket Head Screw M8 X 20

205082044

$1.09

22

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

23

Ski Axle

505073209

Unavailable

24

Cushion

572034500

Unavailable

25

Elastic Locking Nut M10 X 1.5

233601416

$1.68

26

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

27

Ski | Europe models

505073034

Unavailable

28

Bushing | Europe models

605348392

Unavailable

29

Black, Handle

505070963

Unavailable

30

Hex. Screw M8 X 50

207085044

Unavailable

31

Hex. Screw M8 X 90

207089044

$2.82

32

Flat Washer 8 mm

234081410

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

Unavailable

34

Cover | Model-T3

28056

$5.52

35

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

Unavailable

36

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

37

Rubber Stopper

605348439

Unavailable

38

PLATE SUPPORT - Call your local BRP dealership

605348437

Unavailable

39

Bushing

605448594

Unavailable

40

SCREW-HEX. - Call your local BRP dealership

M40901

Unavailable

41

Washer

20037

$2.05

42

Ski Liner

605153964

Unavailable

43

Grease Fitting

M34019

Unavailable
