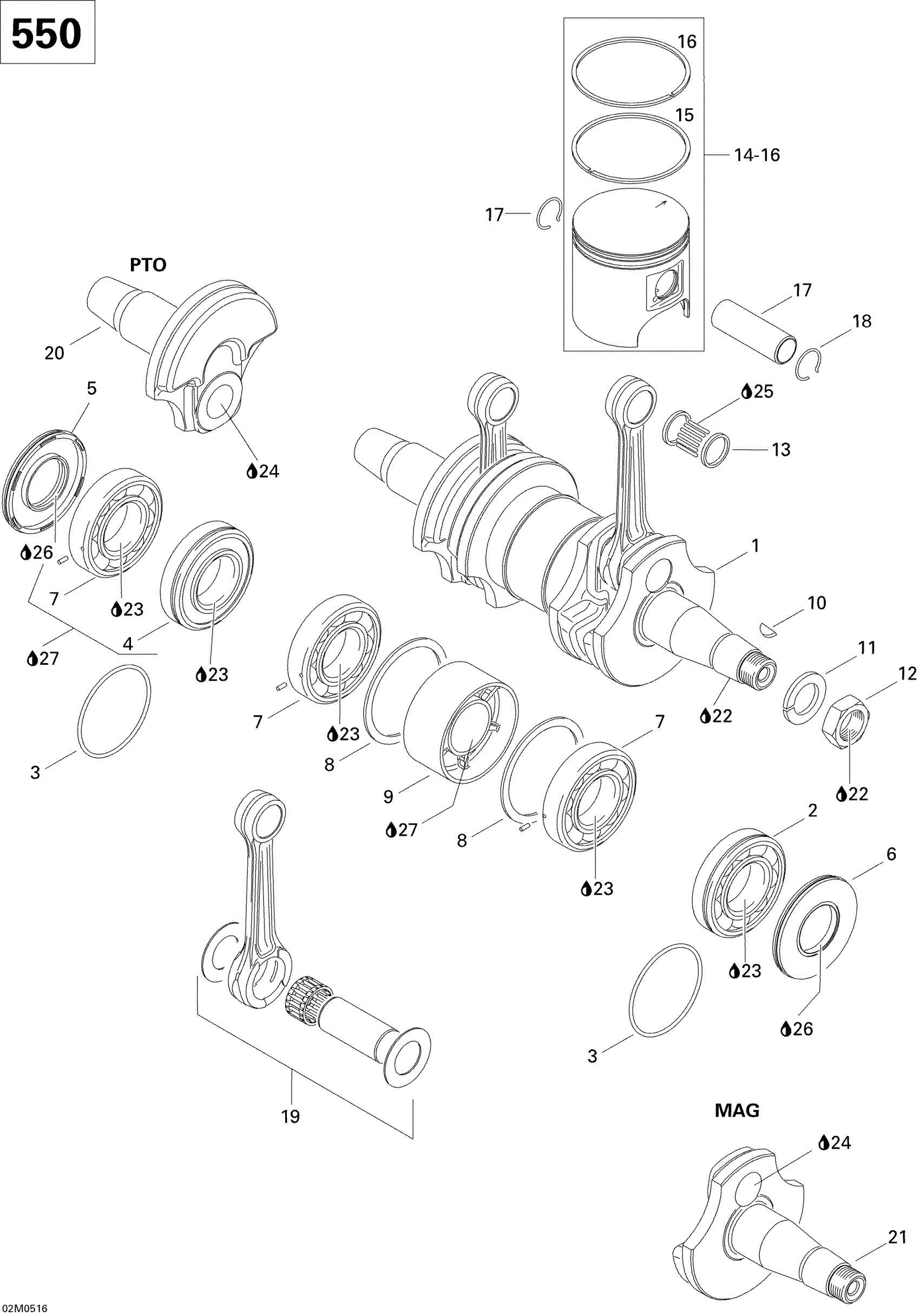

Ski-Doo Skandic SWT 550F, 2005 Crankshaft And Pistons 550F Diagram
#
Description
Price
1
CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.
420889066
Unavailable
1
CRANKSHAFT - Call your local BRP dealership | Includes 1 to 8 This part replaces 420889062.
420889066
Unavailable
2
Ball Bearing
420832571
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Ball Bearing
420832632
Unavailable
5
Oil Seal This part replaces 290831952.
420831952
Unavailable
6
Oil Seal
420831955
Unavailable
7
Ball Bearing
420832573
Unavailable
8
Retaining Disk
420927710
Unavailable
9
Labyrinth Sleeve
420850149
Unavailable
10
Woodruff Key
420246055
Unavailable
11
Lock Washer, 22 mm
420945759
Unavailable
12
Hex. Nut, M22 X 1.5
420842239
Unavailable
13
NEEDLE BEARING - Call your local BRP dealership
420832420
Unavailable
14
Piston Ass'y 75.86 mm, Standard | Includes 14 to 16
420889050
Unavailable
14
Piston Ass'y 76.11 mm, 1st Oversize | Includes 14 to 16
420889051
Unavailable
14
Piston Assy 76.36 mm, 2nd Oversize | Includes 14 to 16
420889052
Unavailable
15
Rectangular Ring, Standard
420815300
Unavailable
15
Rectangular Ring, 1st
420815301
Unavailable
15
Rectangular Ring, 2nd
420815302
Unavailable
16
Semi-Trapez Ring, Standard
420815155
Unavailable
16
Semi-Trapez Ring, 1st
420815156
Unavailable
16
Semi-Trapez Ring, 2nd
420815157
Unavailable
17
Piston Pin
420916407
Unavailable
18
Piston Circlip
420845106
Unavailable
19
Rod Repair Kit
420889064
Unavailable
20
CRANKSHAFT PTO SIDE - Call your local BRP dealership
420819181
Unavailable
21
Half Crankshaft (MAG)
420819213
Unavailable
23
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
24
Sealant Loctite 648
219703000
Unavailable
25
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
26
Petamo Grease, GHY133N, 400 g
420899271
Unavailable
27
Isoflex Grease, TOPAS NB52, 50 g
293550021
Unavailable
