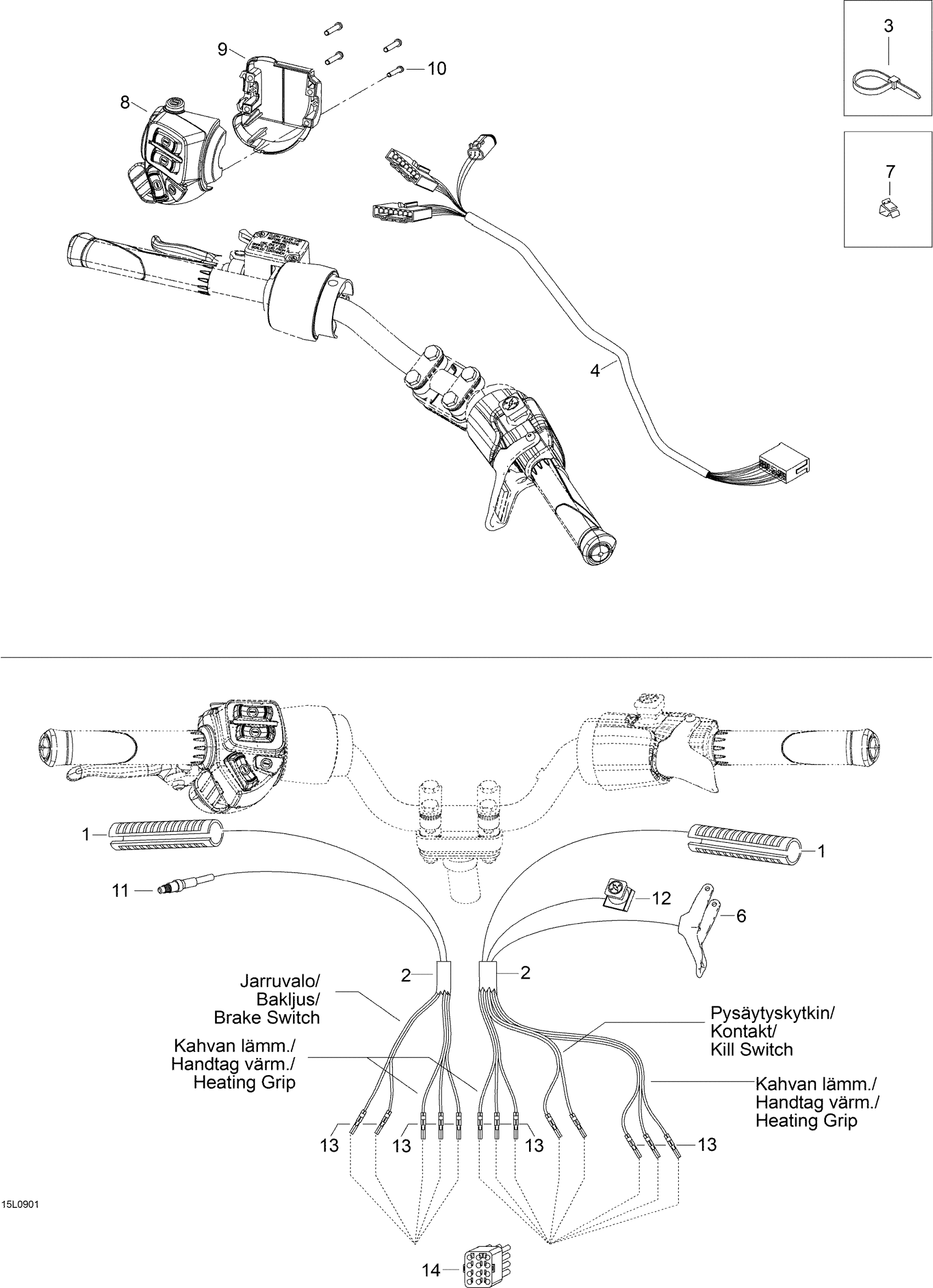

Ski-Doo Skandic SUV 600 Europe, 2009 Steering Harness _15L0901 Diagram

#

Description

Price

1

Heater grip element

515176193

Unavailable

2

Plastic Tubing d=6, musta - Call your local BRP dealership

39023

Unavailable

3

Tie Wrap 368 mm

293750008

$1.49

4

STEERING HARNESS - Call your local BRP dealership

605353266

Unavailable

5

MAIN HARNESS - Call your local BRP dealership

605354749

Unavailable

6

Throttle Handle

512059481

$78.99

7

Clip

414227300

$1.69

8

LH SWITCH HOUSING - Call your local BRP dealership

515176015

Unavailable

9

Switch Housing Plate

515175926

$21.99

10

Plastofast-screw 3.5 x 25

40903

Unavailable

11

Microswitch

507032366

$104.99

12

Kill Switch

515175410

Unavailable

13

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

14

Male connector housing (15-circuit)

42617

Unavailable
