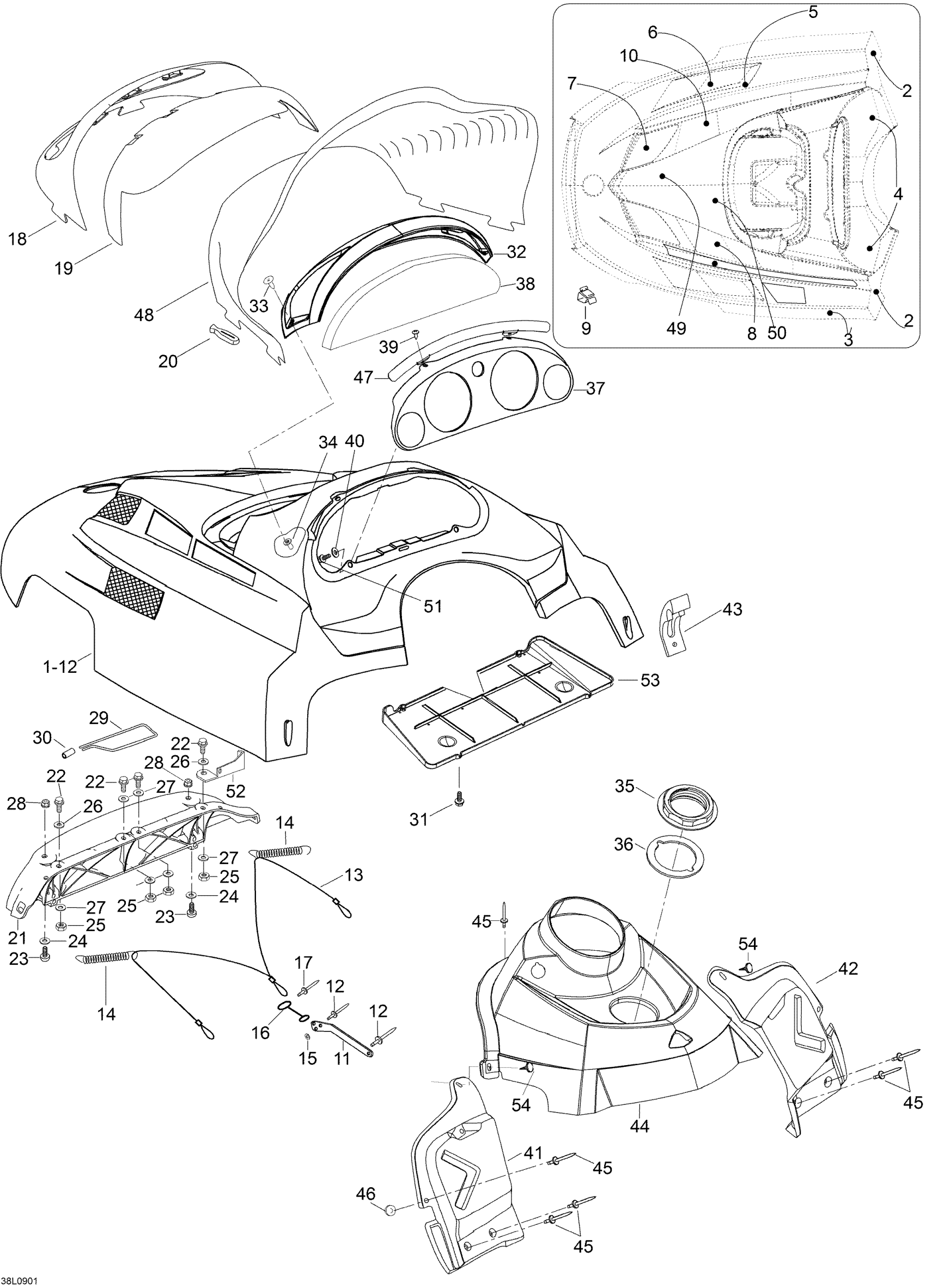

Ski-Doo Skandic SUV 600 Europe, 2009 Hood And Console _38L0901 Diagram

#

Description
Price

1

HOOD PRE ASS'Y, YELLOW - Call your local BRP dealership

605155308

$1,874.99

2

ISOLATION REAR LH - Call your local BRP dealership

605350906

Unavailable

2

ISOLATION REAR RH - Call your local BRP dealership

605350907

Unavailable

3

ISOLATION REAR RH - Call your local BRP dealership

605350908

$29.20

4

LOWER ISOLATION REAR LH - Call your local BRP dealership

605350909

$28.43

4

UPPER ISOLATION REAR RH - Call your local BRP dealership

605350910

Unavailable

5

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable

6

LH UPPER GRILL - Call your local BRP dealership

605350923

Unavailable

6

Cover

605355758

Unavailable

7

LH LOWER GRILL - Call your local BRP dealership

605350925

Unavailable

7

RH LOWER GRILL - Call your local BRP dealership

605350926

Unavailable

8

LH GRILL - Call your local BRP dealership

605350927

Unavailable

9

Edge Clip

517302785

$0.70

10

ISOLATION REAR CENTER LH - Call your local BRP dealership

605350911

$29.20

11

BRACKET - Call your local BRP dealership

605452657

$12.77

12

Rivet

36002

Unavailable

13

Retainer Cable

605351372

Unavailable

14

Spring This part replaces M5442675.

5442675

$12.95

15

Washer A4,3 DIN125 -St m Zne(1=10pcs) - Call your local BRP dealership

20001

$14.72

16

Retainer Cable Clip - Call your local BRP dealership

5442870

$12.95

17

Rivet Profix 4.0x13 Al musta(1=50pcs) - Call your local BRP dealership

36097

Unavailable

18

HEADLAMP MOULDING, DEEP BLACK - Call your local BRP dealership

517302158

$69.97

19

WINDSHIELD SUPPORT - Call your local BRP dealership

517302003

Unavailable

20

Windshield Latch

570023800

$3.58

21

Hinge

517302631

$46.12

22

Hex. screw screw M6 x 20

40030

Unavailable

23

Socket head screw M6 x 20

40381

Unavailable

24

Washer

20117

$5.22

25

Elastic Stop Nut M6

232561434

$1.55

26

Washer A6,4

20003

Unavailable

27

Flat Washer 6 mm

234062410

$0.64

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Pin

605454779

Unavailable

30

BUSHING - Call your local BRP dealership

605454780

Unavailable

31

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

32

COVER - Call your local BRP dealership

605151832

Unavailable

33

Handle Screw, low, M4 x 18 Black(1=10pcs - Call your local BRP dealership

40061

$1.37

34

Well-nut

28051

Unavailable

35

CONSOLE NUT - Call your local BRP dealership

517302043

Unavailable

36

Gasket - Call your local BRP dealership

5447116

$8.51

37

INDICATOR SUPPORT - Call your local BRP dealership

605354134

Unavailable

38

FILTER - Call your local BRP dealership

605352583

Unavailable

39

Screw 4,2 x 19

40888

Unavailable

40

Washer 4mm

20039

Unavailable

41

LH CONSOLE - Call your local BRP dealership

605251384

Unavailable

42

RH CONSOLE - Call your local BRP dealership

605251922

$81.51

43

Hood Latch

517302152

$15.35

44

CONSOLE, MIDDLE - Call your local BRP dealership

605251387

Unavailable

45

Black Rivet

36037

$1.48

46

Washer 5,3 mm

20008

$0.72

47

SUPPORT PLATE - Call your local BRP dealership

605352586

$18.43

48

Windshield

605152073

Unavailable

49

ISOLATION CENTER LH - Call your local BRP dealership

605350912

Unavailable

49

ISOLATION CENTER RH - Call your local BRP dealership

605350913

Unavailable

50

HEAT PROTECTOR - Call your local BRP dealership

605350922

Unavailable
