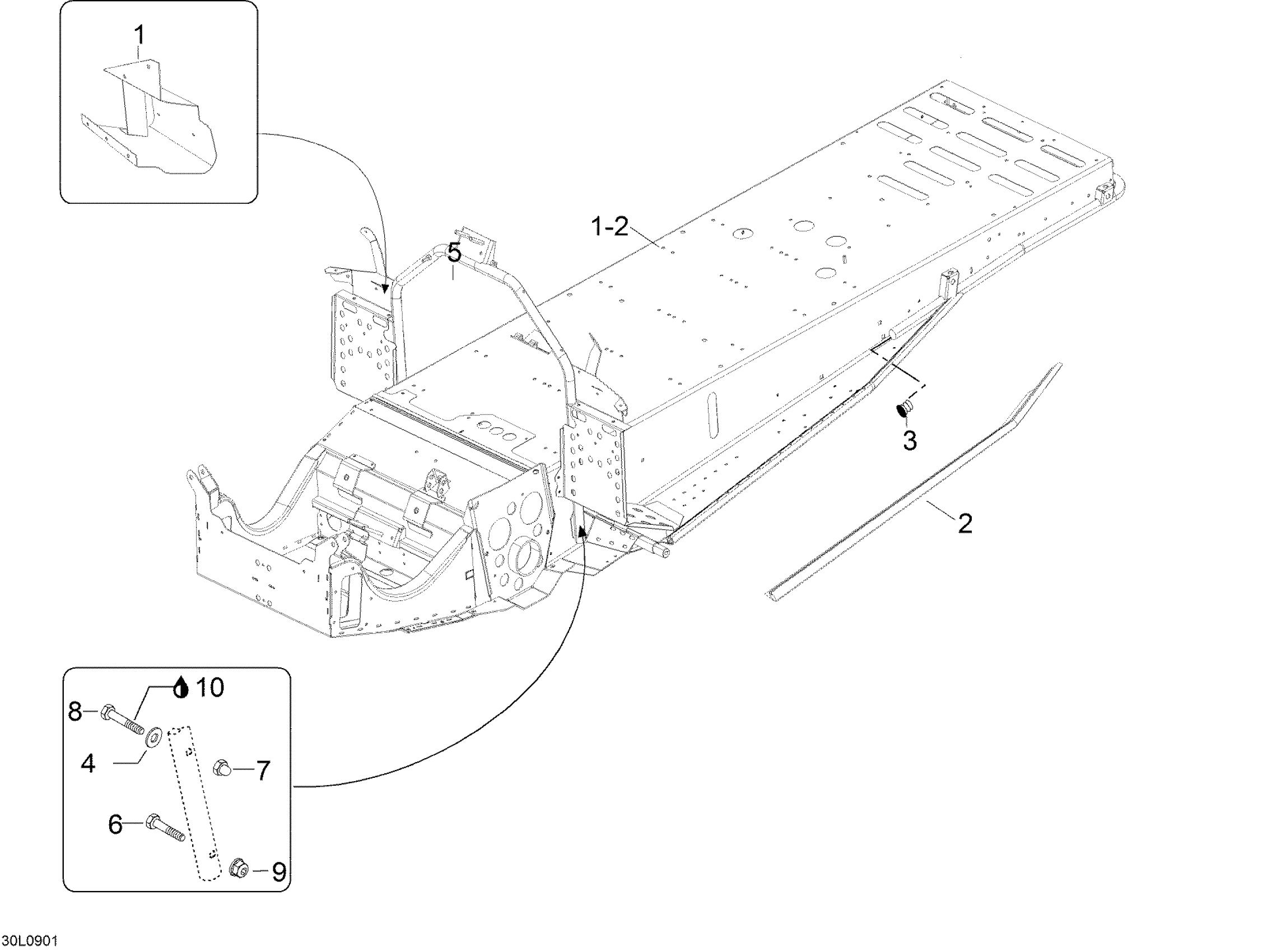

Ski-Doo Skandic SUV 600 Europe, 2009 Frame _30L0901 Diagram

#

Description

Price

-

Frame Ass'y | Includes 1 to 2

605155129

Unavailable

1

RH Toe Rest

605350839

Unavailable

1

LH TOE REST - Call your local BRP dealership

605350840

$29.20

2

LH REINFORCEMENT - Call your local BRP dealership

605250773

$46.89

2

RH REINFORCEMENT - Call your local BRP dealership

605250774

$46.89

3

Plug

28210

Unavailable

4

Washer A6,4

20003

Unavailable

5

Steering Support

605151693

Unavailable

6

Hex. screw M6 x 35

40003

Unavailable

7

Nut M6

33051

Unavailable

8

Hex. screw M6 x 40

40002

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Loctite 243, 10 ml

293800060

$20.77
