Partiron

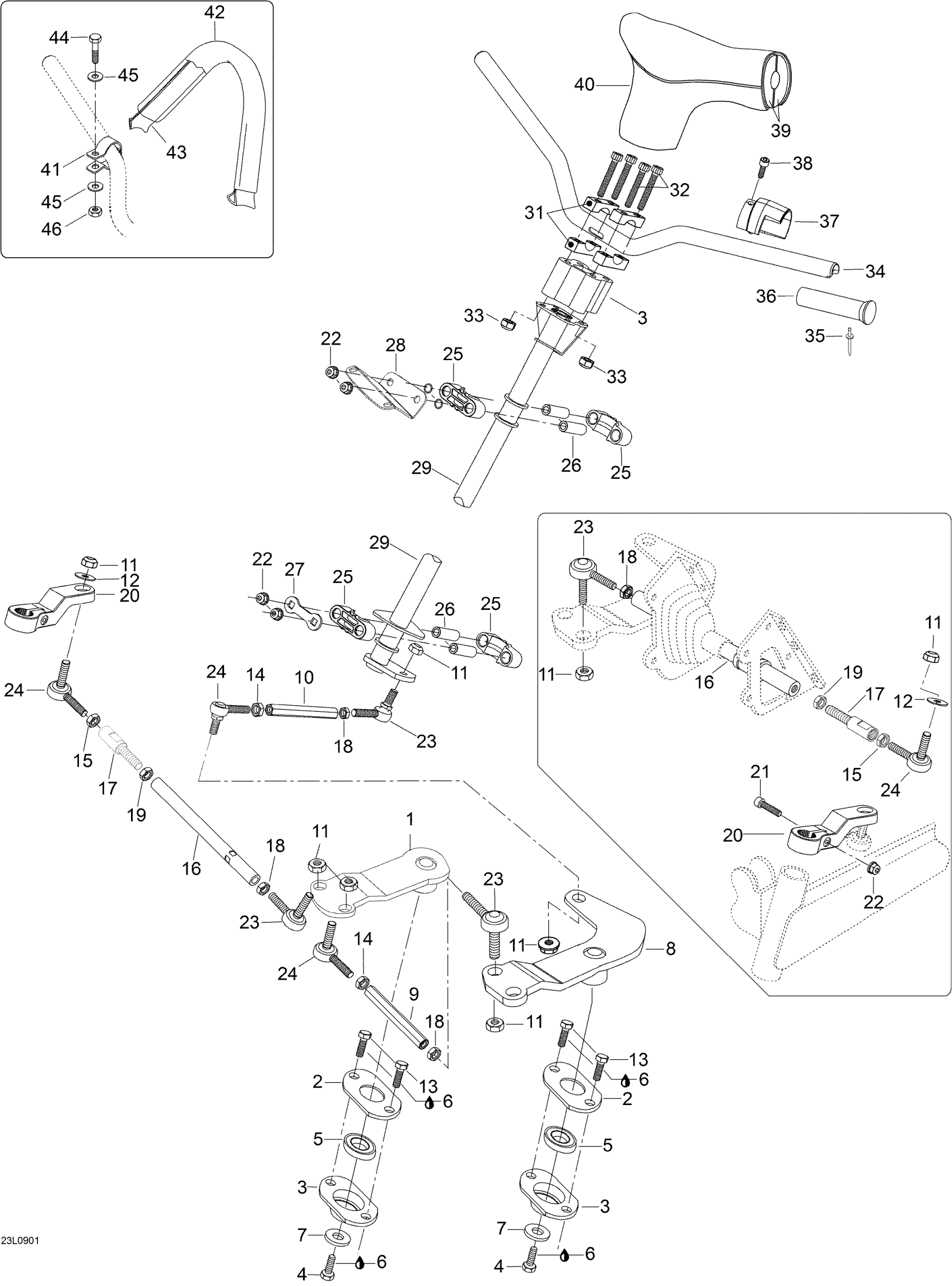

Ski-Doo Skandic SUV 600 Europe, 2009 Steering System _23L0901 Diagram

#

Description
Price

1

LH WELDED LEVER - Call your local BRP dealership

605348403

$73.82

2

COVER PLATE - Call your local BRP dealership

5345380

$11.22

3

Bearing Support

605350644

$38.43

4

Hex. screw M8 x 16

40337

Unavailable

5

Ball Bearing

293350115

$11.15

6

Loctite 243, 10 ml

293800060

$20.77

7

Washer

5446279

Unavailable

8

LH LEVER - Call your local BRP dealership

605351764

Unavailable

9

SHORT TIE ROD - Call your local BRP dealership

605448308

Unavailable

10

TIE-ROD - Call your local BRP dealership

605450220

$28.43

11

Elastic stop nut M10

33023

Unavailable

12

WASHER M10 - Call your local BRP dealership

20005

Unavailable

13

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

$1.94

14

Nut M10

33019

Unavailable

15

RH Threaded Hex. Jam Nut M10

732610010

$0.72

16

ROD_LINK - Call your local BRP dealership

605450794

Unavailable

17

ADJUSTER - Call your local BRP dealership

605450793

Unavailable

18

Nut M10x1.25VASDIN934 m8 ZNe(1=10pcs) - Call your local BRP dealership

33017

Unavailable

19

LH Threaded Hex. Jam Nut M10

250100016

$0.72

20

Steering arm - Call your local BRP dealership

5348261

Unavailable

21

Socket head screw M8 x 35

40828

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

24

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

25

Housing Half

506150400

$7.31

26

Housing Bushing

506150500

$7.49

27

Stopper Plate

506150600

$4.15

28

CONSOLE HOLDER - Call your local BRP dealership

605352322

Unavailable

29

MAIN TUBE - Call your local BRP dealership

605251694

Unavailable

30

EXTENSION - Call your local BRP dealership

605349584

Unavailable

31

Support of Bar - Call your local BRP dealership

548448

$10.06

32

Socket head screw M8 x 100

40124

Unavailable

33

Hex. Elastic Stop Nut M8

232581414

$0.47

34

HANDLE BAR - Call your local BRP dealership

605251368

$85.35

35

Rivet

36005

$2.02

36

Grip | WAKE This part replaces M5340464.

506152483

$9.85

37

ADAPTATOR - Call your local BRP dealership

506151566

$9.20

38

Socket head screw M8 x 20

40390

Unavailable

39

FOAM, FRONT - Call your local BRP dealership

605252110

$36.89

39

FOAM, REAR - Call your local BRP dealership

605252111

Unavailable

40

STEERING COVER - Call your local BRP dealership

605254571

$148.43

41

Black Support Plate

506152536

$8.60

42

Strap Ass'y | Package XMR

506152115

$43.05

43

Strap Ass'y | Package XMR

506152115

$43.05

44

Hex. screw M6 x 25

40031

Unavailable

45

Washer A6,4

20003

Unavailable

46

Elastic Stop Nut M6

232561434

$1.55
