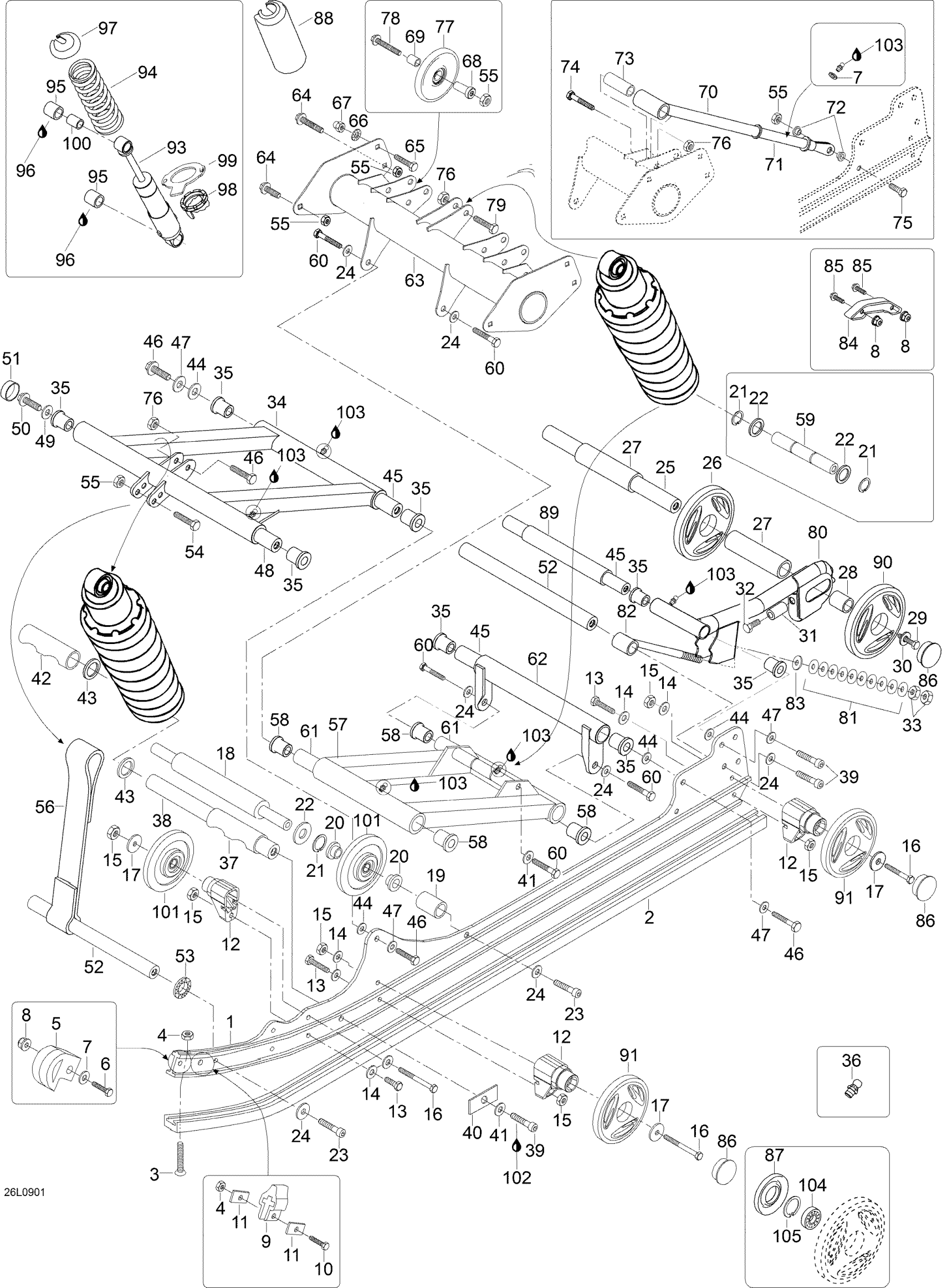

Ski-Doo Skandic SUV 600 Europe, 2009 Rear Suspension _26L0901 Diagram

#

Description
Price

1

RAIL_SUSPENSION MACHINED - Call your local BRP dealership

605253573

Unavailable

2

Slide Shoe

605355362

$27.66

3

Socket head screw M6 x 60

40059

Unavailable

4

Elastic Stop Nut M6

232561434

$1.55

5

Runner Protector

605348954

$17.66

6

Hex. screw M6 x 25

40031

Unavailable

7

Washer A6,4

20003

Unavailable

8

Not Available As Spare Part - Friction Washer

Unavailable

9

STOPPER-RUBBER - Call your local BRP dealership

5448216

$6.75

10

Hex. screw M6 x 30

40032

Unavailable

11

Plate

548470

Unavailable

12

SUPPORT - Call your local BRP dealership

605450182

Unavailable

13

He. screw M8 x 25

40037

Unavailable

14

Flat Washer 8 mm

234081410

$0.69

15

Hex. Elastic Stop Nut M8

232581414

$0.47

16

M8 x 75DIN 931m8.8Zne(1=10pcs) - Call your local BRP dealership

40089

$5.40

17

Washer

503183100

$3.08

18

Shaft, supportwheel - Call your local BRP dealership This part replaces M5347950.

5347950

Unavailable

19

Sleeve - Call your local BRP dealership This part replaces M5447951.

5447951

Unavailable

20

Cushion

503189534

$4.55

21

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

$4.28

22

Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership

31091

Unavailable

23

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.66

24

WASHER M10 - Call your local BRP dealership

20005

Unavailable

25

SHAFT - Call your local BRP dealership

5343284

Unavailable

26

Thin Wheel 165

503189478

$49.97

27

Sleeve This part replaces M5444096.

5444096

$27.66

28

Spacer - Call your local BRP dealership

5444098

$16.89

29

Hex. screw M10 x 35

40050

Unavailable

30

Washer

503183300

$5.68

31

Spacer

605633002

$1.48

32

Hex. screw M10 x 100

40239

Unavailable

33

Hex. Nut M10 X 1.5

232006414

$1.11

34

Front arm - Call your local BRP dealership This part replaces M5147672.

5147672

Unavailable

35

Cushion This part replaces M31024.

31024

$12.83

36

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

37

Limiter - Call your local BRP dealership This part replaces M5347718.

5347718

Unavailable

38

Shaft This part replaces M5347726.

5347726

$78.43

39

Screw Socket HD.DIN 912 This part replaces 205004544.

40134

$1.66

40

Support plate This part replaces M5447940.

5447940

$11.34

41

Lock Washer D10

20068

$1.97

42

Sleeve - Call your local BRP dealership

5346649

Unavailable

43

Shim Ring This part replaces M31013.

31013

$7.31

44

Shim This part replaces M20116.

20116

$2.05

45

Lower Shaft, Front Arm This part replaces M5347713.

5347713

$69.20

46

Hex. screw M10 x 45

40016

Unavailable

47

Lock Washer

512056700

$3.11

48

Upper Shaft This part replaces 605348606.

5347719

$78.43

49

Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership

20090

Unavailable

50

Hex. screw M12 x 60

40243

Unavailable

51

Cap

5448025

Unavailable

52

Shaft This part replaces M5347717.

5347717

$46.12

53

Snapring

4181158

Unavailable

54

Hex. Screw M8 X 45

207084544

$1.25

55

Hex. Elastic Stop Nut M8

232581414

$0.47

56

STOPPER STRAP - Call your local BRP dealership This part replaces M5447919.

5447919

$41.51

57

Rear Arm Weld Light

605349313

Unavailable

58

Flange Bearing (Cushion) This part replaces M31027.

31027

$23.82

59

REARSHOCK SHAFT - Call your local BRP dealership

605451897

Unavailable

60

Hex. screw M10 x 40

40014

Unavailable

61

SHAFT - Call your local BRP dealership This part replaces M5346865.

5346865

Unavailable

62

Rear swing - Call your local BRP dealership

5347668

$70.74

63

UPPER ARM - Call your local BRP dealership

605249988

$334.58

64

Lock screw M8 x 20

40058

Unavailable

65

Lock screw M8 x 16

40056

Unavailable

66

Washer

20072

Unavailable

67

Cap Nut M8 DIN1587-6 Zne(1=10pcs) - Call your local BRP dealership

33044

$4.14

68

FLANGED SLEEVE - Call your local BRP dealership

605450372

Unavailable

69

SLEEVE - Call your local BRP dealership

605450373

Unavailable

70

Poker tube This part replaces M5347851.

5347851

$54.58

71

poker shaft weld - Call your local BRP dealership

5347852

$55.35

72

SLIDE BEARING - Call your local BRP dealership

5447853

Unavailable

73

Bearing sleeve - Call your local BRP dealership This part replaces M5447848.

5447848

Unavailable

74

Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership

40011

Unavailable

75

Hex. Screw M10 X 35

207103544

$1.42

76

Elastic stop nut. M10

33012

Unavailable

77

Idler Wheel - Call your local BRP dealership

46027

$45.35

78

Hex. screw M8 x 70

40088

Unavailable

79

Hex. screw M10 x 50

40017

Unavailable

80

RH Extension

605251782

Unavailable

80

LH Extension

605251781

$123.05

81

Cup Spring This part replaces M25004.

25004

$3.43

82

Eye bolt adjuster This part replaces M5447373.

5447373

Unavailable

83

Flat Washer 10 mm This part replaces M20011.

234002410

$1.25

84

Sliding Pad

503192731

Unavailable

85

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

86

Wheel Cap

570063600

$3.28

87

LABYRINTH SEAL - Call your local BRP dealership

572089000

Unavailable

88

Shock protector

5346754

$29.20

89

Sleeve

605448429

$69.97

90

Wheel 165 mm

503190856

$49.97

91

WHEEL 139 MM ASS'Y, FULL MOON - Call your local BRP dealership

503190796

$29.20

92

Not Available As Spare Part - Friction Washer

Unavailable

92

Not Available As Spare Part - Friction Washer

Unavailable

93

SHOCK, FRONT ARM - Call your local BRP dealership

23204

$198.43

93

Shock, rear arm This part replaces M23152.

23152

$238.43

94

SPRING, FRONT ARM - Call your local BRP dealership This part replaces M25065.

25065

Unavailable

94

Spring, rear arm

230079

Unavailable

95

Cushion This part replaces M31094.

31094

$10.08

96

Glue. Loctite

320006

Unavailable

97

Spring Seat

230076

Unavailable

98

Adjusting Cam

230078

$7.31

99

ARM ADJUSTING ASS'Y - Call your local BRP dealership

605348748

Unavailable

100

Bushing This part replaces M5446652.

5446652

$7.40

101

Wheel 139 mm Ass'y

503190798

$32.28

102

Loctite 243, 10 ml

293800060

$20.77

103

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

104

Ball Bearing

293350115

$11.15

105

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
