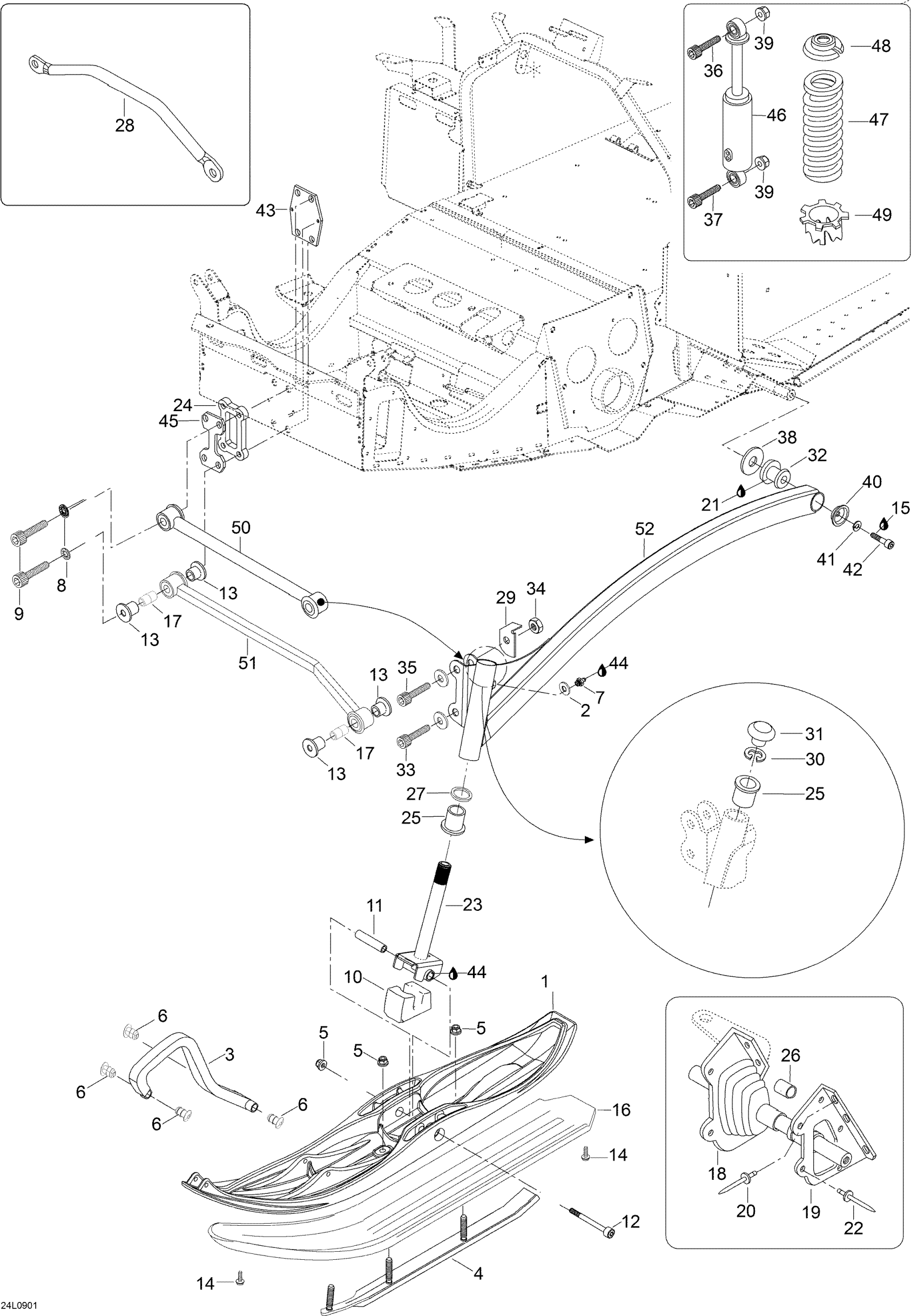

Ski-Doo Skandic SUV 600 Europe, 2009 Front Suspension And Ski _24L0901 Diagram

#

Description
Price

1

Ski | Europe models

505073034

$233.05

2

Washer A6,4

20007

Unavailable

3

Black, Handle

505070963

$35.35

4

CARBIDE SKI RUNNER ASS'Y - Call your local BRP dealership

619400006

Unavailable

5

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

$1.49

6

Retainer 17mm long

505071812

$4.43

7

Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership This part replaces M34011.

34011

Unavailable

8

Lock washer

20074

Unavailable

9

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership This part replaces 40370.

205027544

Unavailable

10

SKI STOPPER - Call your local BRP dealership

605348458

Unavailable

11

Spacer

506133300

$19.97

12

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52

13

CUSHION - Call your local BRP dealership

506149100

Unavailable

14

PLASTOFAST SCREW 6X18 - Call your local BRP dealership

605640019

Unavailable

15

Loctite 243, 10 ml

293800060

$20.77

16

Ski Liner

605153964

$109.99

17

BUSHING - Call your local BRP dealership

605450024

$19.20

18

RH Tie Rod Cap

570024800

Unavailable

18

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

19

PLATE COVER RH - Call your local BRP dealership

605355206

$21.51

19

PLATE COVER LH - Call your local BRP dealership

605355205

$21.51

20

Rivet

36036

$1.65

21

Grease, Super Lube

293550030

$24.67

22

Rivet This part replaces M36009.

36009

$1.06

23

SKI LEG - Call your local BRP dealership

505072001

$156.12

24

Spacer 17.5

605350191

Unavailable

25

Cushion

505070003

$7.40

26

BUSHING - Call your local BRP dealership

572036500

Unavailable

27

WASHER - Call your local BRP dealership

505070004

Unavailable

28

SUPPORT SHAFT - Call your local BRP dealership

605352875

$29.20

29

RH Plate Locking

605448861

$17.66

29

LH Plate Locking

605448862

$18.43

30

CIRCLIP - Call your local BRP dealership

371910400

Unavailable

31

Cap

572091300

$8.97

32

DAMPER - Call your local BRP dealership

570062200

Unavailable

33

Socket head screw M12 x 55

40371

Unavailable

34

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

35

SOCKET HEAD SCREW M12 X 60 - Call your local BRP dealership

40306

$3.85

36

Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership

40837

$2.60

37

Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership

40136

$5.40

38

WASHER - Call your local BRP dealership

503146700

$4.42

39

Elastic stop nut. M10

33012

Unavailable

40

Cup | Package Hunter

705007171

$6.18

41

Lock washer A8

20014

Unavailable

42

Socket head screw M8 x 20

40810

Unavailable

43

PLATE - Call your local BRP dealership

605353972

$19.20

44

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

45

MIDDLE PLATE - Call your local BRP dealership

605450900

$15.06

46

Shock This part replaces M23183.

23183

$238.43

47

SPRING - Call your local BRP dealership

25067

$60.74

48

Spring Seat

230076

Unavailable

49

Adjusting Cam

230078

$7.31

50

UPPER ARM ASSY - Call your local BRP dealership

605350022

Unavailable

51

LOWER ARM - Call your local BRP dealership

605252224

$136.12

52

Swing Arm Weld RH

605251768

$267.66

52

SWING ARM WELD LH B - Call your local BRP dealership

605251767

$267.66
