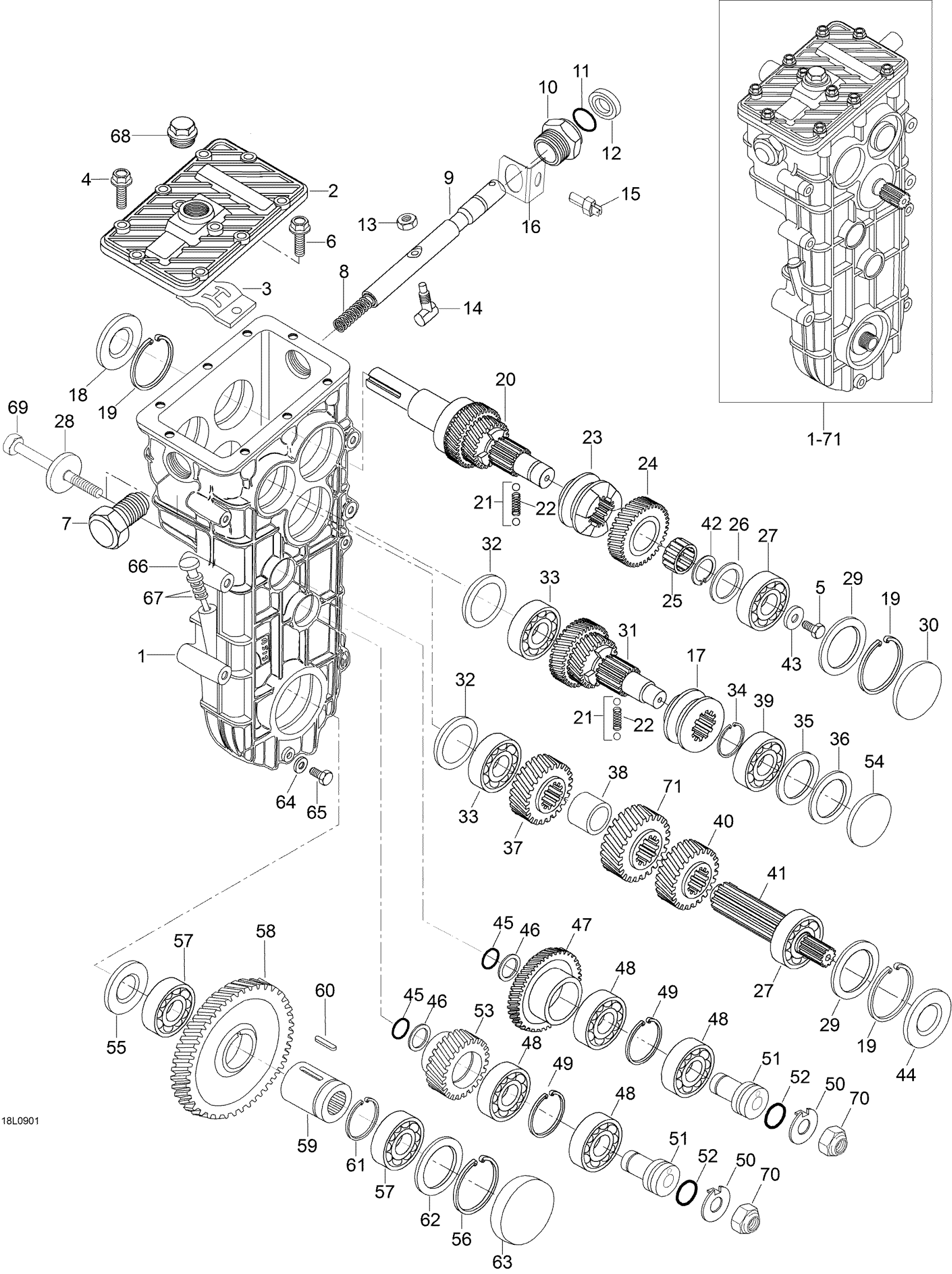

Ski-Doo Skandic SUV 600 Europe, 2009 Transmission _18L0901 Diagram

#

Description
Price

-

TRANSMISSION ASS'Y - Call your local BRP dealership

605612002

$2,979.99

1

HOUSING - Call your local BRP dealership This part replaces M875156138.

875156138

$1,373.82

2

Lock - Call your local BRP dealership

875156043

Unavailable

3

H-SCHEME - Call your local BRP dealership This part replaces M875156111.

875156111

Unavailable

4

Screw 80 x 25 - Call your local BRP dealership This part replaces M537001402.

537001402

Unavailable

5

Hex. screw

528801382

Unavailable

6

Hex. screw M8 x 16

534801362

Unavailable

7

SLEEVE - Call your local BRP dealership This part replaces M875156076.

875156076

$32.28

8

Spring This part replaces M875156078.

875156078

$102.28

9

Shaft - Call your local BRP dealership This part replaces M875156072.

875156072

Unavailable

10

SLEEVE - Call your local BRP dealership This part replaces M875156077.

875156077

Unavailable

11

O-ring This part replaces M614601523.

614601523

$10.52

12

Oil seal - Call your local BRP dealership This part replaces M614102031.

614102031

Unavailable

13

NUT M10 - Call your local BRP dealership This part replaces M510611002.

510611002

Unavailable

14

Pin - Call your local BRP dealership This part replaces M875156073.

875156073

Unavailable

15

Switch - Call your local BRP dealership This part replaces M654100225.

654100225

$103.82

16

SHIM PLATE - Call your local BRP dealership

617391218

$12.28

17

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

18

Oil seal This part replaces M614103562.

614103562

$53.99

19

CIRCLIP - Call your local BRP dealership This part replaces M617330062.

617330062

Unavailable

20

COUNTER SHAFT - Call your local BRP dealership | Includes 11 to 12 This part replaces M875156063.

875156063

$1,387.66

21

Ball This part replaces M616810064.

616810064

$25.35

22

Spring - Call your local BRP dealership This part replaces M875156105.

875156105

$10.06

23

Clutch wheel (Two side) - Call your local BRP dealership This part replaces M875156005.

875156005

Unavailable

24

SPROCKET (29 TOOTH) - Call your local BRP dealership

875156135

Unavailable

25

Needle bearing This part replaces M611002529.

611002529

$26.12

26

Washer

616092542

Unavailable

27

BEARING 6305 - Call your local BRP dealership This part replaces M610063050.

610063050

Unavailable

28

WASHER - Call your local BRP dealership

619230002

$10.74

29

Shim 0,3mm - Call your local BRP dealership This part replaces M617395065.

617395065

Unavailable

29

Shim 0.5 mm - Call your local BRP dealership This part replaces M617395067.

617395067

$13.58

30

PLUG - Call your local BRP dealership This part replaces M614100062.

614100062

Unavailable

31

Shaft - Call your local BRP dealership This part replaces M875156068.

875156068

$1,450.74

32

Plug This part replaces M875152953.

875152953

$39.97

33

BEARING 6304 - Call your local BRP dealership This part replaces M610063044.

610063044

Unavailable

34

CIRCLIP - Call your local BRP dealership This part replaces M617450028.

617450028

Unavailable

35

Shim 0,3mm - Call your local BRP dealership

617394252

$9.97

35

Shim 0.5 mm - Call your local BRP dealership This part replaces M617394352.

617394352

Unavailable

36

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

$7.31

37

Wheel Z=34 L.H. - Call your local BRP dealership This part replaces M875156054.

875156054

$503.82

38

Sleeve

875156088

Unavailable

39

Bearing - Call your local BRP dealership This part replaces M6304.

6304

Unavailable

40

GEAR Z=27 - Call your local BRP dealership

875156136

$343.82

41

SHAFT - Call your local BRP dealership This part replaces M875156069.

875156069

$509.20

42

CIRCLIP - Call your local BRP dealership This part replaces M617450025.

617450025

$4.14

43

Washer

875156112

Unavailable

44

Oil seal This part replaces M614102562.

614102562

$50.74

45

O-RING - Call your local BRP dealership This part replaces M614601224.

614601224

Unavailable

46

Washer - Call your local BRP dealership This part replaces M875156328.

875156328

$9.91

47

SPROCKET (28 TOOTH) - Call your local BRP dealership

875156206

$479.20

48

BEARING - Call your local BRP dealership This part replaces M612030303.

612030303

Unavailable

49

Circlip - Call your local BRP dealership This part replaces M617330047.

617330047

$9.51

50

Washer - Call your local BRP dealership This part replaces M875156327.

875156327

$30.74

51

Shaft - Call your local BRP dealership

619230001

$200.74

52

O-ring This part replaces M614602431.

614602431

$10.52

53

Gear Z=31 - Call your local BRP dealership

875156156

Unavailable

54

Plug This part replaces M614100052.

614100052

$27.66

55

Oil seal This part replaces M614102852.

614102852

$25.35

56

Snapring - Call your local BRP dealership This part replaces M617330068.

617330068

$9.71

57

Bearing - Call your local BRP dealership This part replaces M6008.

6008

Unavailable

58

Gear Z=53 - Call your local BRP dealership

875156114

$456.12

59

SHAFT - Call your local BRP dealership

875156218

Unavailable

60

Key

603345080

Unavailable

61

Circlip

617300040

Unavailable

62

ADJUSTMENT SHIM - Call your local BRP dealership This part replaces M617395568.

617395568

$14.35

63

Plug - Call your local BRP dealership This part replaces M614100068.

614100068

$33.05

64

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

65

HEX. SCREW M8 X 10 - Call your local BRP dealership This part replaces M528801342.

528801342

Unavailable

66

DIPSTICK - Call your local BRP dealership This part replaces M875156278.

875156278

Unavailable

67

O-ring - Call your local BRP dealership This part replaces M614600725.

614600725

$8.69

68

Oilplug - Call your local BRP dealership This part replaces M875156098.

875156098

Unavailable

69

Screw M8x75 - Call your local BRP dealership

529801502

$3.05

70

NUT M10 - Call your local BRP dealership This part replaces M510600802.

510600802

Unavailable

71

Sprocket (29 Tooth)

875156151

Unavailable
