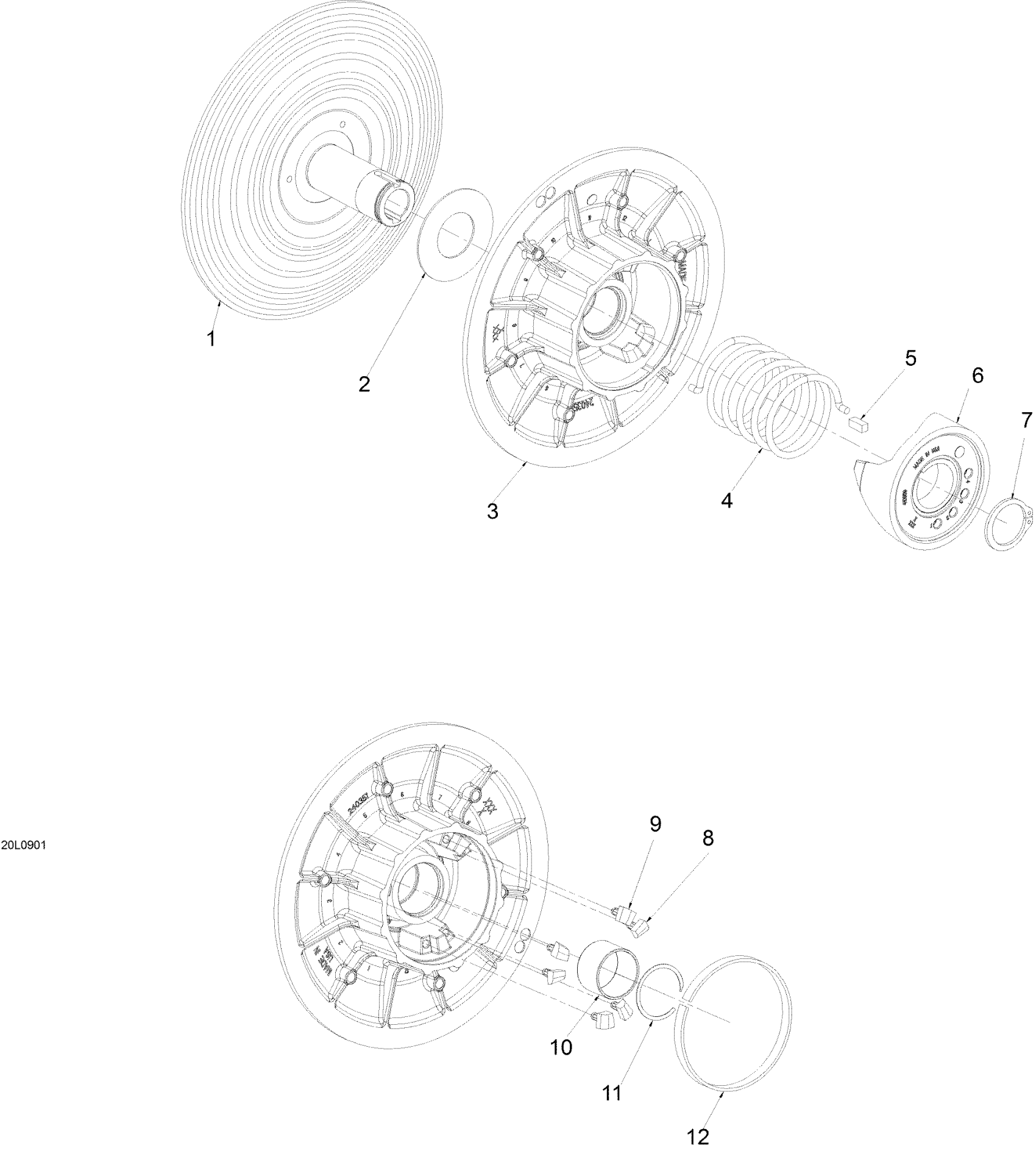

Ski-Doo Skandic SUV 600 Europe, 2009 Driven Pulley _20L0901 Diagram

#

Description

Price

1

FIXED FLANGE - Call your local BRP dealership

619100024

$374.58

2

STOPPER WASHER - Call your local BRP dealership

504099600

$4.86

3

Sliding Flange Ass'y

619100026

$410.74

4

Spring

619100037

Unavailable

5

KEY - Call your local BRP dealership

619100028

$5.40

6

CAM 35/30 DEGR. - Call your local BRP dealership

619100036

$166.89

7

CIRCLIP - Call your local BRP dealership

619100027

$11.52

8

Front Cam Slider Shoe, Black This part replaces 619100040.

417126374

$3.28

9

REAR CAM SLIDER SHOE, RED - Call your local BRP dealership

417126373

Unavailable

10

Bearing, plain - Call your local BRP dealership

619100032

Unavailable

11

CIRCLIP - Call your local BRP dealership This part replaces 619100033.

371911200

Unavailable

12

Bearing, plain - Call your local BRP dealership

619100034

Unavailable
