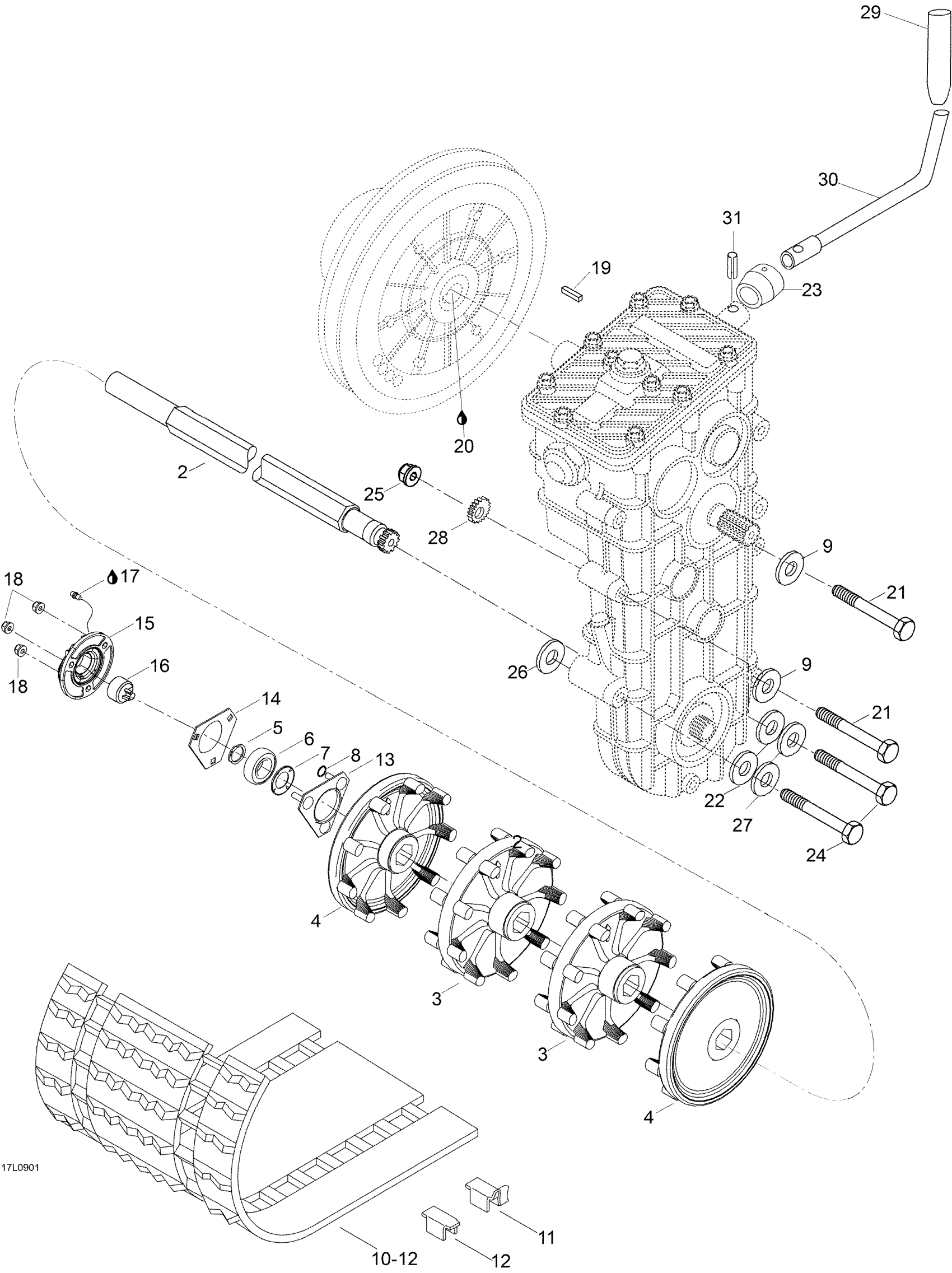

Ski-Doo Skandic SUV 600 Europe, 2009 Drive Axle And Track _17L0901 Diagram

#

Description
Price

1

Drive axle ass'y | Includes 1 to 4

605253105

Unavailable

2

DRIVE AXLE - Call your local BRP dealership

605253104

$392.28

3

SPROCKET - Call your local BRP dealership

414931800

$63.82

4

HALF SPROCKET - Call your local BRP dealership

415067400

$43.99

5

CIRCLIP - Call your local BRP dealership

371910200

Unavailable

6

Ball Bearing

293350060

$38.49

7

BEARING PROTECTOR - Call your local BRP dealership

501017400

Unavailable

8

O-Ring

414484400

$7.31

9

Flat Washer 8 mm

234081410

$0.69

10

Track ass'y | Includes 10 to 12 This part replaces M13070.

13070

$1,249.99

11

Guide

5318323

Unavailable

12

Slide guide

5318322

Unavailable

13

BEARING HOUSING - Call your local BRP dealership

504151860

$9.71

14

FLANGE - Call your local BRP dealership

501025000

Unavailable

15

Flange, Speedo

504152173

Unavailable

16

MAGNETIC ADAPTOR - Call your local BRP dealership

504152040

Unavailable

17

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.14

19

KEY - Call your local BRP dealership This part replaces M418763.

619690074

$6.52

20

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

21

Hex. Screw M8 X 90

207089044

$2.82

22

Flat Washer 8 mm

234082410

$1.11

23

SLEEVE - Call your local BRP dealership

5446699

Unavailable

24

HEX, SCREW M8 X 80 - Call your local BRP dealership

40012

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

$1.14

26

M8 Washer This part replaces M20077.

20077

$1.48

27

Lock washer A8

20014

Unavailable

28

TOOLS - Call your local BRP dealership

605454017

$4.86

29

Shift button This part replaces M28247.

28247

$29.97

30

SHIFT HANDLE - Call your local BRP dealership

605350153

Unavailable

31

Spring pin 5 x 24(1=10pcs) - Call your local BRP dealership

41008

$1.58
