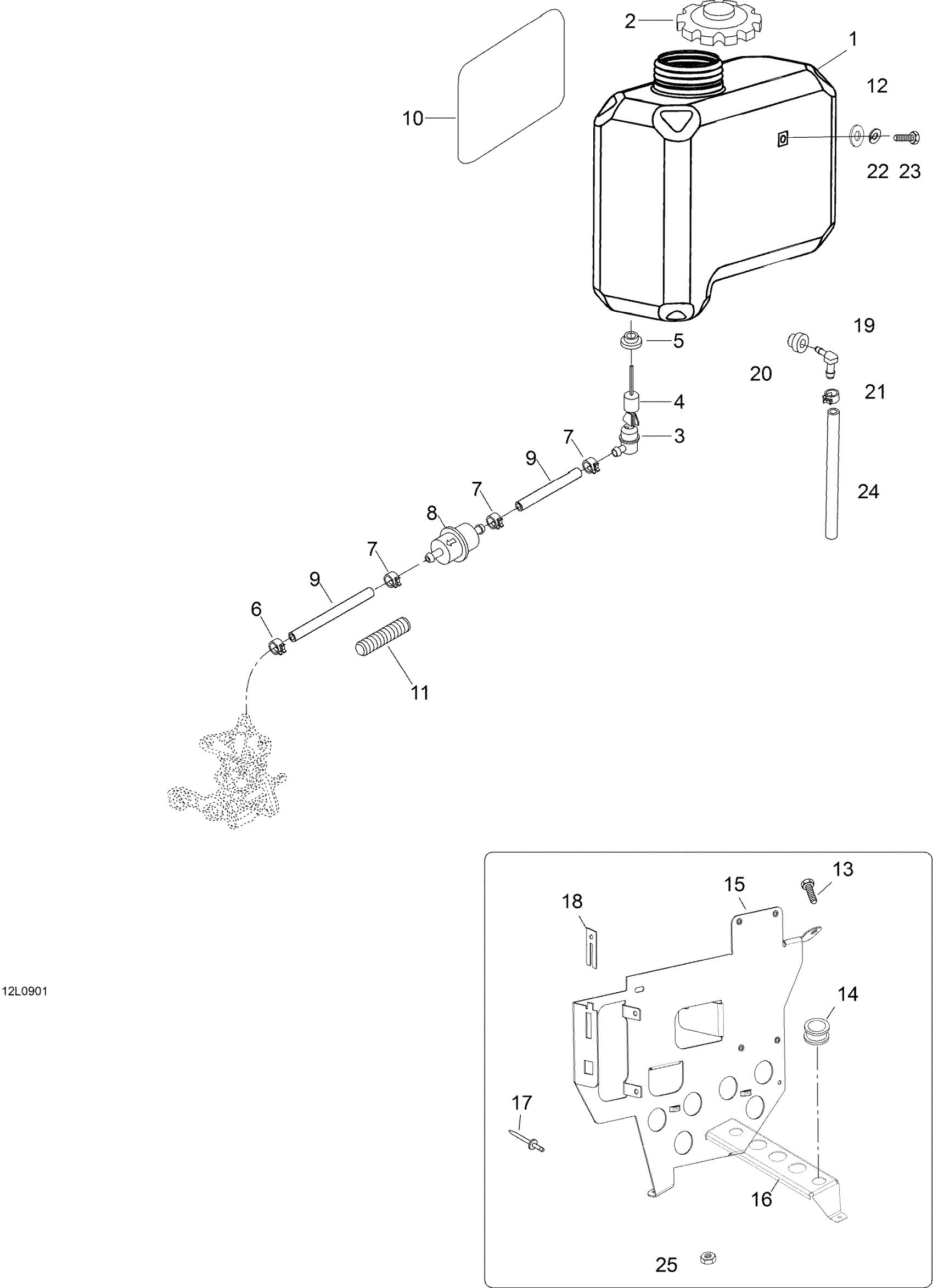

Ski-Doo Skandic SUV 600 Europe, 2009 Oil System _12L0901 Diagram

#

Description
Price

1

OIL TANK - Call your local BRP dealership

605155569

$133.82

2

CAP - Call your local BRP dealership

519000044

$40.74

3

OIL SENSOR - Call your local BRP dealership

605452095

Unavailable

4

Float

414681900

Unavailable

5

Insulating Ring

570023000

$4.62

6

Spring Clamp

414420700

$0.68

7

Spring Clamp

414415200

$0.83

8

Filter

414536500

$3.25

9

Hose

39046

Unavailable

10

AL-cover - Call your local BRP dealership

5443578

Unavailable

11

Tubing

28015

Unavailable

12

Flat Washer 6 mm

234062410

$0.64

13

Screw M6 x 12

40327

Unavailable

14

Grommet

5446766

$12.49

15

RESERVOIR SUPPORT - Call your local BRP dealership

605255412

$79.97

16

AIR INTAKE SILENCER SUPPORT - Call your local BRP dealership

605355414

$24.58

17

Rivet

36108

$1.85

18

Forkplate

5447032

Unavailable

19

Male Connector

414580700

$3.38

20

Grommet

709200285

$8.38

21

Spring Clamp

414554800

$0.83

22

Spring Washer

20052

Unavailable

23

Screw

40114

Unavailable

24

Overflow hose

39038

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable
