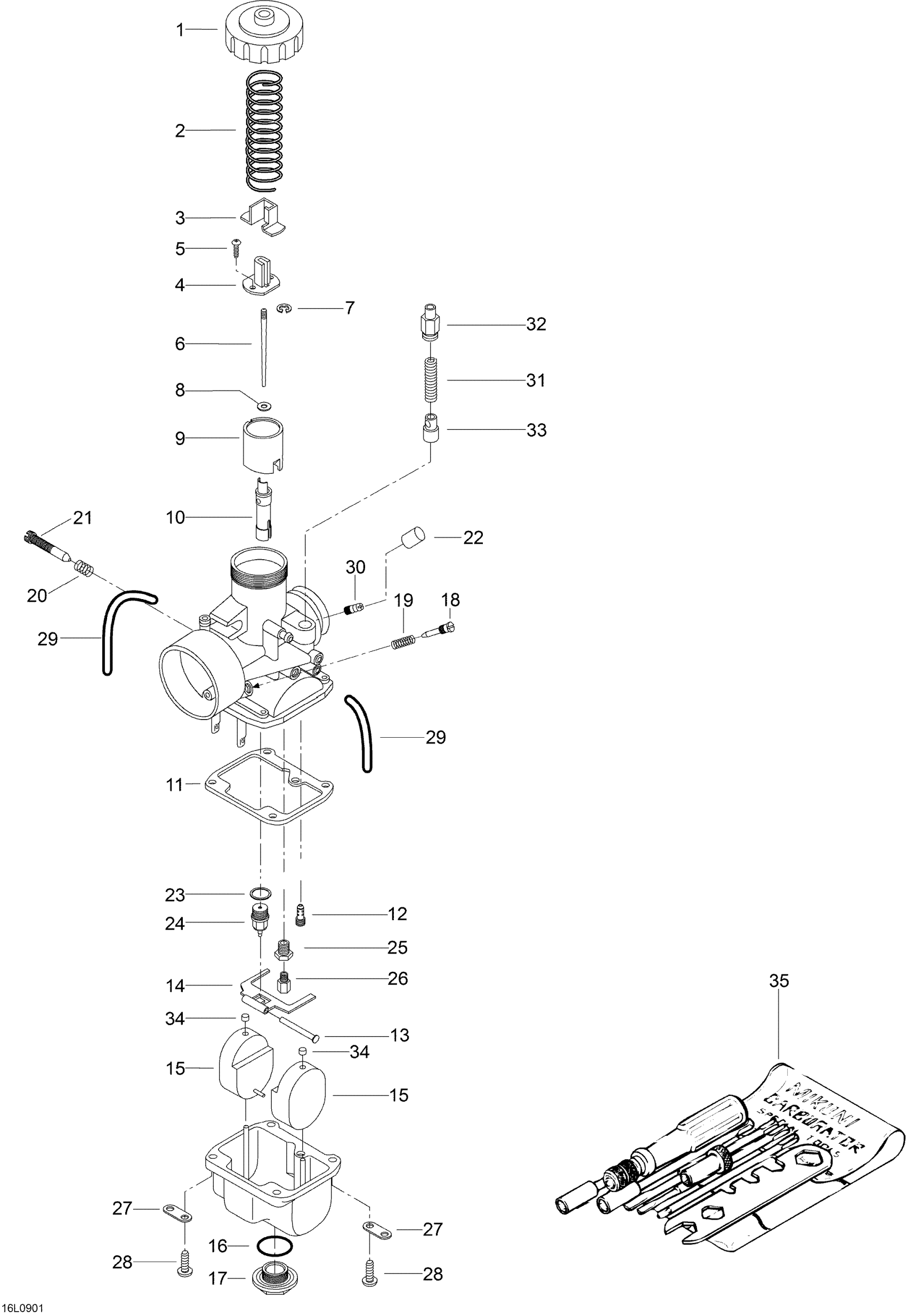

Ski-Doo Skandic SUV 600 Europe, 2009 Carburetor _16L0901 Diagram

#

Description
Price

1

COVER - Call your local BRP dealership

404105100

Unavailable

2

Spring

404154800

$24.99

3

Cover

404122100

$19.49

4

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

5

Screw With Washer

404121300

$4.29

6

NEEDLE JET J8-6DGL24 - Call your local BRP dealership

404162064

Unavailable

7

E-Ring

404152400

$7.39

8

Packing

404117000

$3.39

9

Piston Valve 2.5

404128400

$127.49

10

NEEDLE JET NJ 480 P-9 - Call your local BRP dealership

404161805

Unavailable

11

GASKET - Call your local BRP dealership

404104700

Unavailable

12

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

13

Lever Pin

404103300

$6.39

14

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

15

FLOAT - Call your local BRP dealership

404105400

Unavailable

16

O-RING - Call your local BRP dealership

404101500

Unavailable

17

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

18

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

19

SPRING - Call your local BRP dealership

404139800

Unavailable

20

Spring

404101700

$4.29

21

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

22

Cap

19057

Unavailable

23

Seat Washer

404101600

$3.39

24

Needle Valve 1.5

404147400

$43.99

25

Guide Screw

404105500

$32.99

26

Main Jet 330

404101400

$8.49

27

PLATE - Call your local BRP dealership

404103000

Unavailable

28

Screw With Lock Washer

404102000

$3.29

29

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

30

Nipple

404153400

$12.49

31

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

32

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

33

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

34

Cap

404105800

$6.49

35

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
