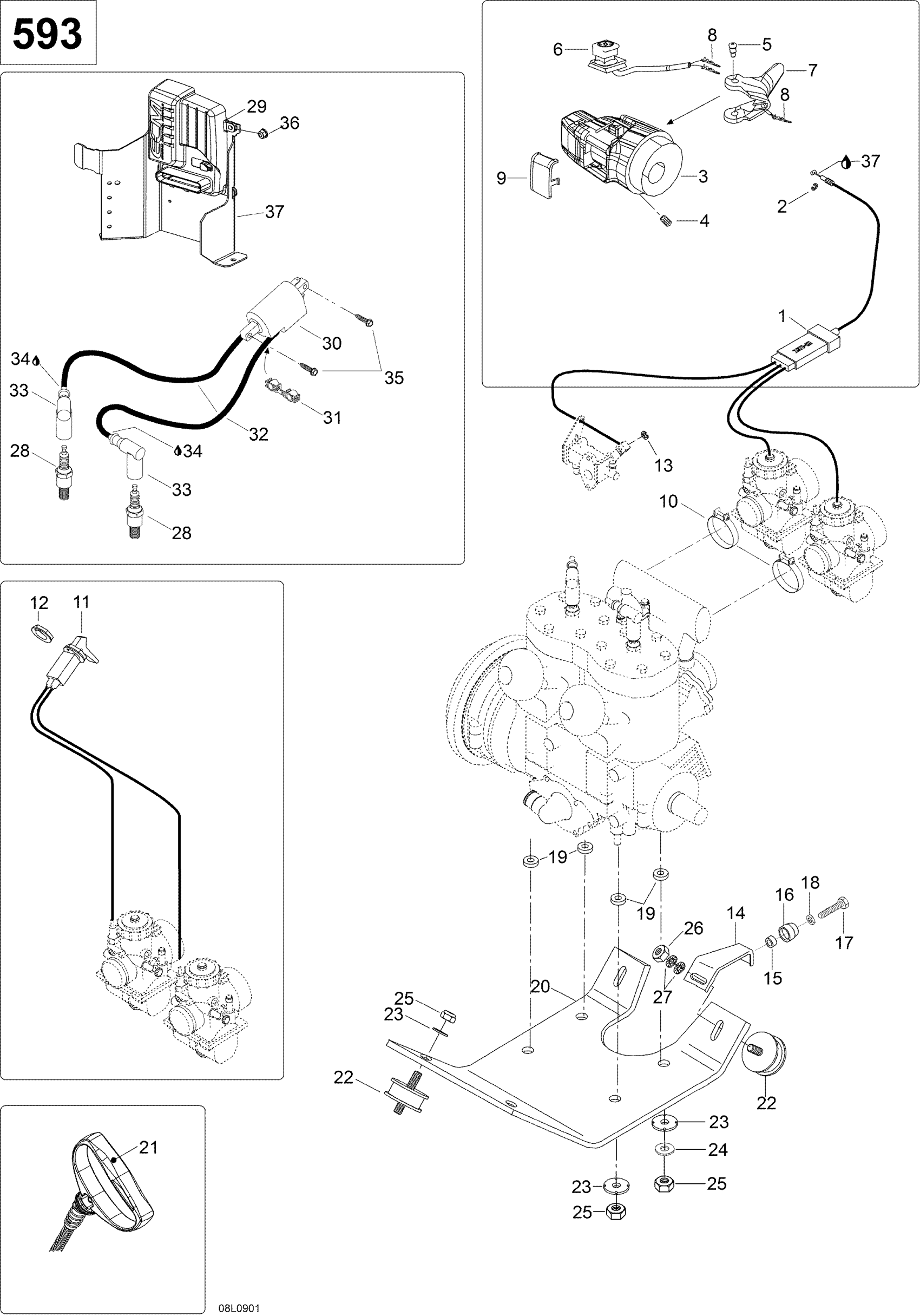

Ski-Doo Skandic SUV 600 Europe, 2009 Engine And Engine Support 593 _08L0901 Diagram

#

Description
Price

1

Throttle cable

5246328

Unavailable

2

Circlip 5 DIN 6799(1=10pcs) - Call your local BRP dealership

31038

$5.40

3

THROTTLE HOUSING - Call your local BRP dealership

605355737

$46.12

4

Socket Set Screw M8 X 10

414440800

$4.00

5

Flange Screw

732601143

$4.02

6

Kill Switch

515175410

Unavailable

7

Handle Ass'y

512059348

$88.43

8

CONNECTOR - Call your local BRP dealership

605642628

$6.89

9

Switch Cover

572100901

$14.54

10

COLLAR - Call your local BRP dealership

414532700

Unavailable

11

Choke This part replaces M535482.

535482

$69.20

12

NUT-PLASTIC - Call your local BRP dealership

512059364

$6.66

13

Circlip

414753500

$0.59

14

Support

605352447

Unavailable

15

RUBBER GROMMET - Call your local BRP dealership

2846014

$13.29

16

SLEEVE - Call your local BRP dealership

605449240

$29.20

17

Hex Screw M8x40 DIN933 m8.8Zne(1=10pcs) - Call your local BRP dealership

40121

$3.08

18

Nut M8

33003

Unavailable

19

Sleeve

5446347

Unavailable

20

Engine Support

605248305

Unavailable

21

Starter Grip

572084400

$14.54

22

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

23

Lock Washer

512056700

$3.11

24

Lock Washer

512056700

$3.11

25

Elastic stop nut. M10

33012

Unavailable

26

Hex. Nut M10 X 1.5

232006414

$1.11

27

Lock Washer D10

20068

$1.97

28

Spark Plug NGK BR9ECS-5

512059552

$9.70

29

Calibration Module

605155103

Unavailable

30

Ignition Coil

512059968

$49.97

31

Plastic Clip, Spark Plug Wire

410914600

$4.62

32

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

Unavailable

32

Cable Ass’y, 375 mm

512059696

$82.99

33

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

34

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

35

Hex. screw M6 x 25

40031

Unavailable

36

Not Available As Spare Part - Friction Washer

Unavailable

37

SUPPORT PLATE, ECU - Call your local BRP dealership

605353805

$36.89
