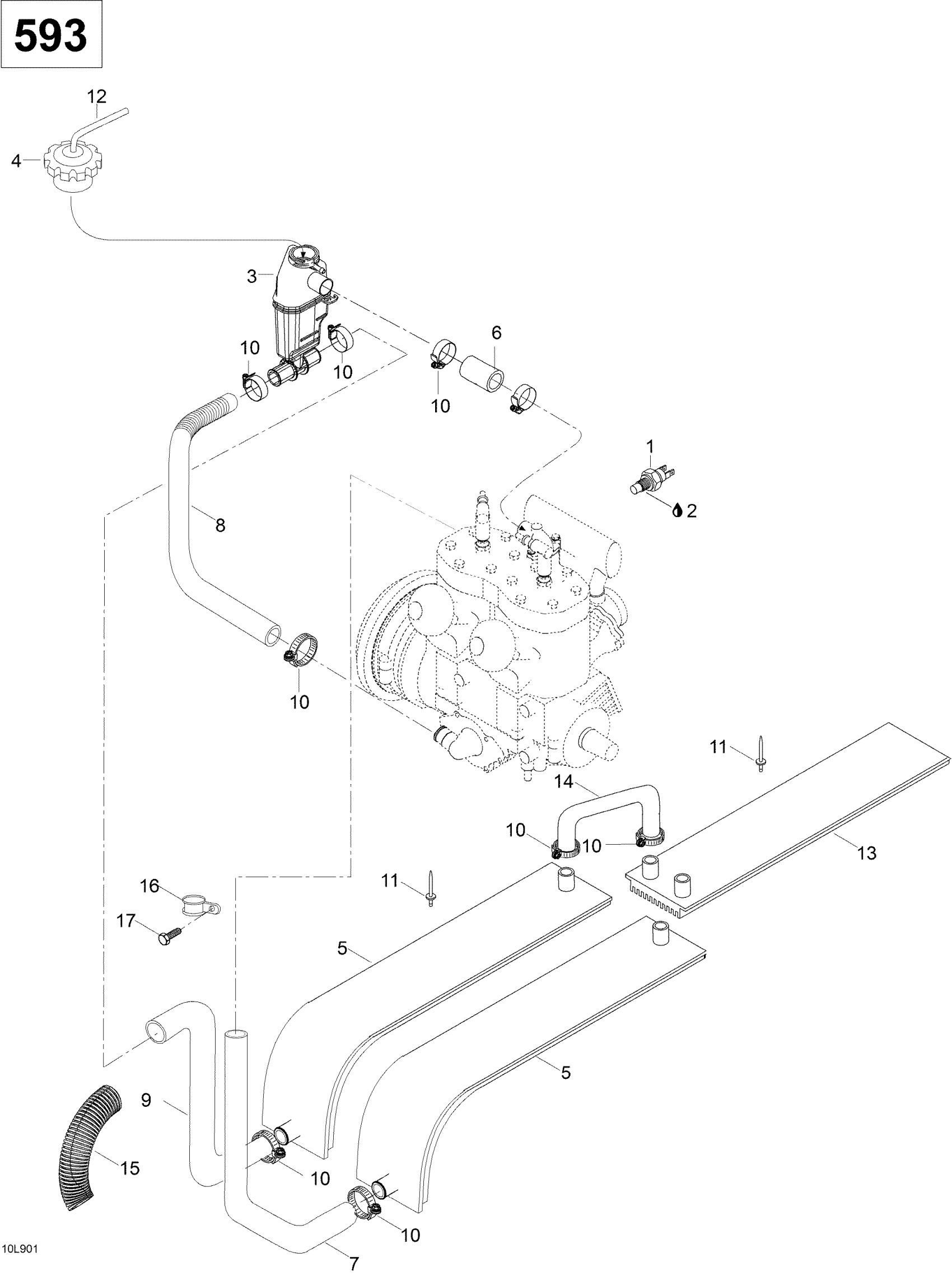

Ski-Doo Skandic SUV 600 Europe, 2009 Cooling System _10L0901 Diagram

#

Description
Price

1

Temperature Sensor This part replaces 515176043.

515177835

$94.58

2

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

3

Tank Coolant | Grand Touring 500. This part replaces 509000133.

509000134

$86.12

4

Pressure Cap

509000187

$27.66

5

RH RADIATOR - Call your local BRP dealership

605151690

$597.66

5

LH RADIATOR - Call your local BRP dealership

605151689

$673.05

6

HOSE - Call your local BRP dealership

605354602

$22.28

7

HOSE - Call your local BRP dealership

605353565

Unavailable

8

HOSE - Call your local BRP dealership

605355768

$49.20

9

HOSE - Call your local BRP dealership

605353567

Unavailable

10

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

11

Rivet

36108

$1.85

12

Overflow hose

39038

Unavailable

13

Radiator, Rear

605351687

Unavailable

14

FRONT RADIATOR HOSE - Call your local BRP dealership

605253904

Unavailable

15

Tubing

28036

Unavailable

16

Clamp With Rubber

27011

Unavailable

17

Screw M6 x 12

40327

Unavailable
